Home >> Buick >> 2000 >> Century V6-3.1L VIN J >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Engine Controls >> Cruise Control Module Input/Output

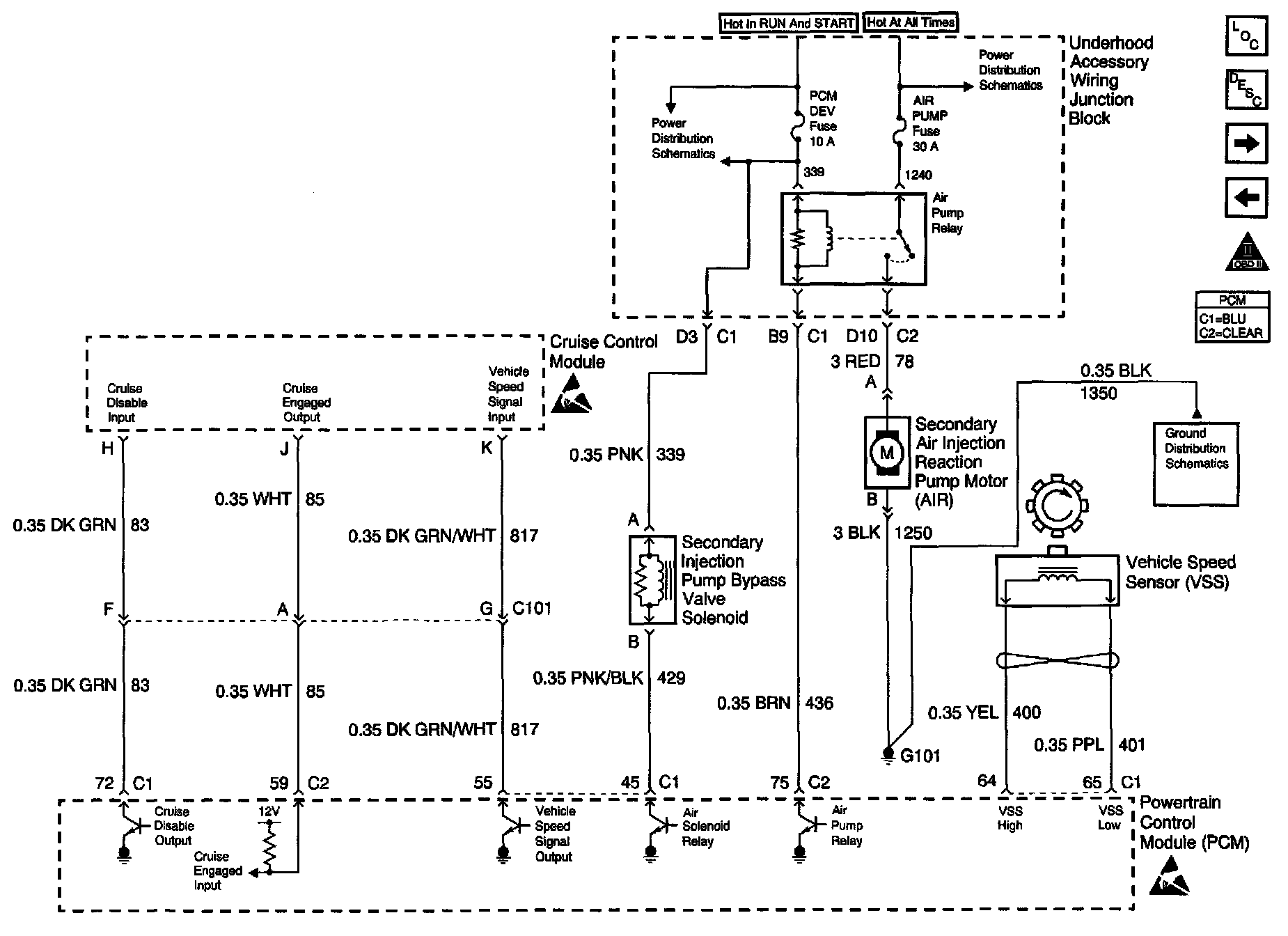

Cruise Control Module Input/Output

Engine Controls Schematics: Cruise Control Module Input/Output:
