Power & Ground Distribution, RAP Relay & Performance Shift SW
Power & Ground Distribution, RAP Relay & Performance Shift SW

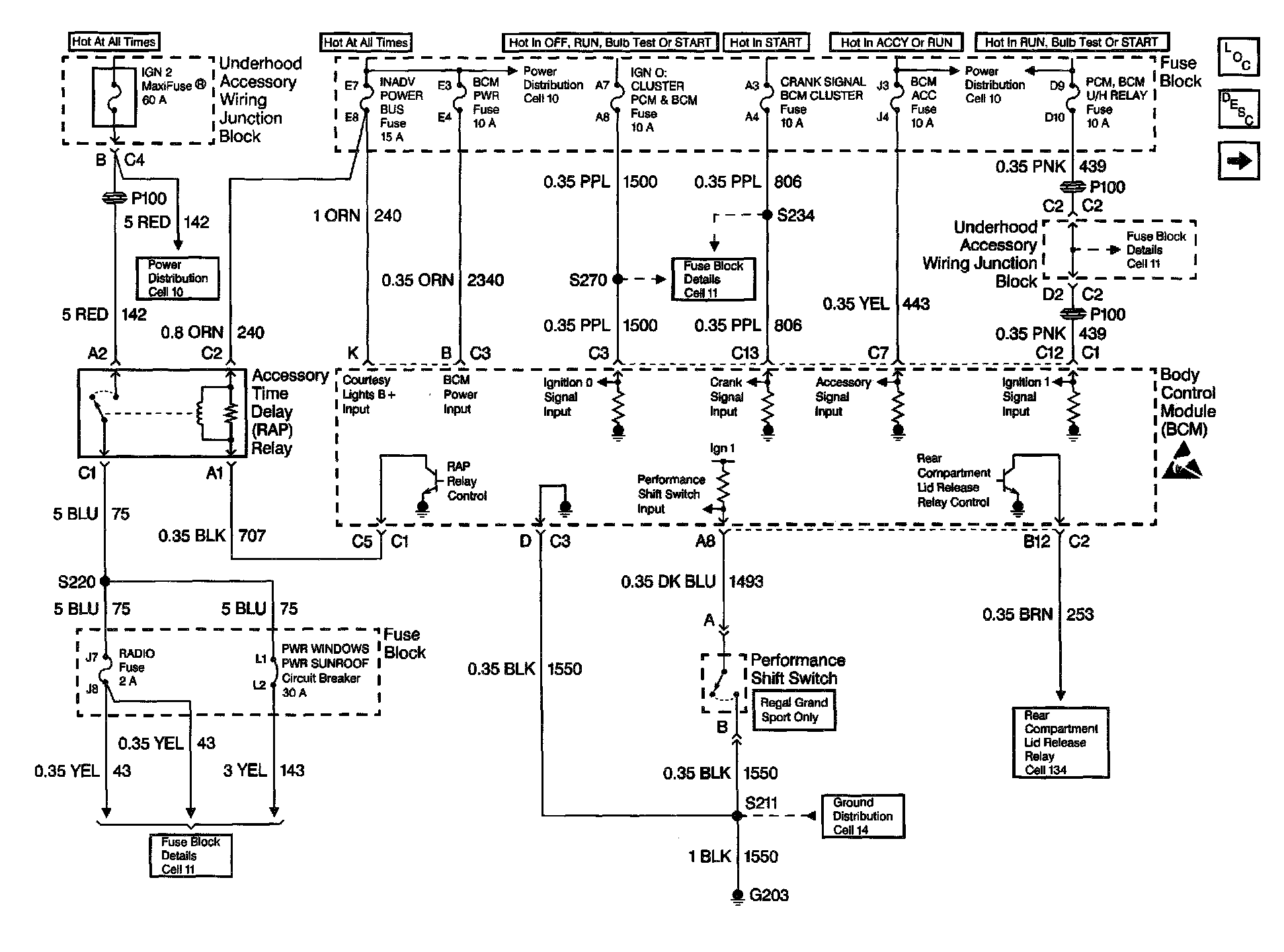

Body Control Module Schematics: Power And Ground Distribution, RAP Relay And Performance Shift Switch:
