Engine

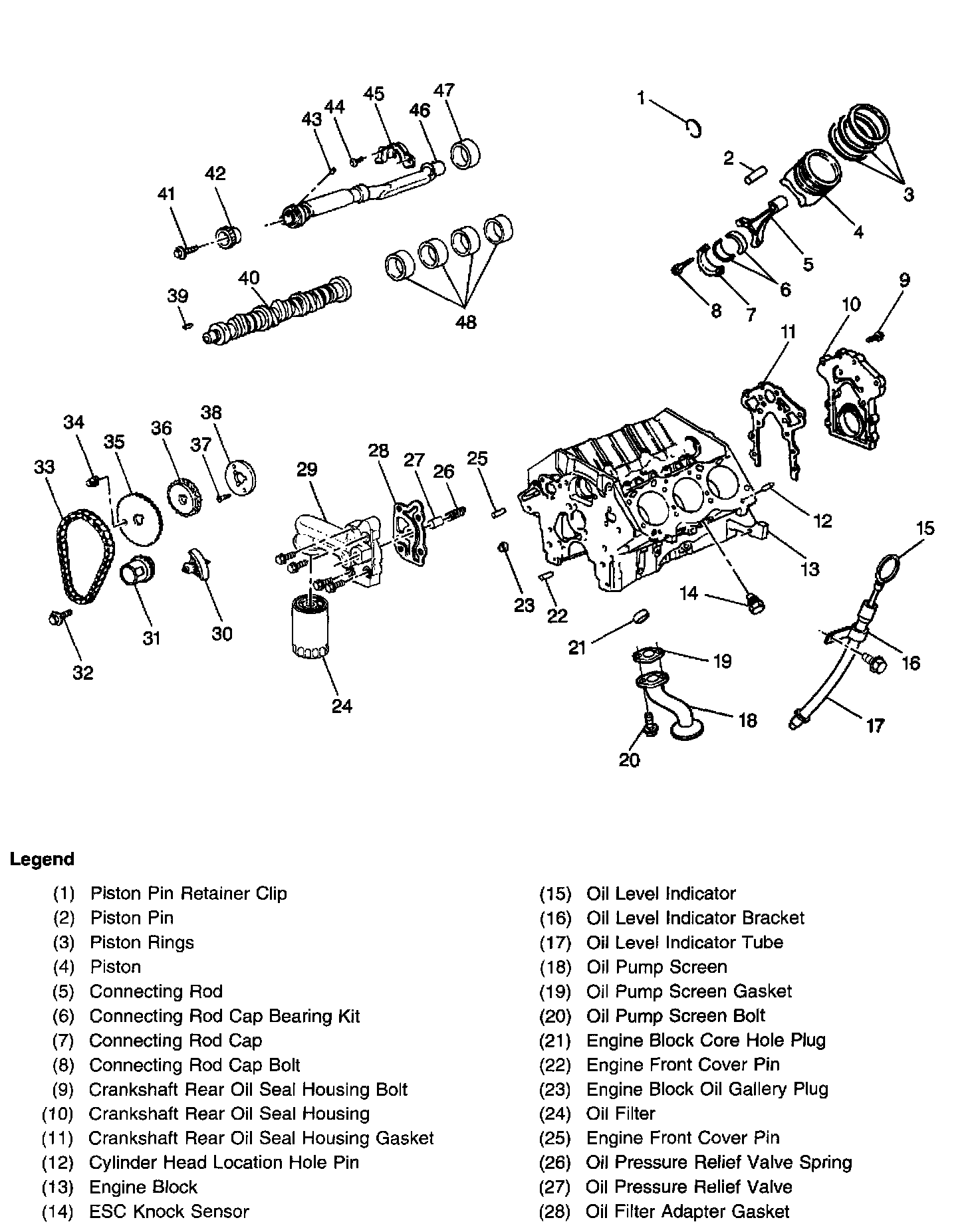

Engine Block and Components

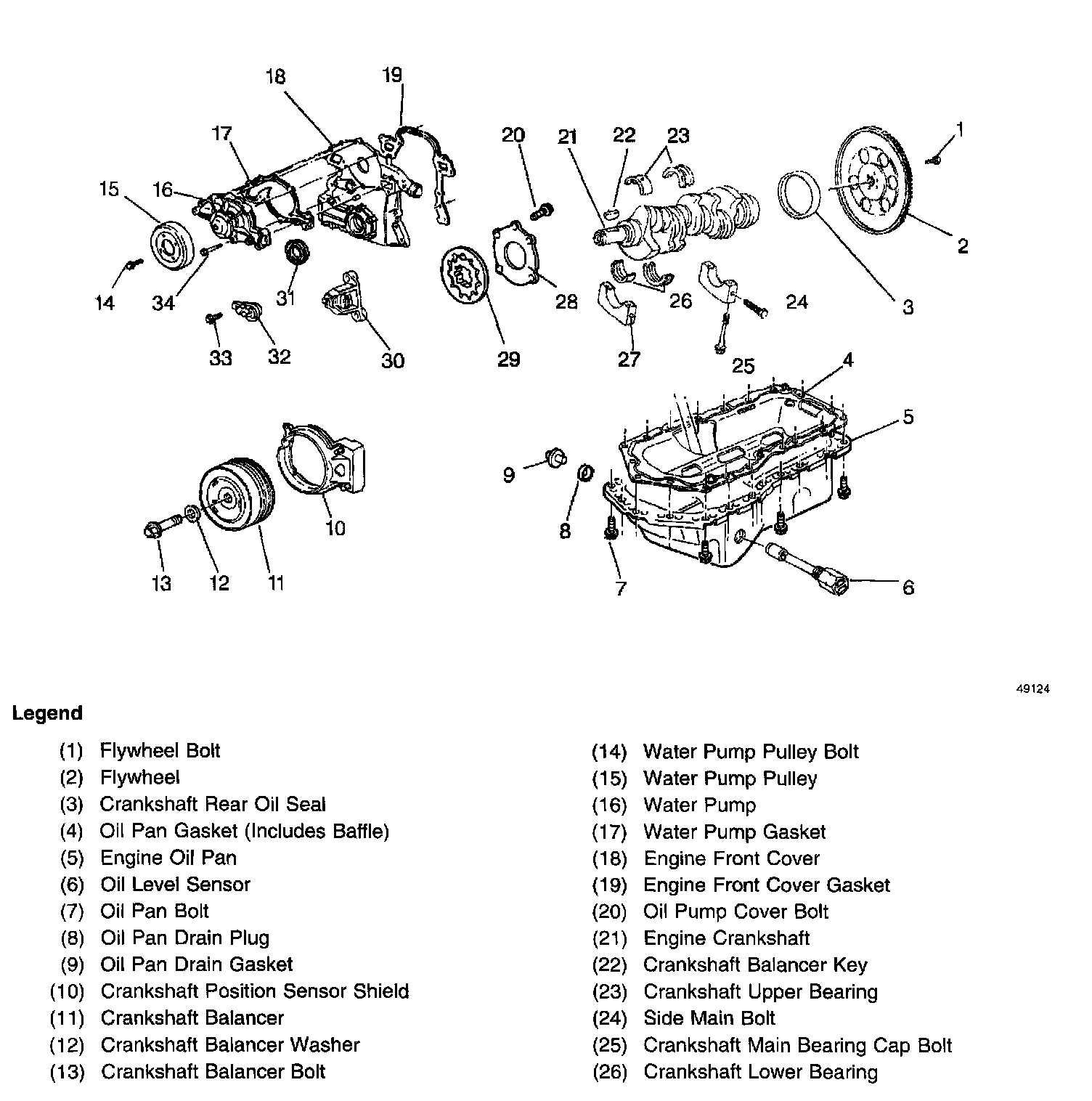

Crankshaft and Components

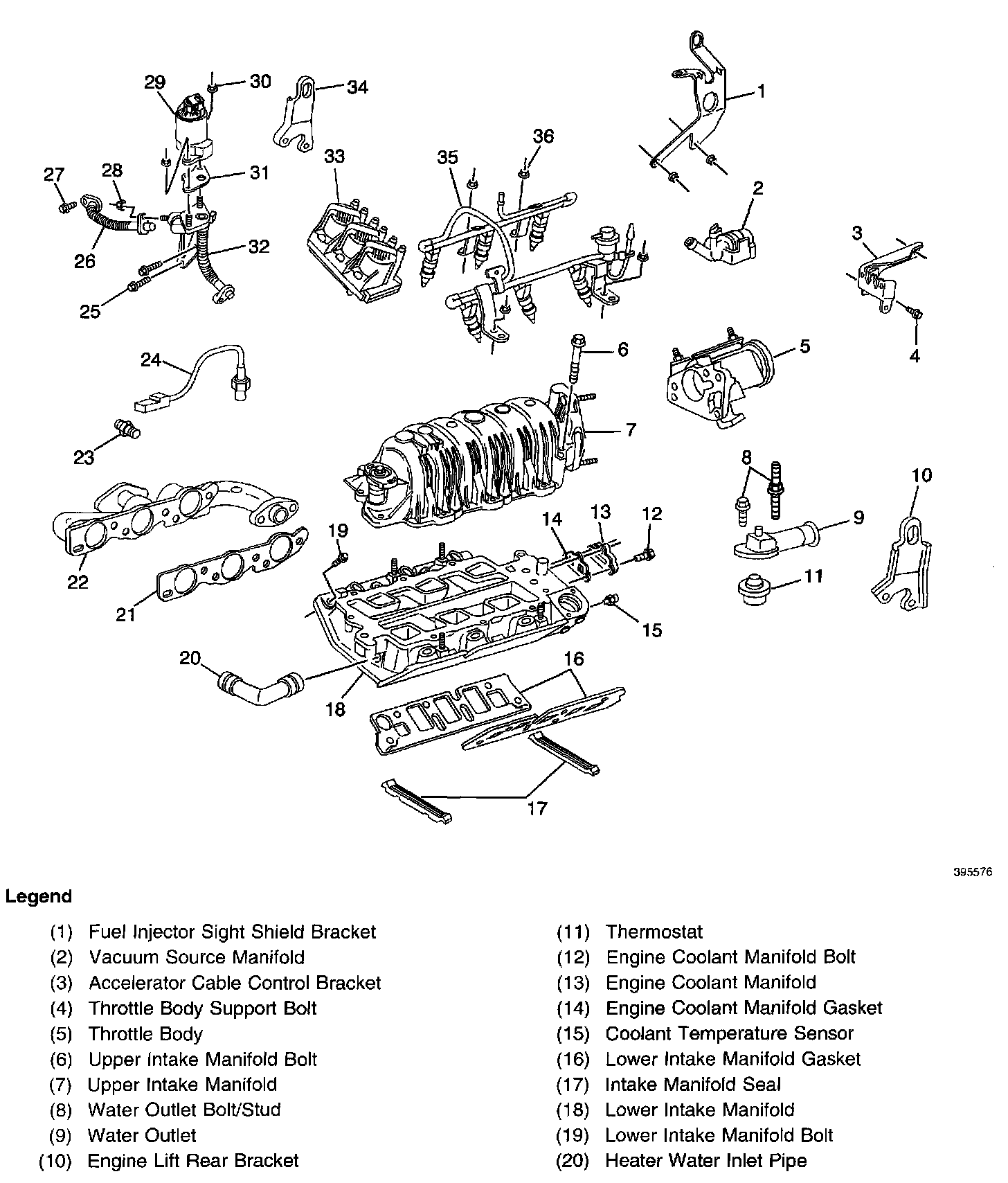

Intake Manifold and Components

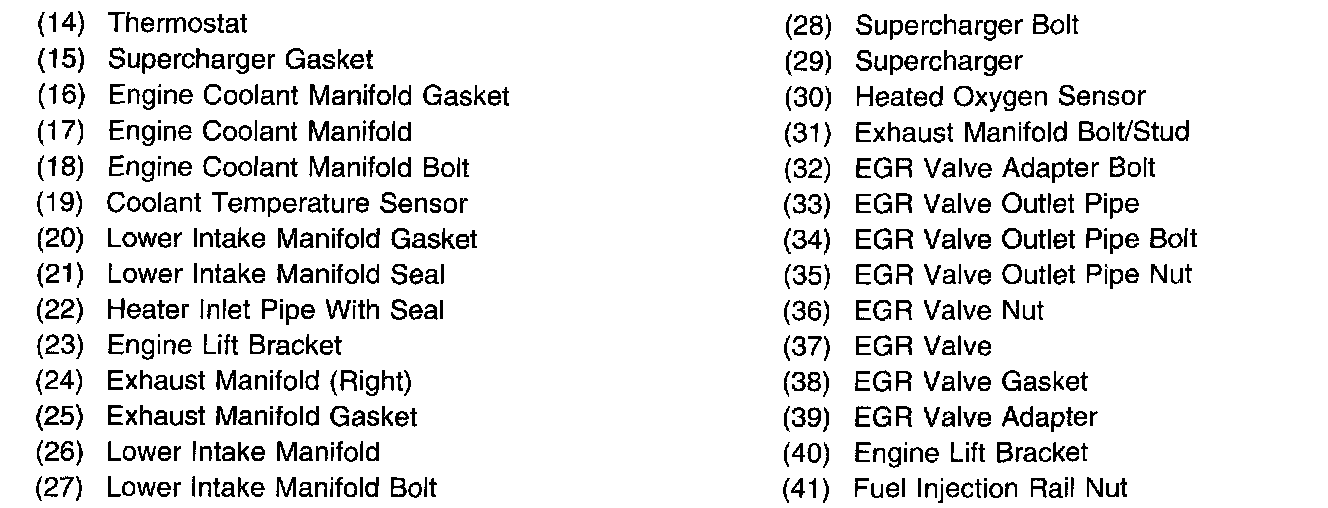

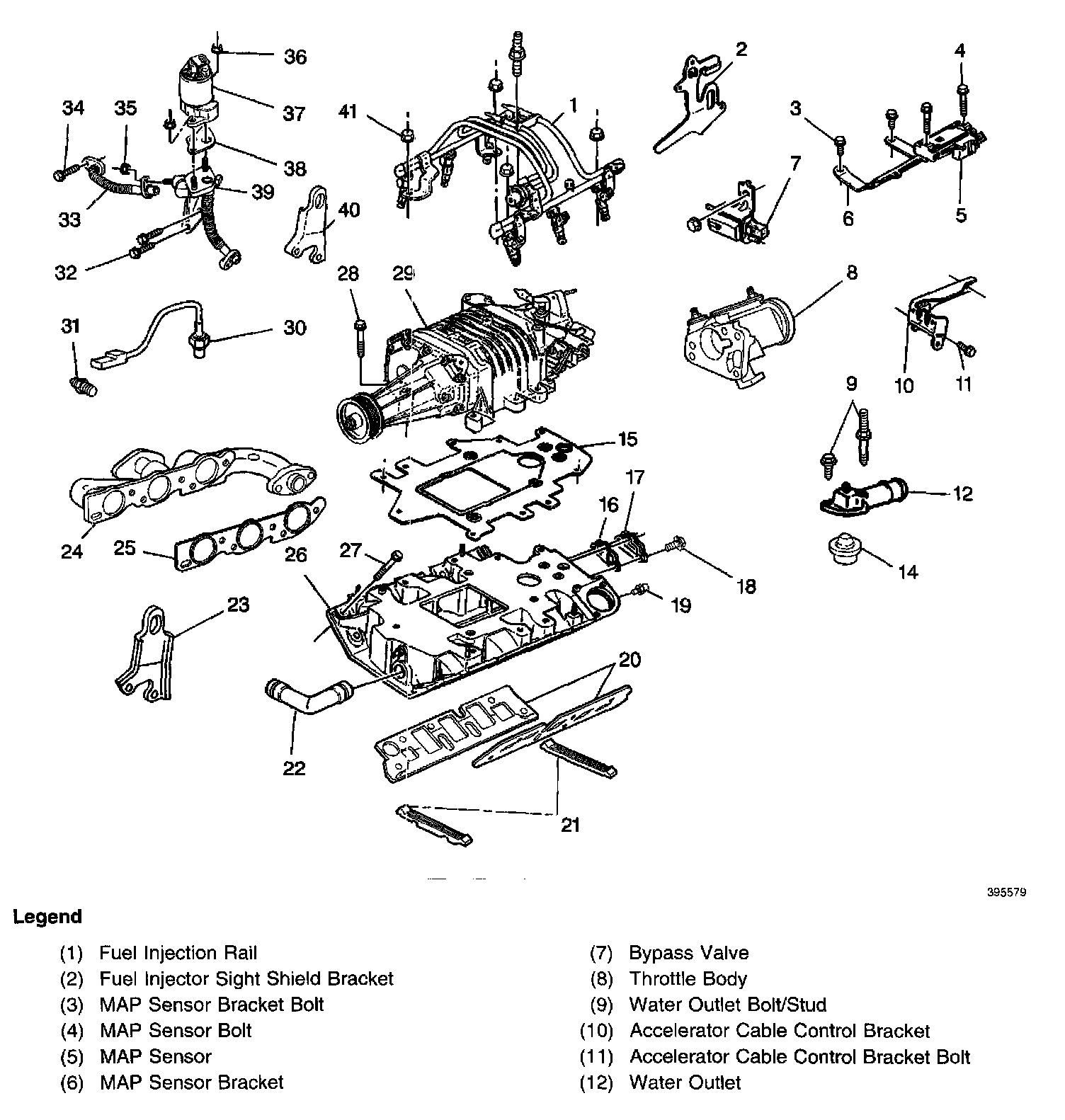

Supercharger and Components VIN 1

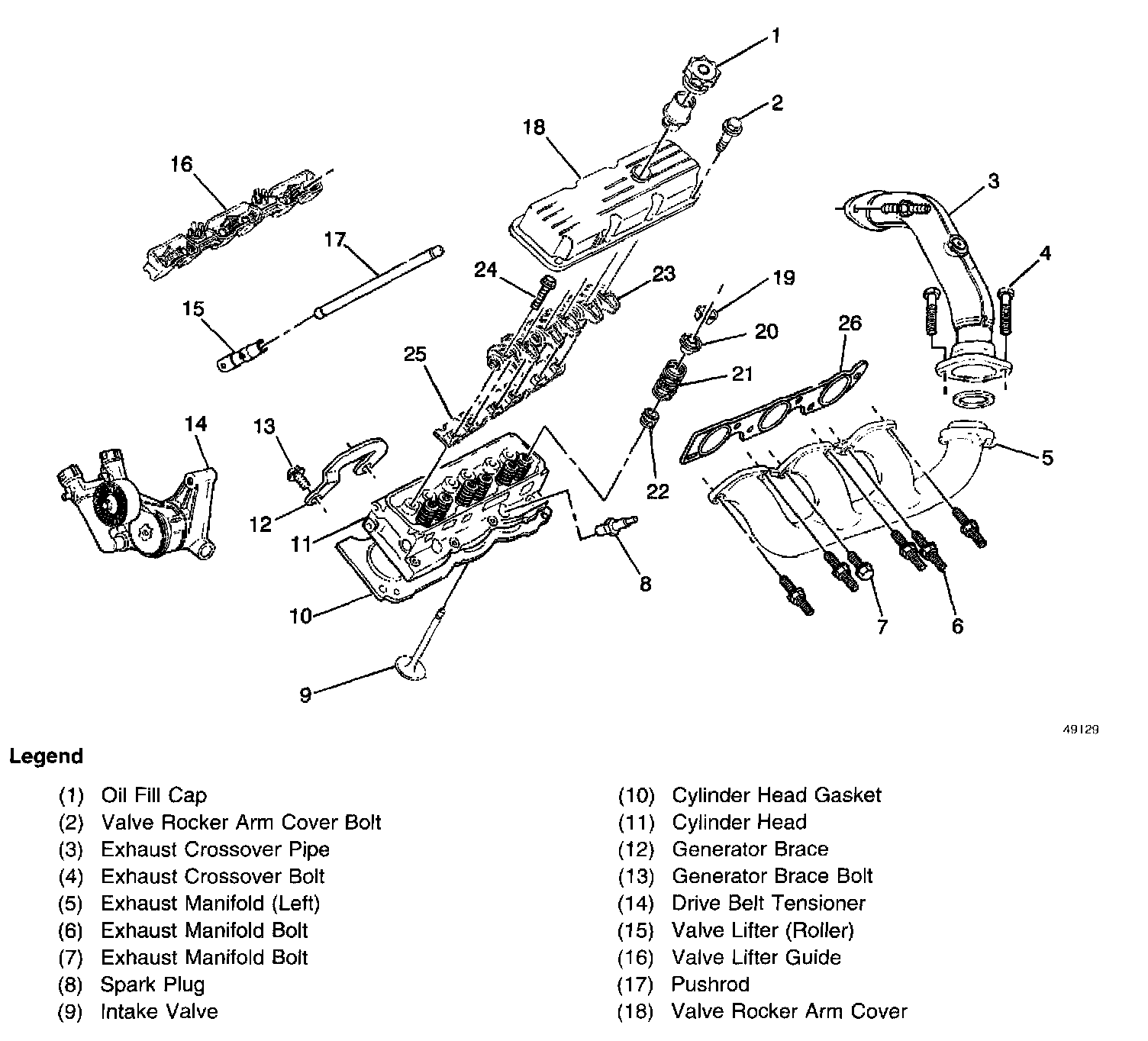

Cylinder Head and Components

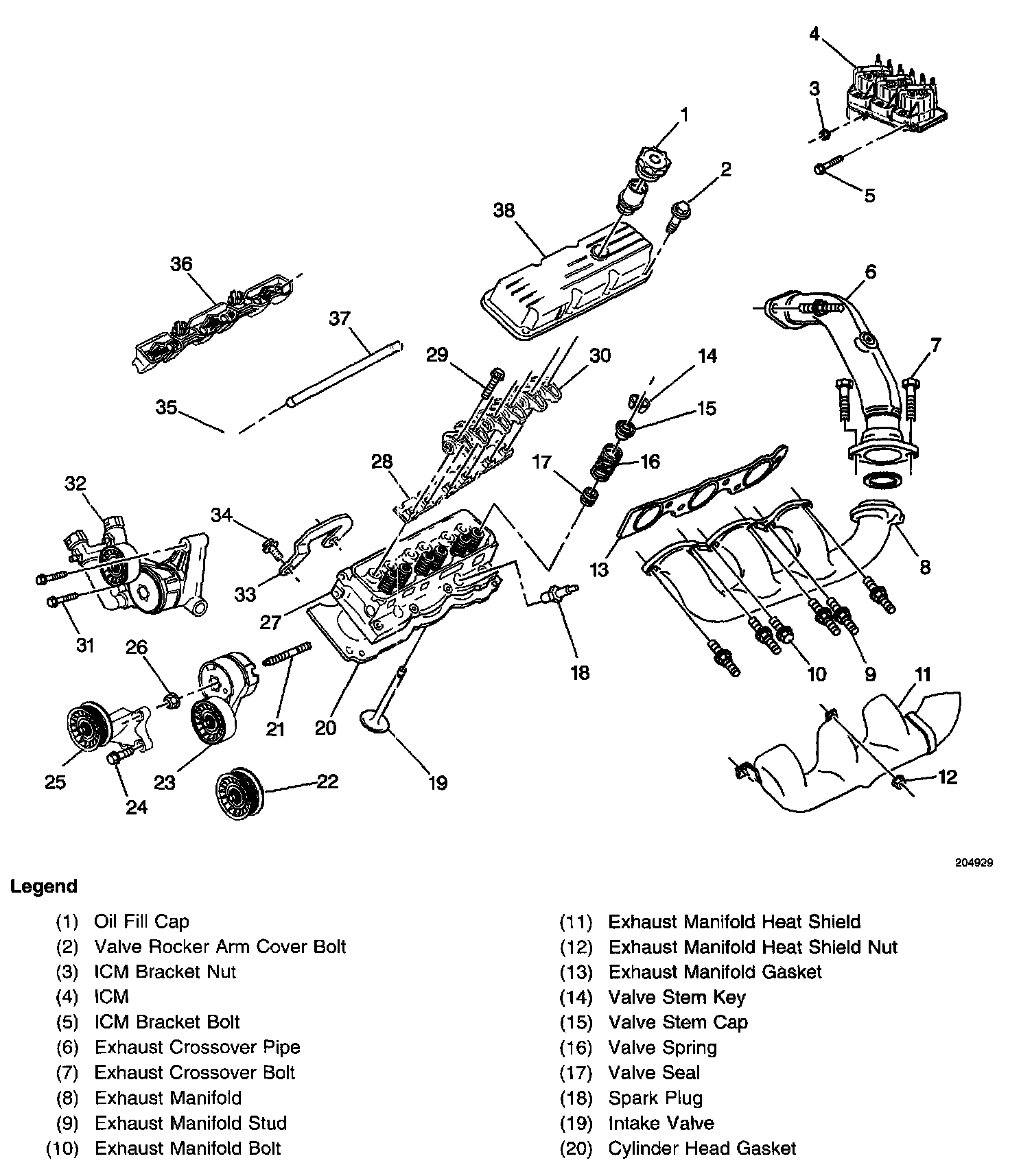

Cylinder Head and Components VIN 1
