Home >> Buick >> 1999 >> Regal V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Components >> Miscellaneous Components >> Radio

Radio

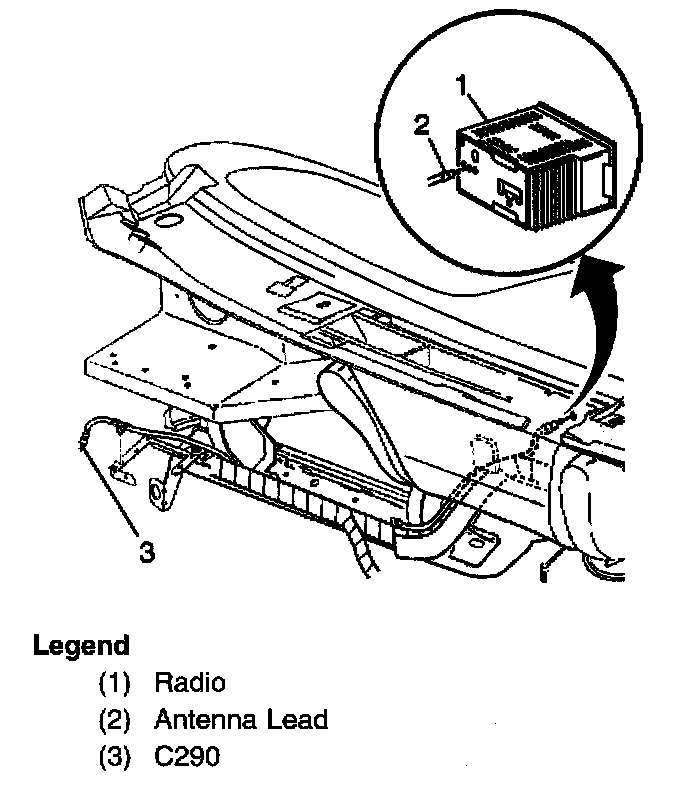

Radio - Center Of Instrument Panel:

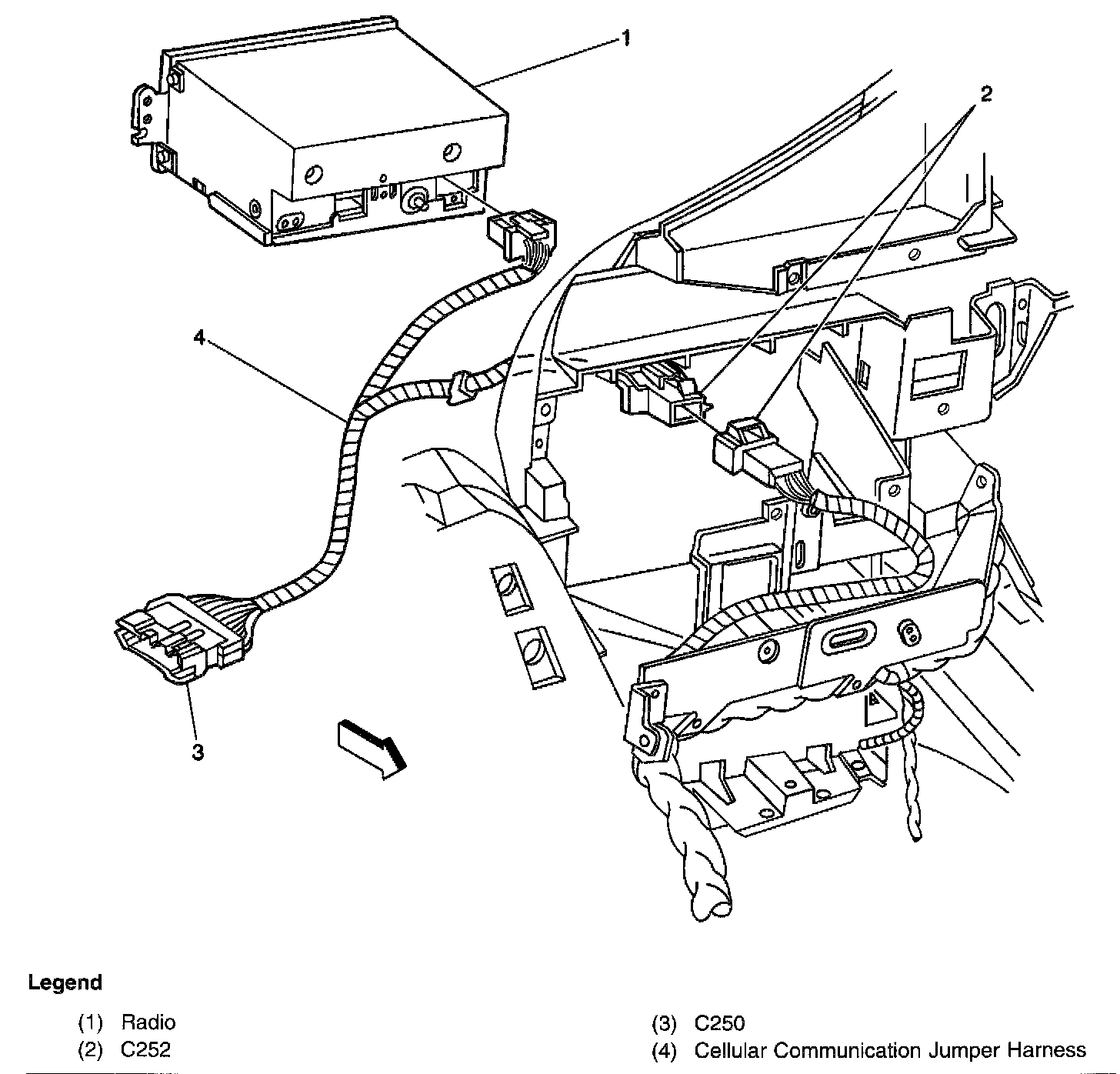

Radio/Cellular Communication:





Center of the IP
