Home >> Buick >> 1998 >> Riviera V6-3.8L VIN K >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Air Flow Meter/Sensor >> Locations

Air Flow Meter/Sensor: Locations

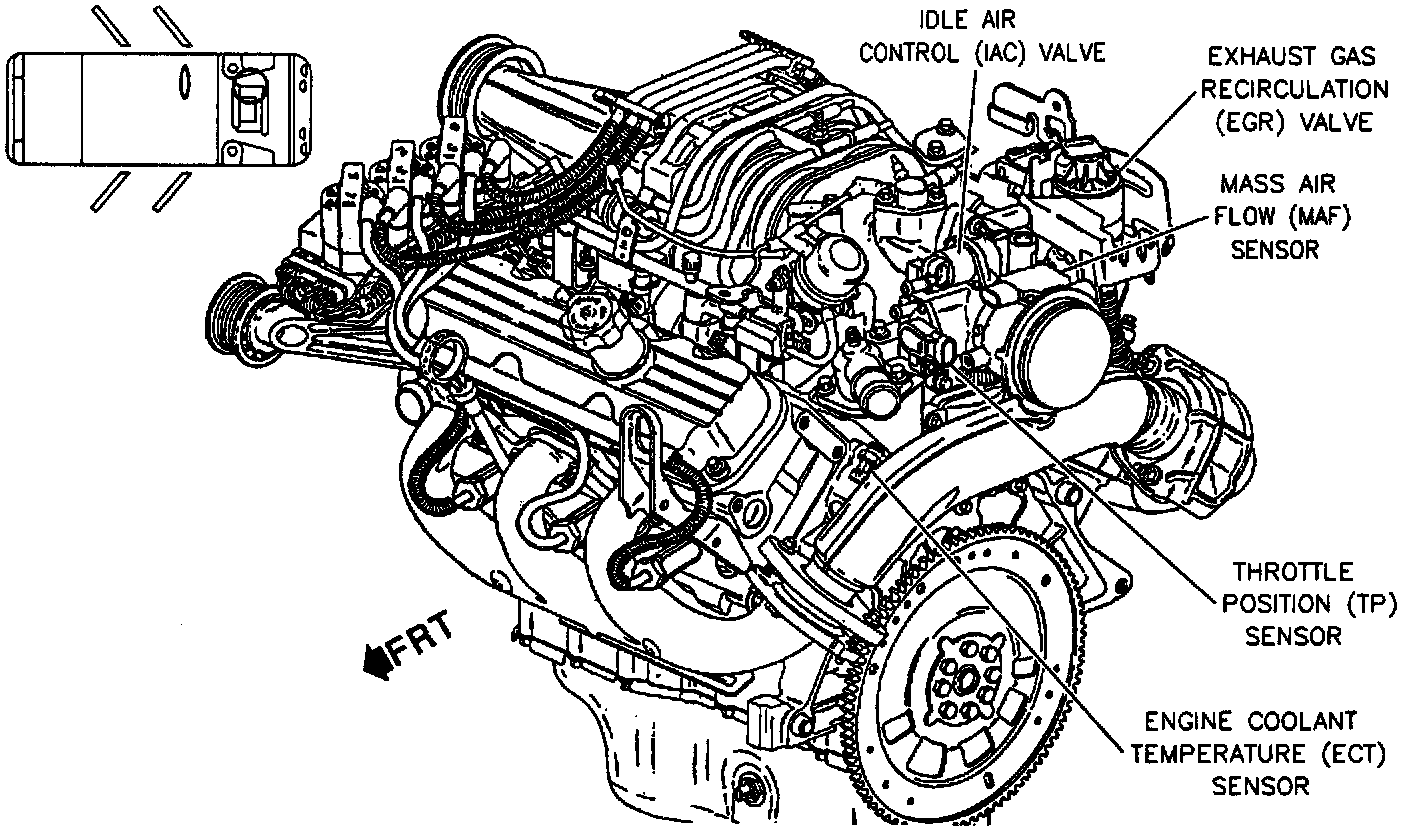

Left Hand Of The Engine:

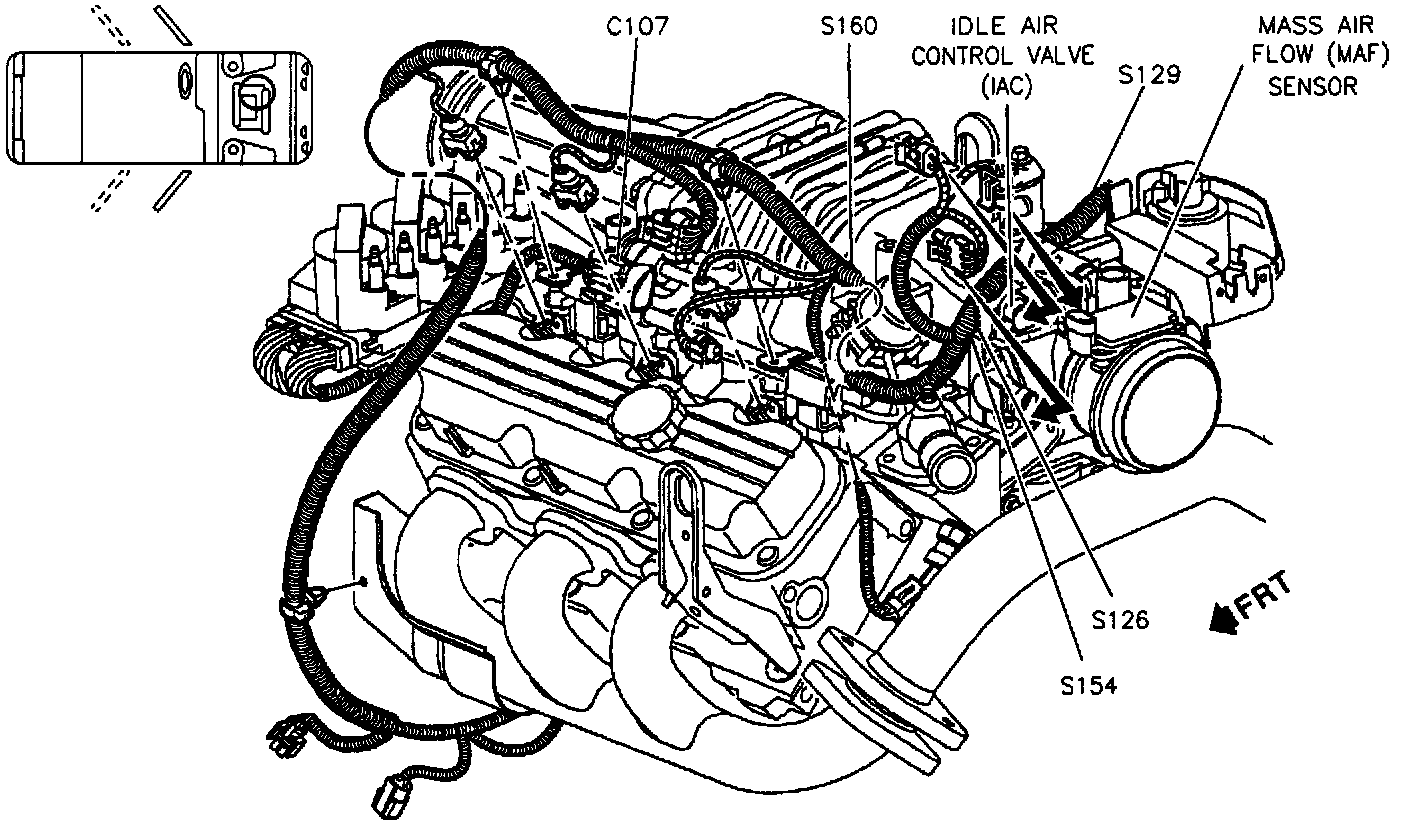

Right Hand Of The Engine:
