Home
>>
Buick
>>
1997
>>
Riviera V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Relays and Modules - Computers and Control Systems
>>
Body Control Module
>>
Diagrams
>>
Electrical Diagrams
>>
Power, Ground & Vehicle Speed Input
Power, Ground & Vehicle Speed Input

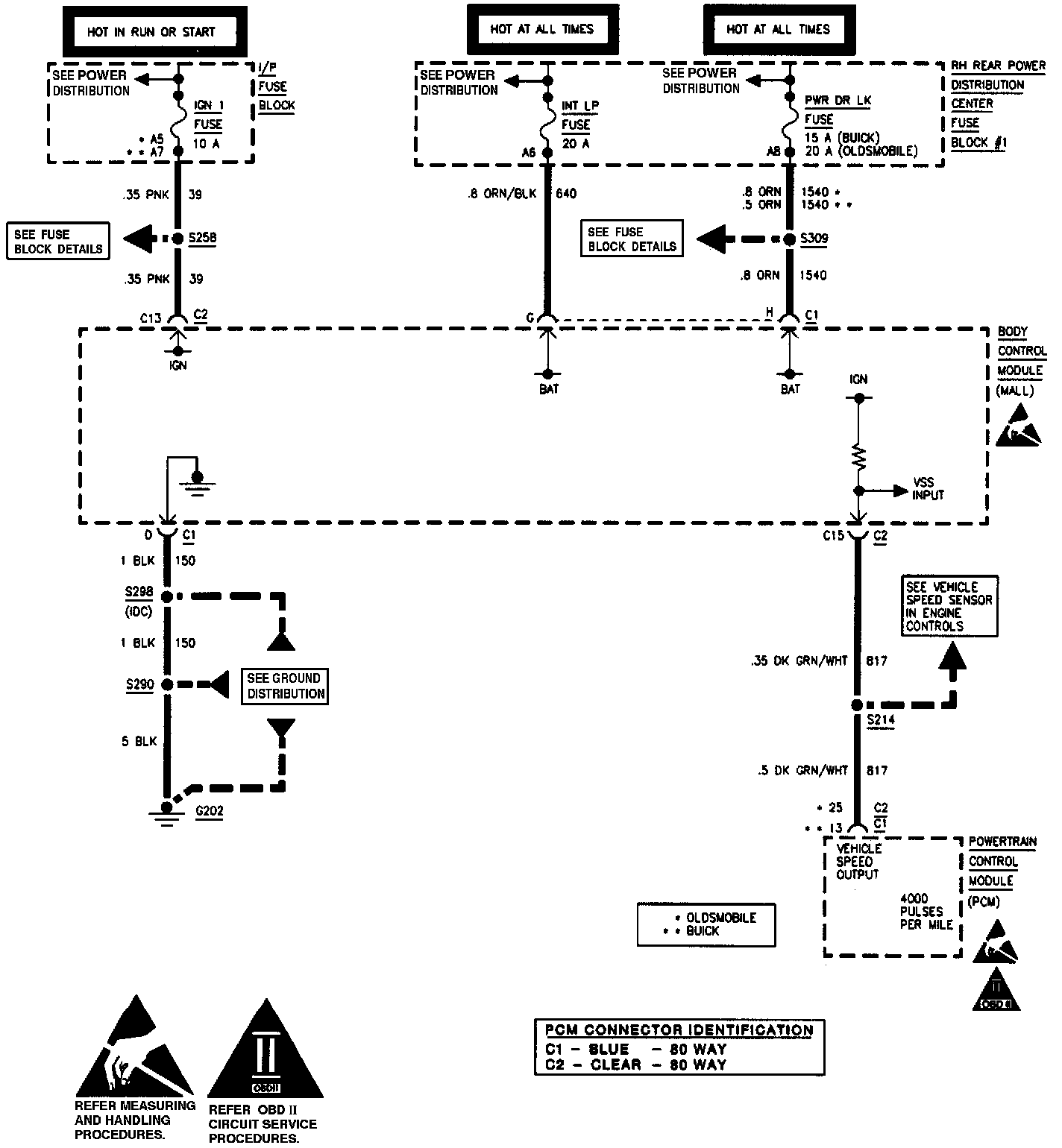

Body Control Module: Power, Ground And Vehicle Speed Input:
