Home >> Buick >> 1997 >> Regal V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Cylinder Block Assembly >> System Diagram

System Diagram

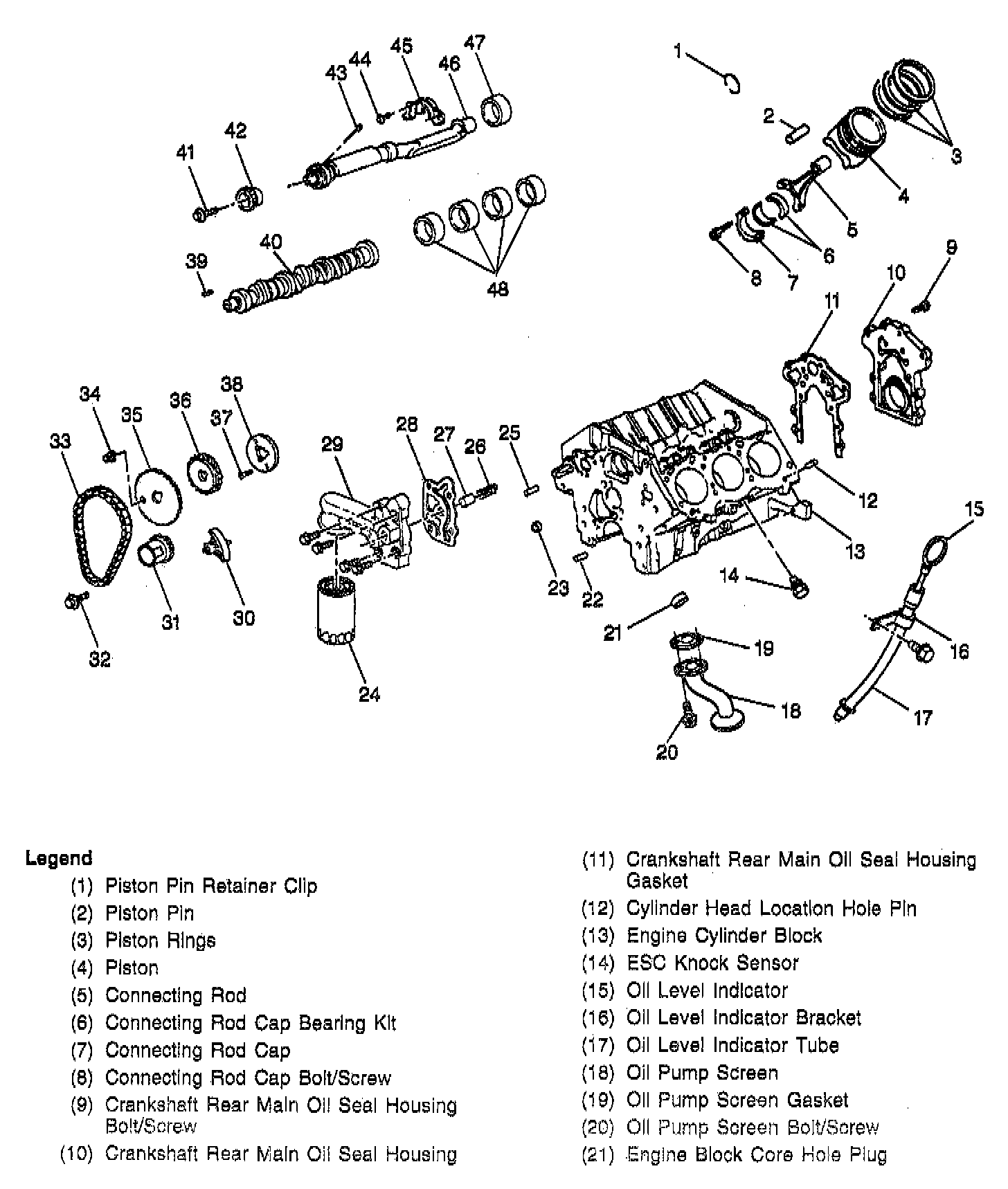

Part 1 Of 2:



Part 2 Of 2:
