Home >> Buick >> 1997 >> Regal V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Table 3 Scan Tool Does Not Communicate

Table 3 Scan Tool Does Not Communicate

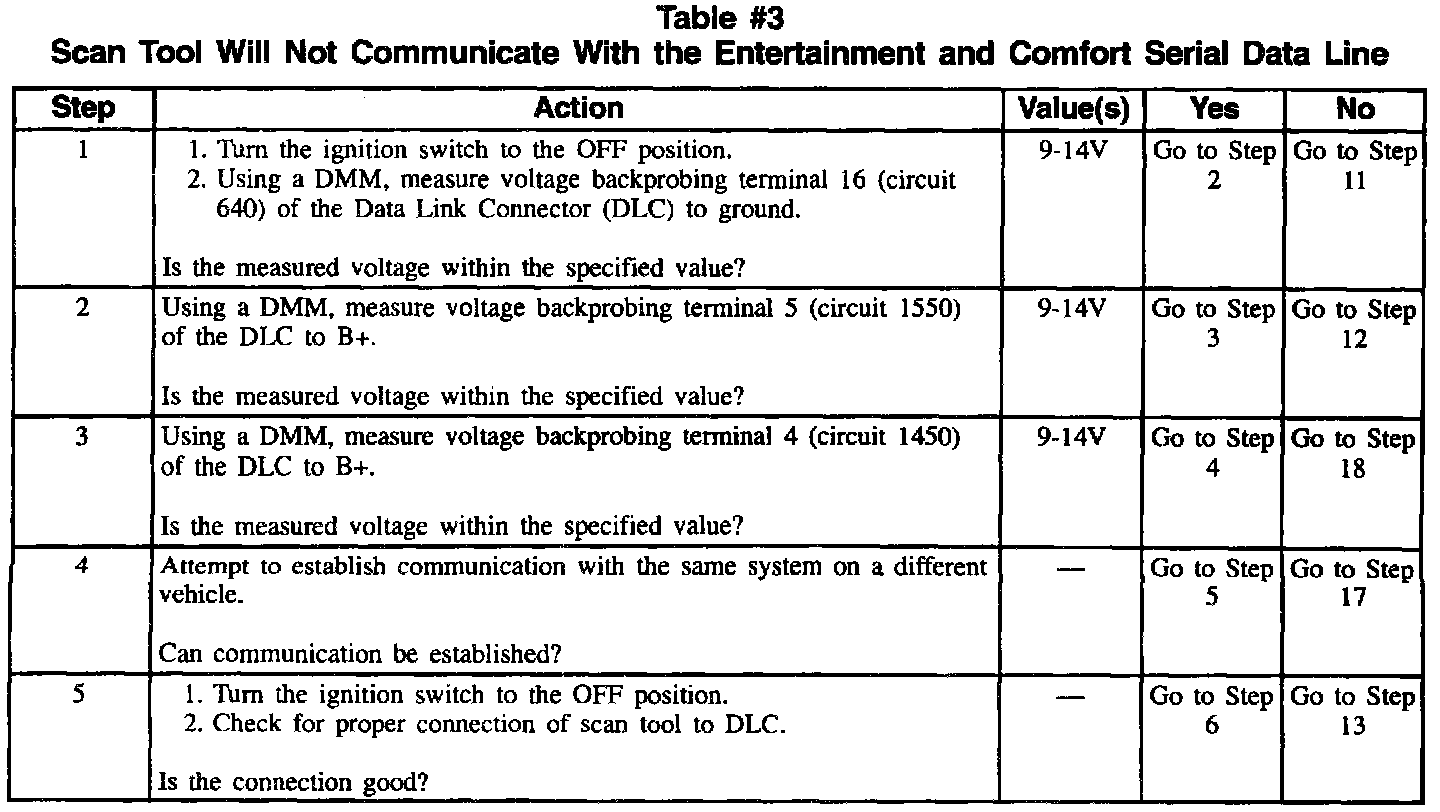

Table #3 Scan Tool Will Not Communicate With Entertainment And Comfort Serial Data Line (Part 1 Of 3):

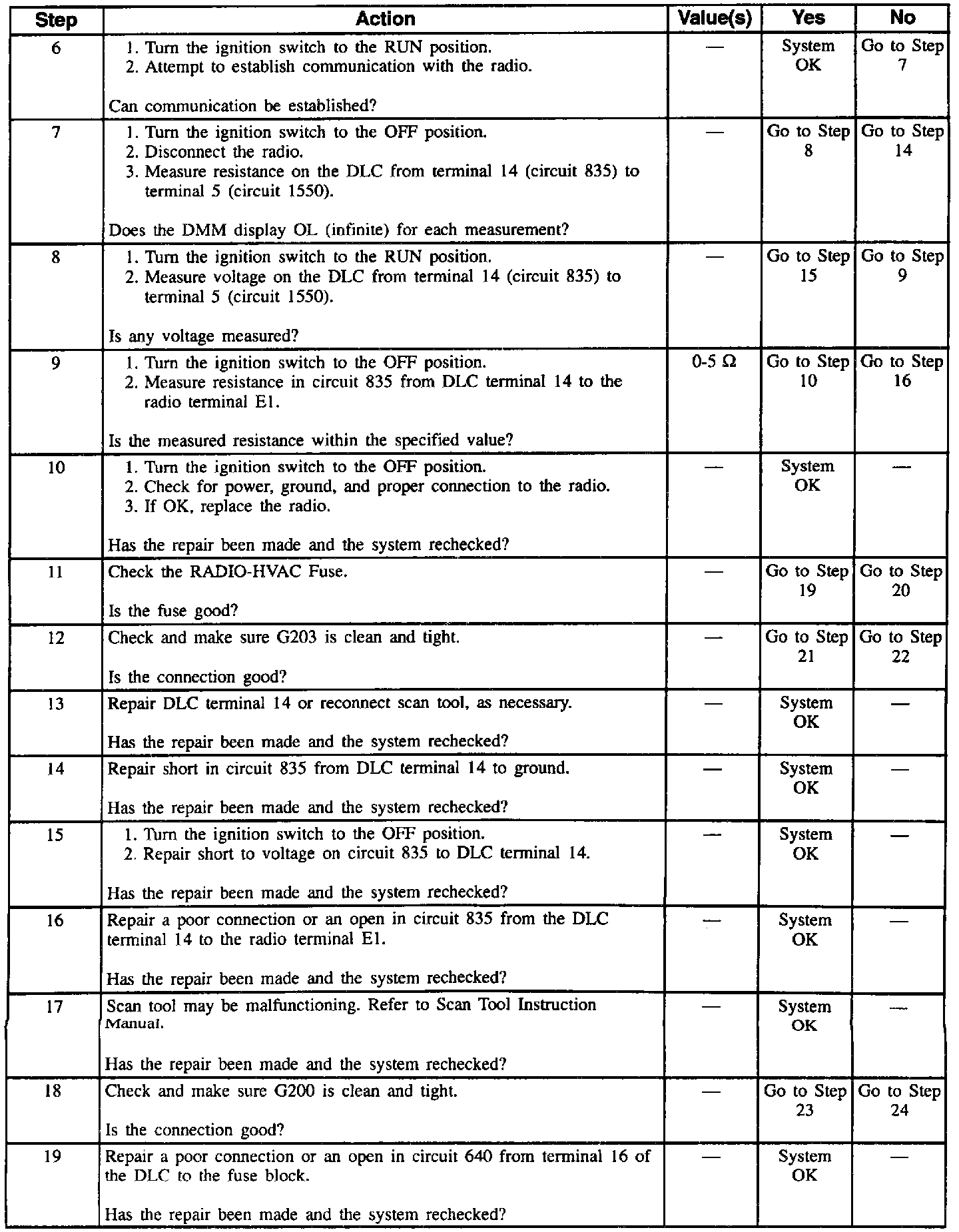

Table #3 Scan Tool Will Not Communicate With Entertainment And Comfort Serial Data Line (Part 2 Of 3):

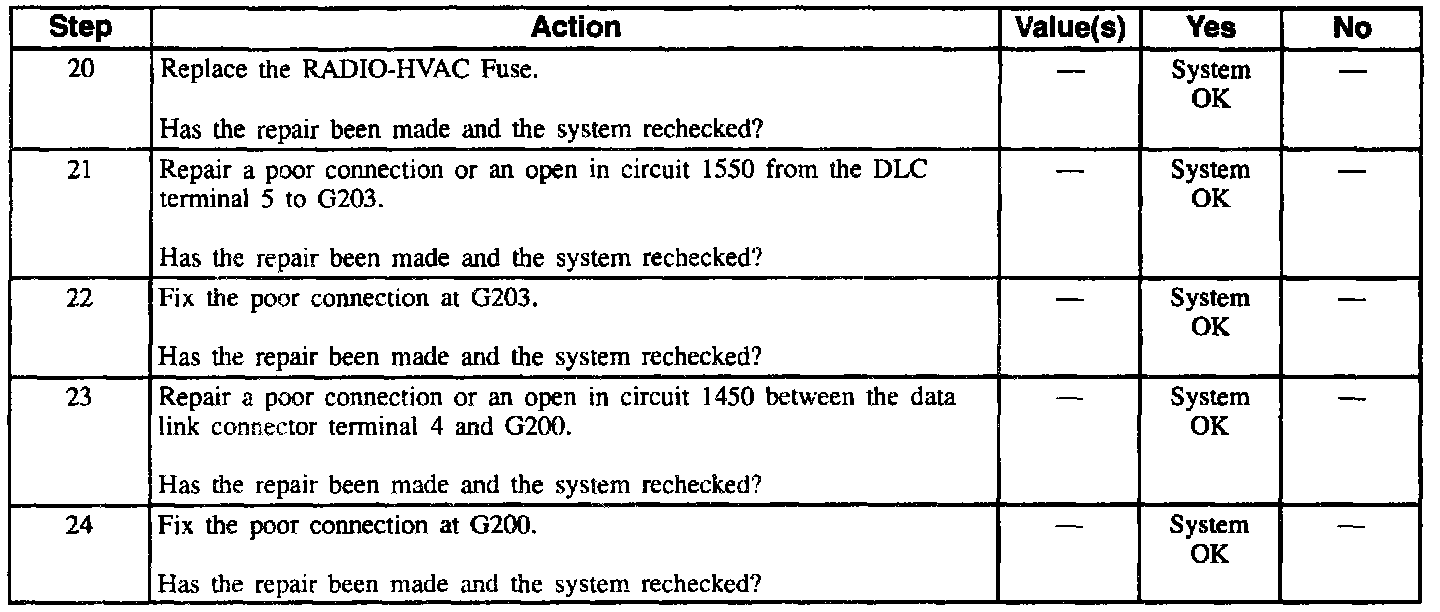

Table #3 Scan Tool Will Not Communicate With Entertainment And Comfort Serial Data Line (Part 3 Of 3):
