Home >> Buick >> 1996 >> Regal V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Connector Views >> Antitheft and Alarm Systems >> System Diagram >> Theft Deterrent Module

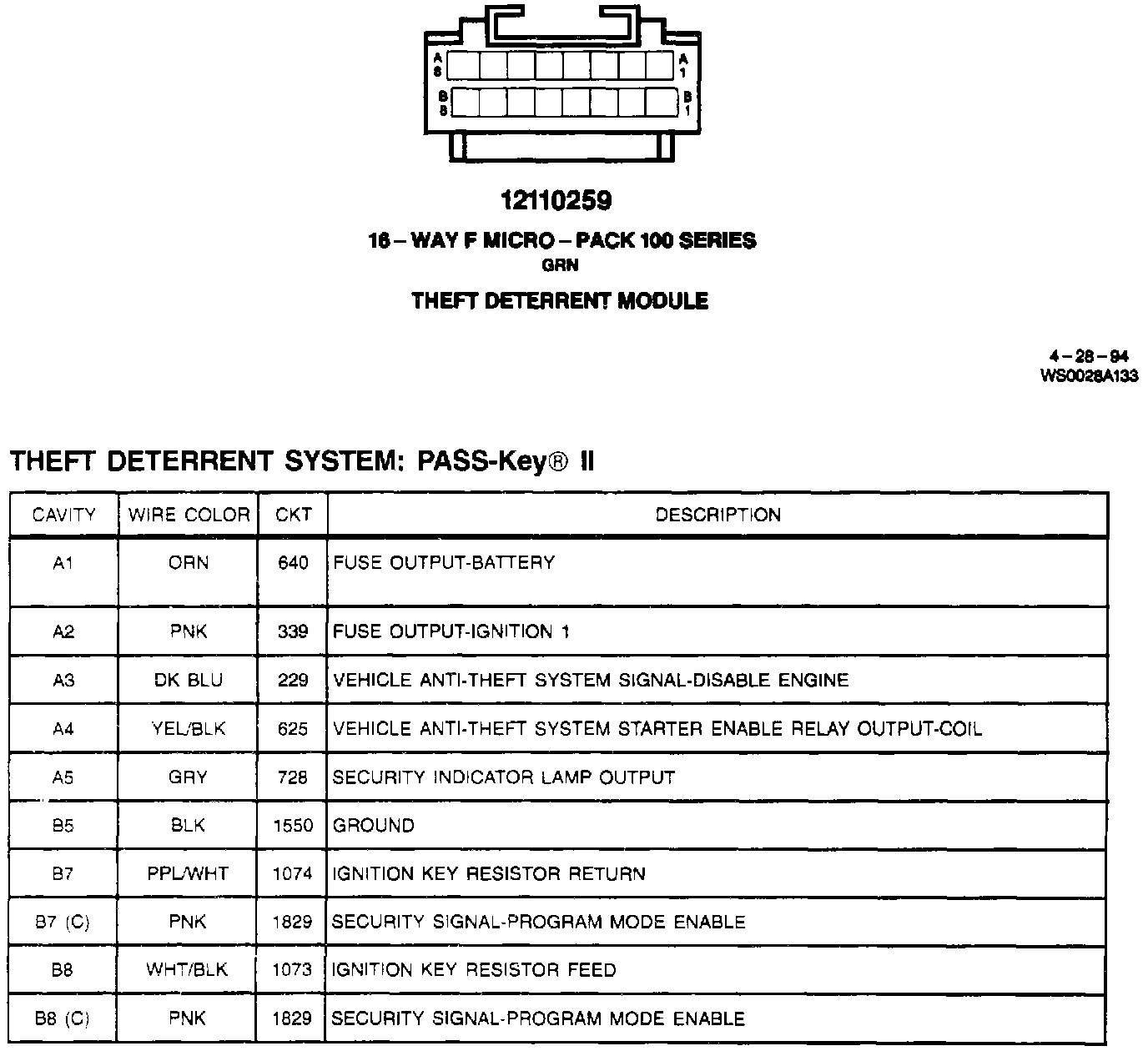

Theft Deterrent Module

Theft Deterrent System: Pass-Key (R) II:
