Century Sedan L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
Power Window Switch

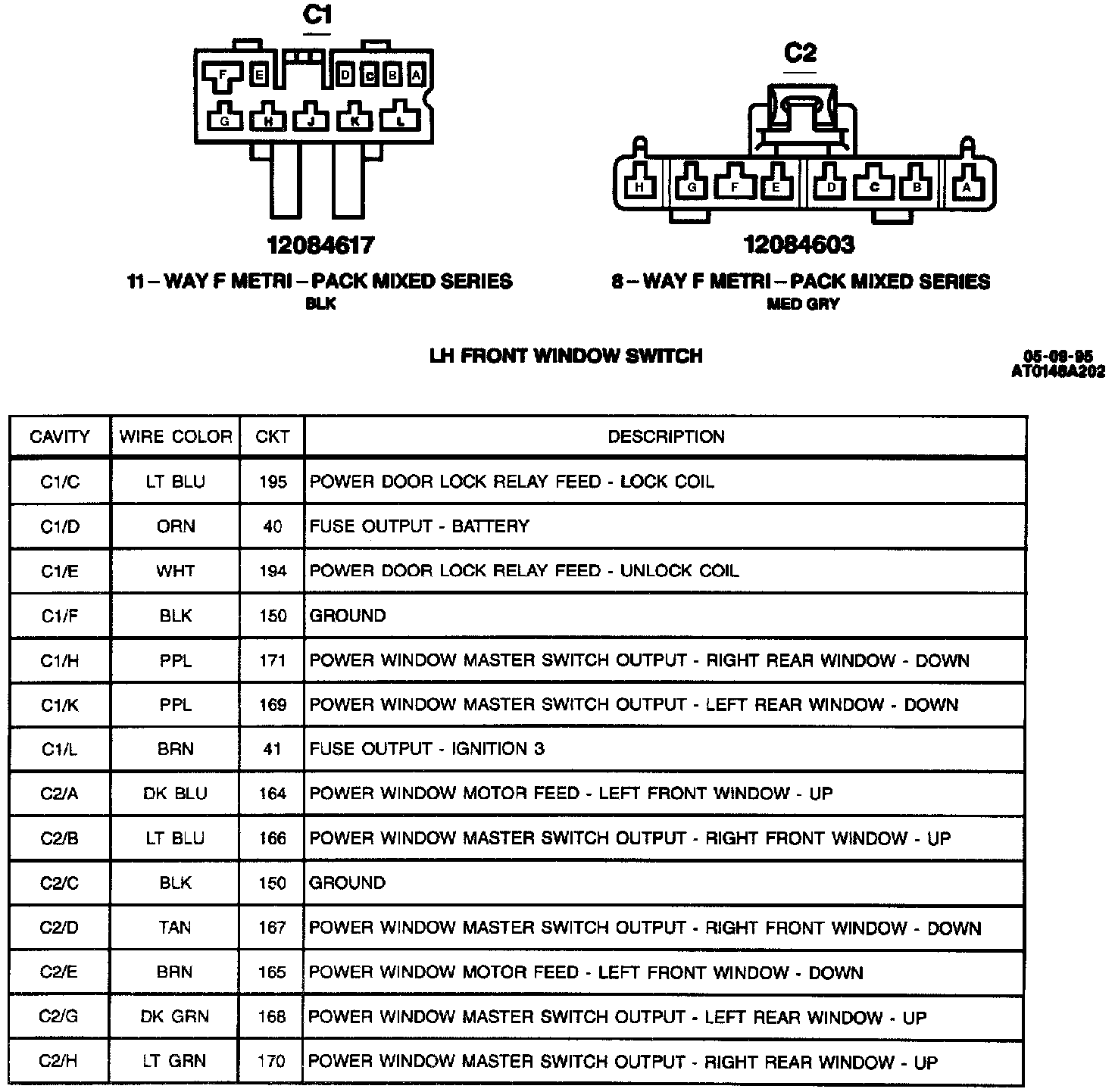

C1, C2: LH Front Window Switch:
Door Lock Switch, Window Switch:
RH Front Window/Door Switch:
