Power Window Control Module
Power Window Control Module

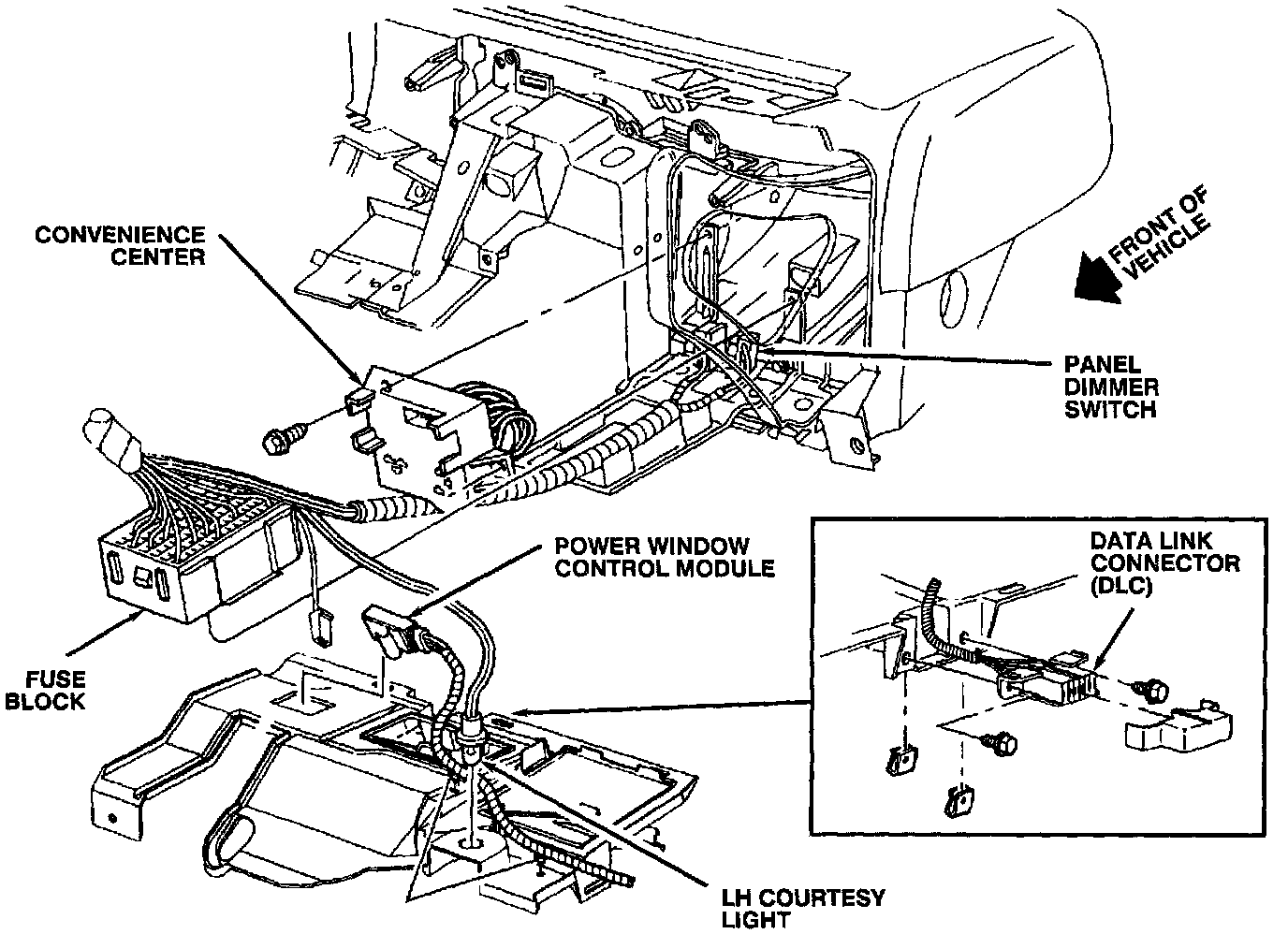

Behind LH Side Of I/P (2 Door Shown, 4 Door Similar):

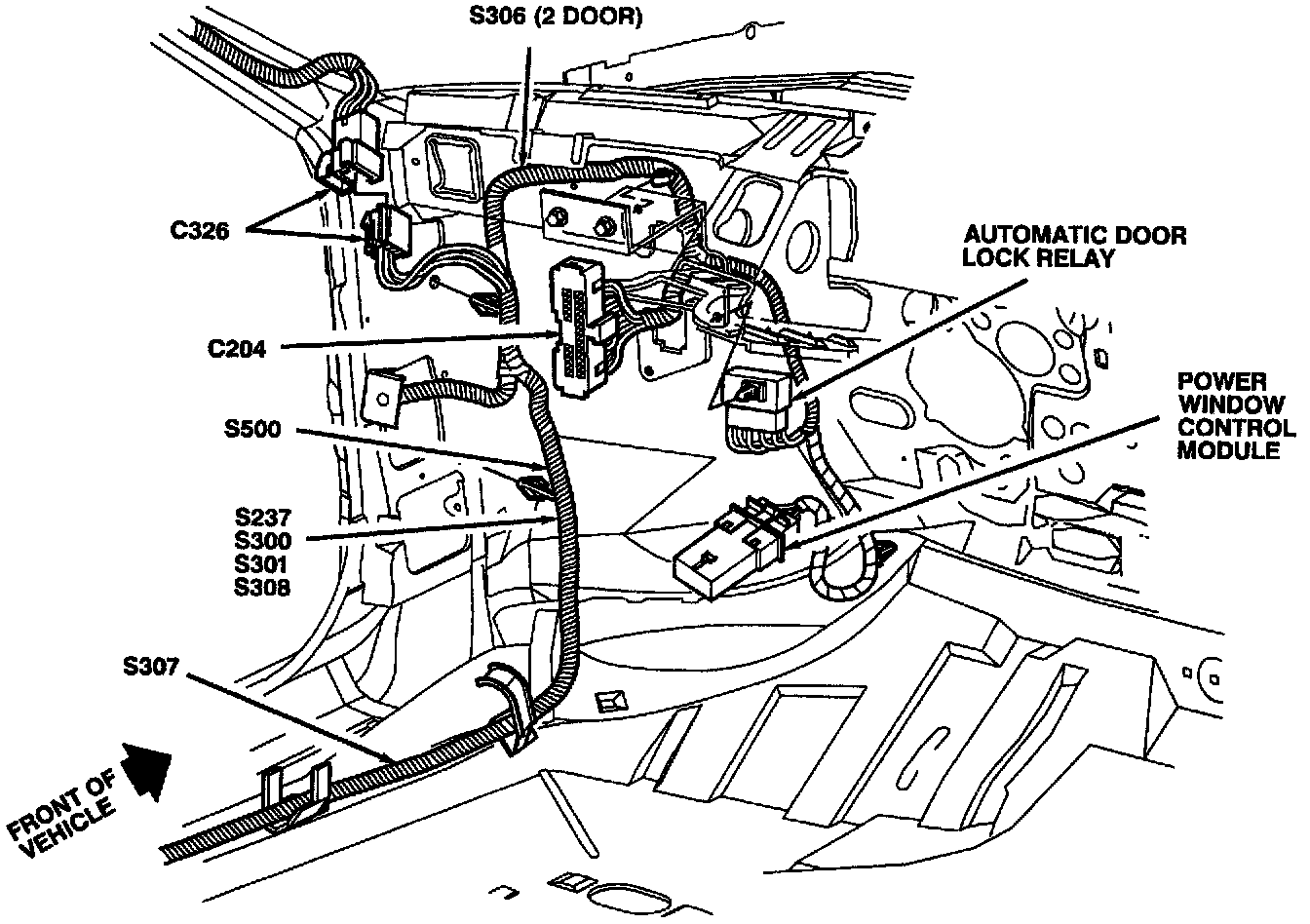

Behind LH Side Of I/P:
