Home >> Buick >> 1995 >> Park Avenue Ultra V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Diagrams >> Components >> Modules >> Adaptive Lamp Monitor Module

Adaptive Lamp Monitor Module

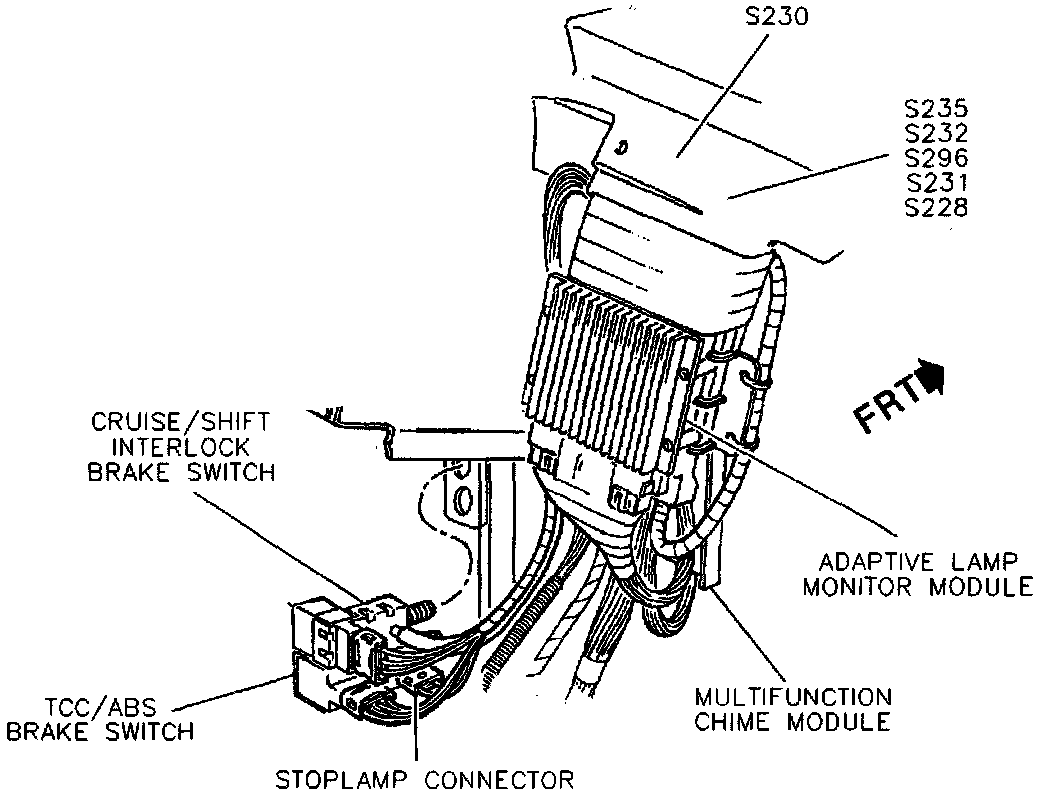

Modules And Switches Located At RH Of Steering Column:
