Home >> Buick >> 1995 >> LeSabre V6-3.8L VIN K >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Ignition Relay >> Locations

Ignition Relay: Locations

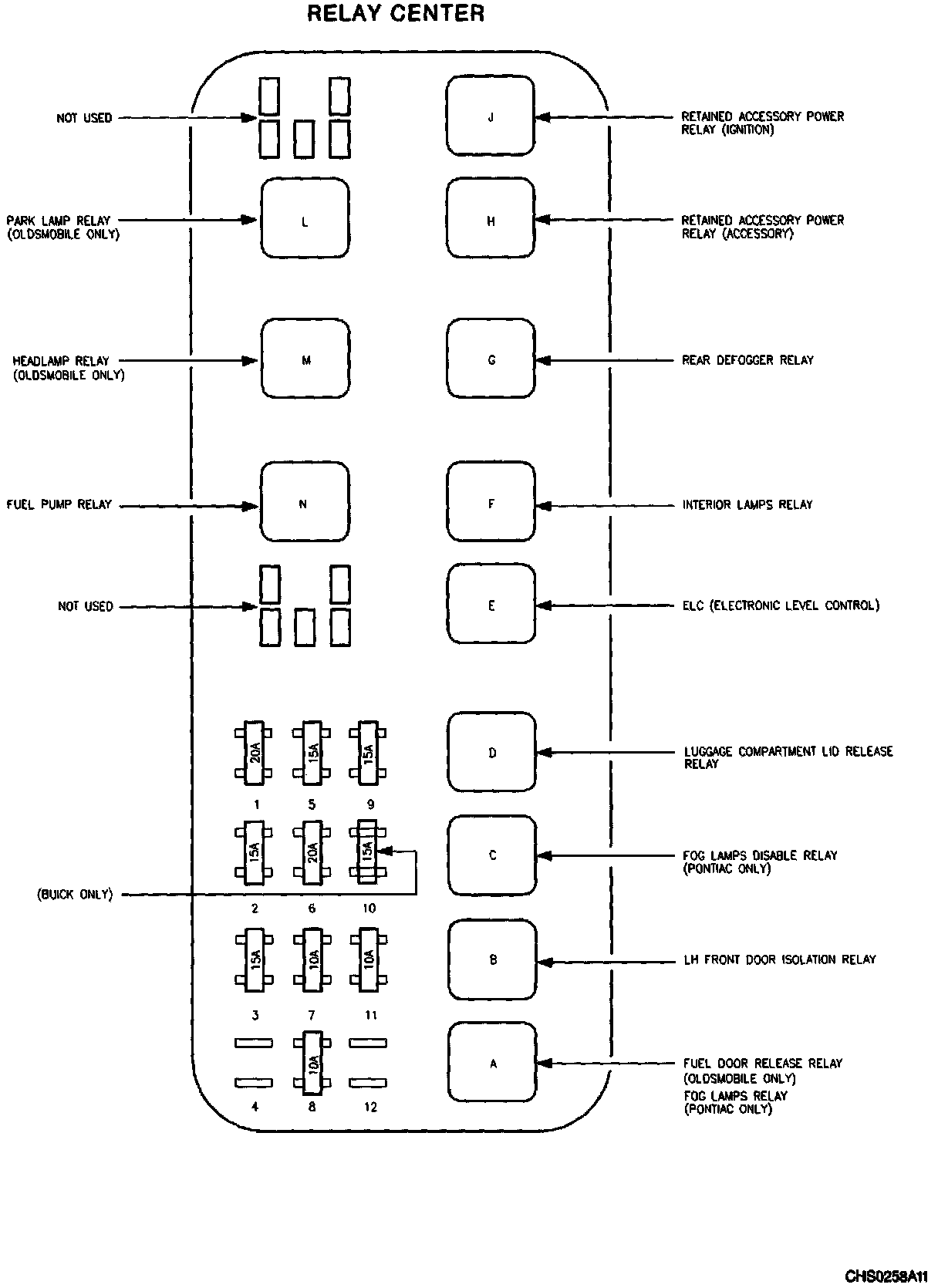

I/P Fuse Block/Relay Center Details:



Passenger Compartment, Lower RH Front Corner - PCM:
