Home >> Buick >> 1995 >> Century L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Components >> Miscellaneous Components >> Master Switch Assembly Light

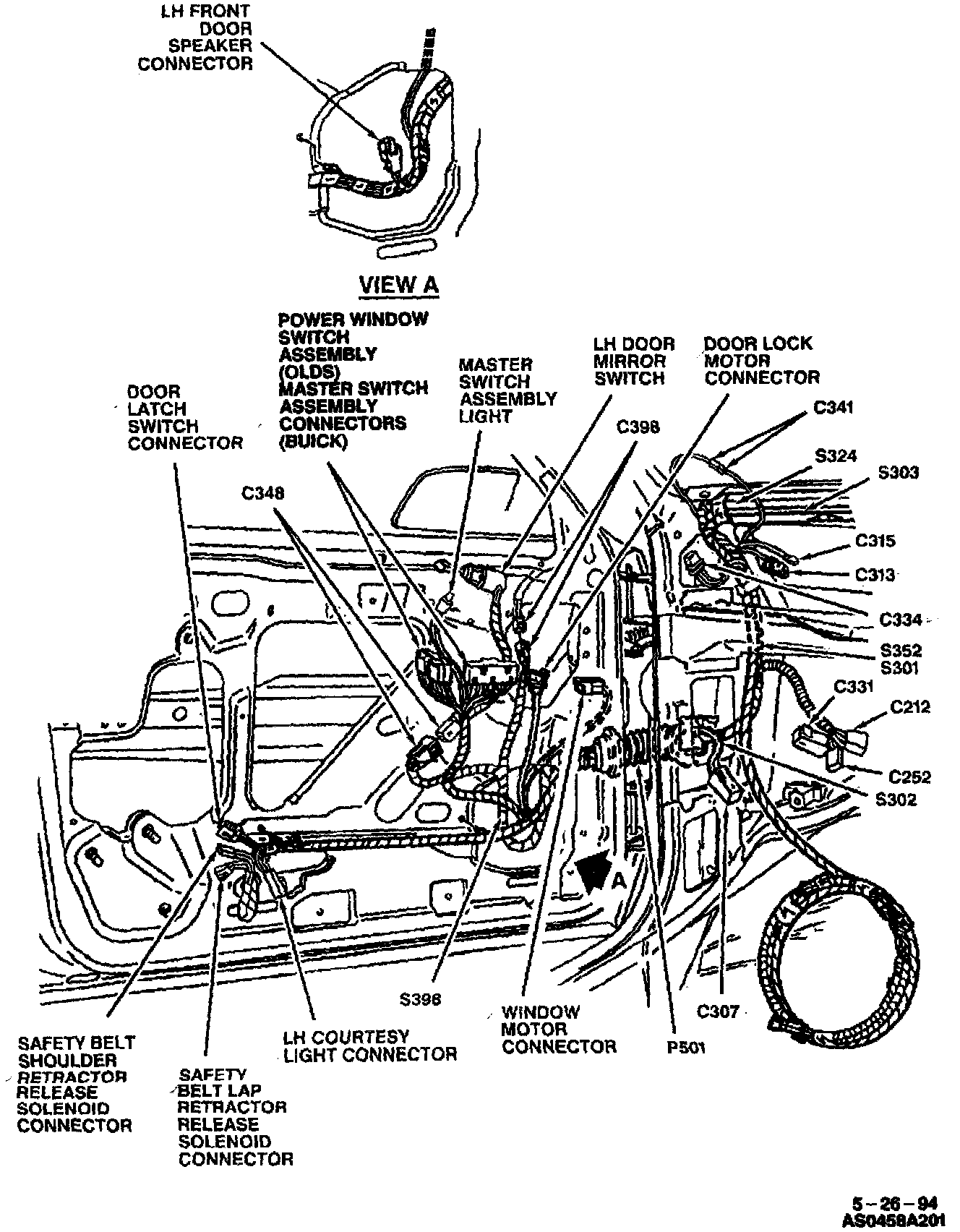

Master Switch Assembly Light

LH Door Shown (RH Similar), And Shroud:
