Home
>>
Buick
>>
1994
>>
Century L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Throttle Position Sensor
>>
Locations
>>

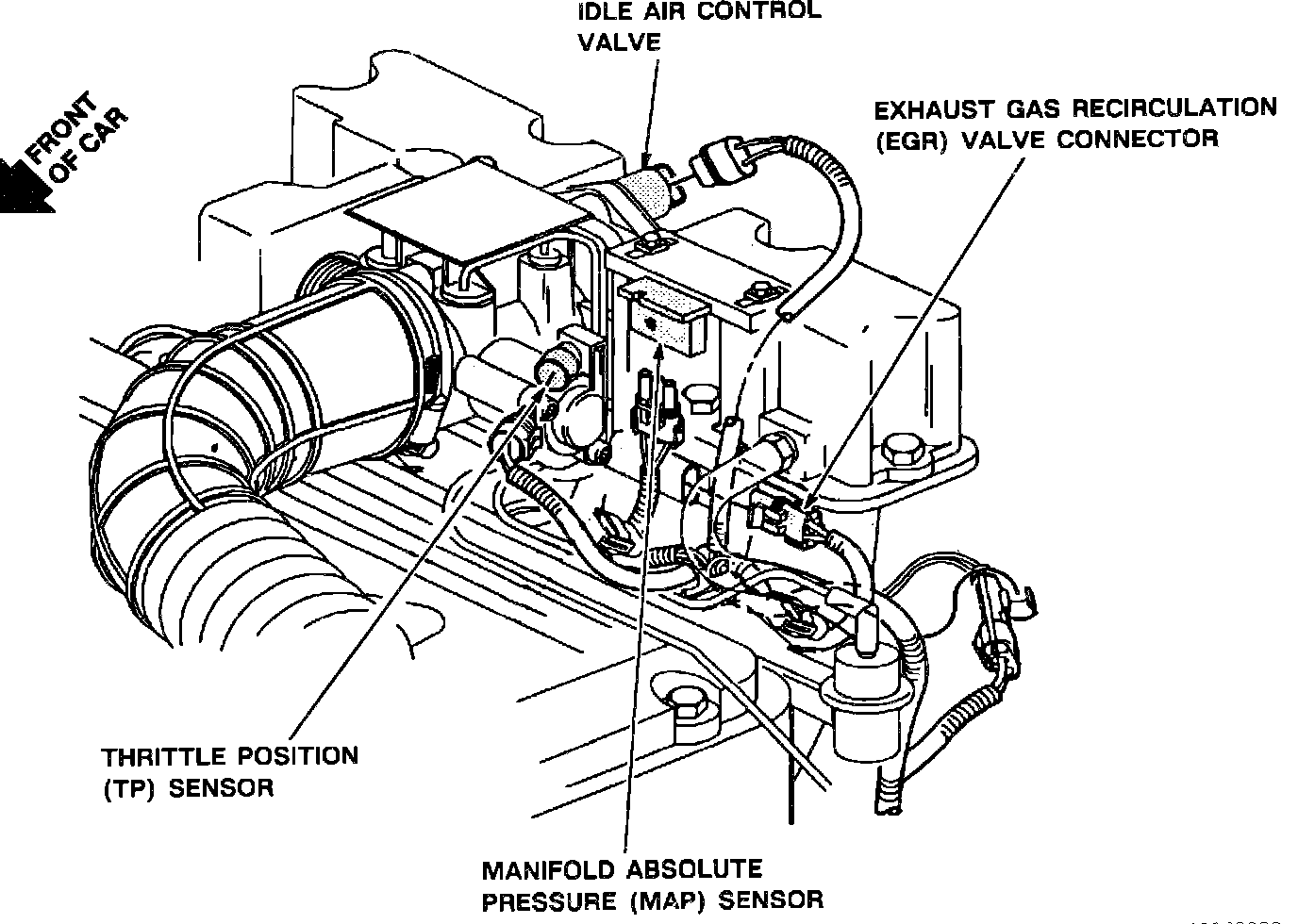

Engine Top View
Engine Top View
Engine Sensors:
The throttle position sensor is located on the side of the throttle body, opposite the throttle lever.
