Home >> Buick >> 1994 >> Century L4-2.2L VIN 4 >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Application and ID

Fuse Block: Application and ID

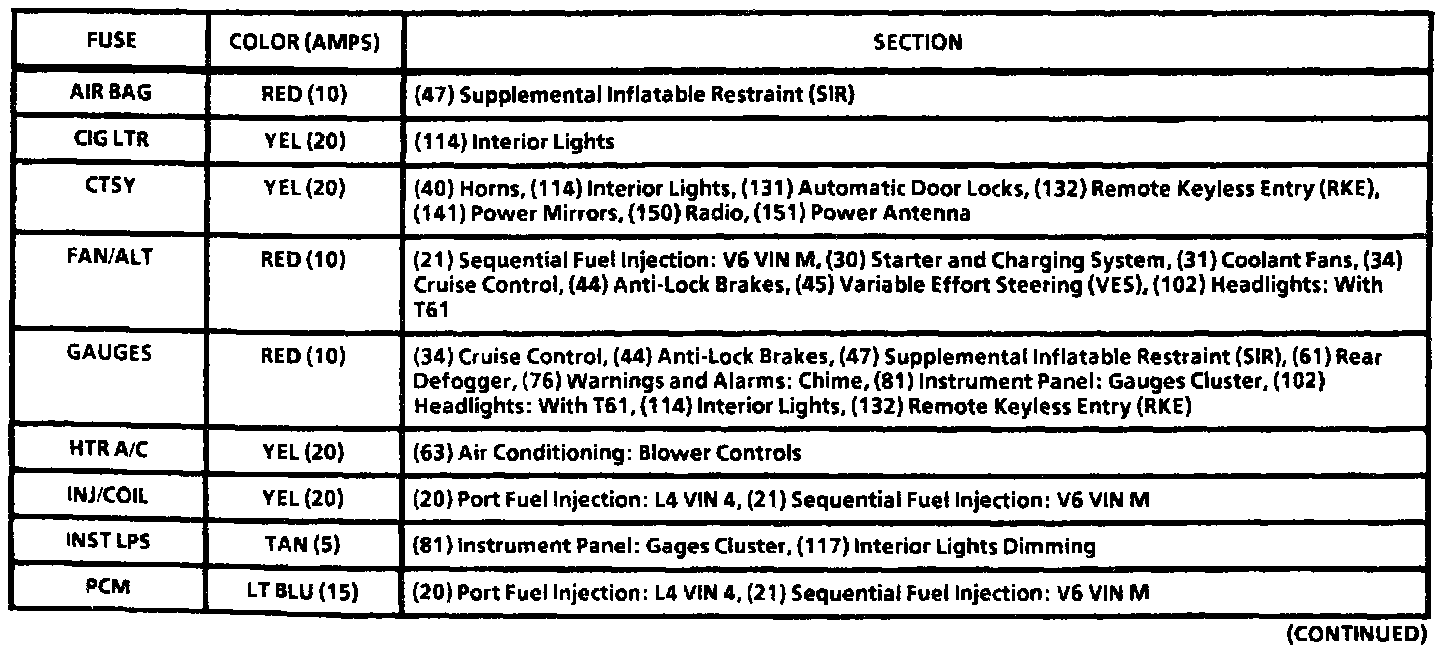

Fuse Block Details (1 Of 2):

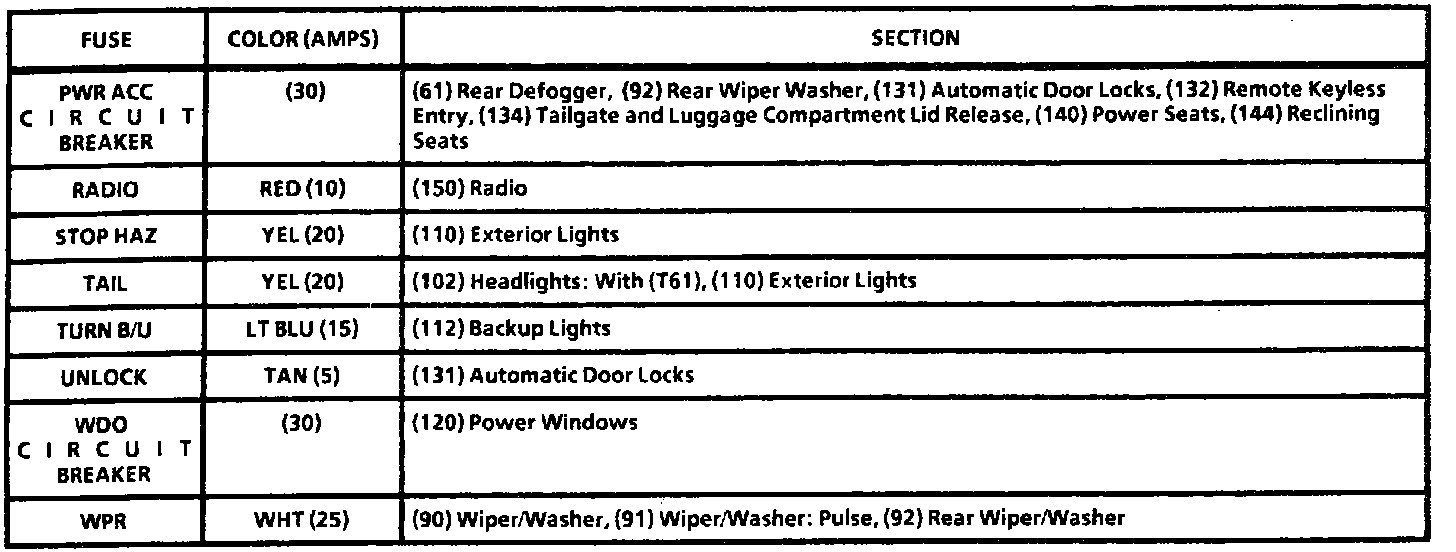

Fuse Block Details (2 Of 2):
