Home >> Buick >> 1994 >> Century L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch

Power Window Switch

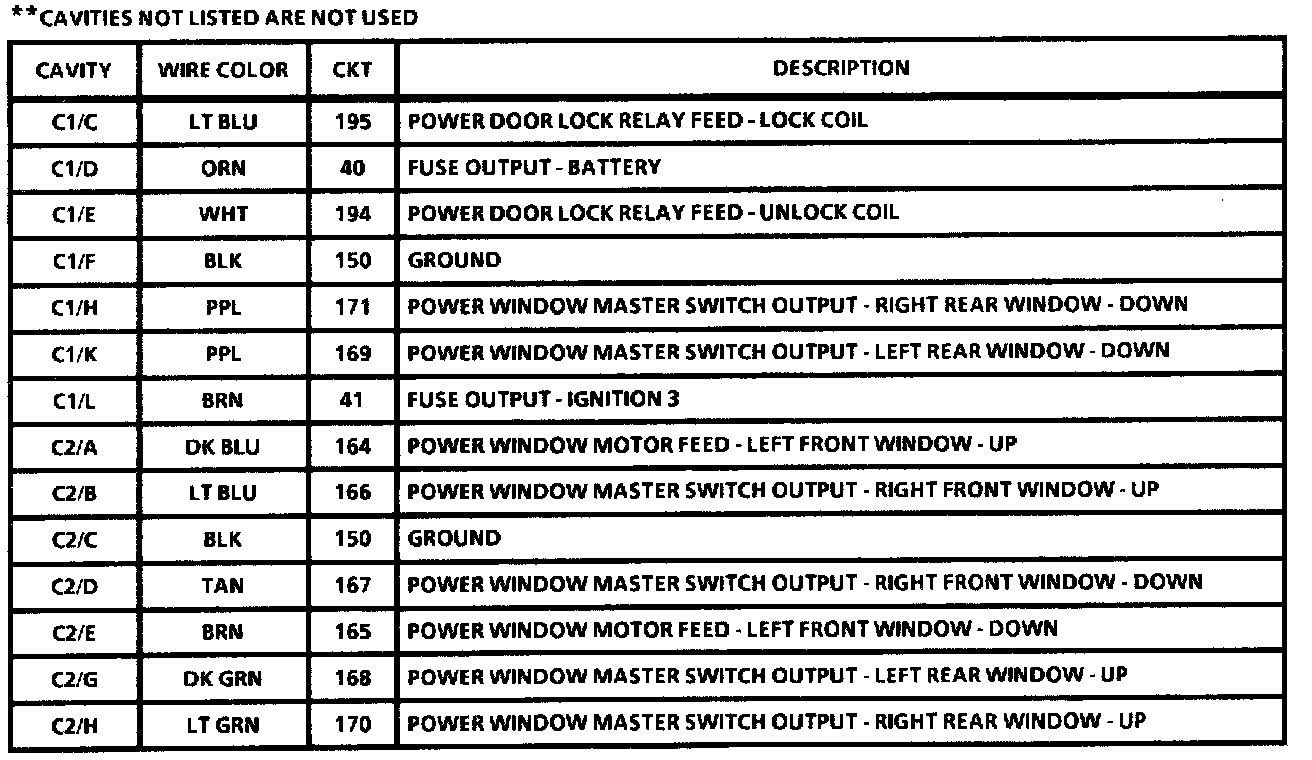

Master Switch Assembly:



Master Switch Assembly:



Rear Window Switch:
