Home >> Buick >> 1994 >> Century L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Daytime Running Lamp Control Unit

Daytime Running Lamp Control Unit

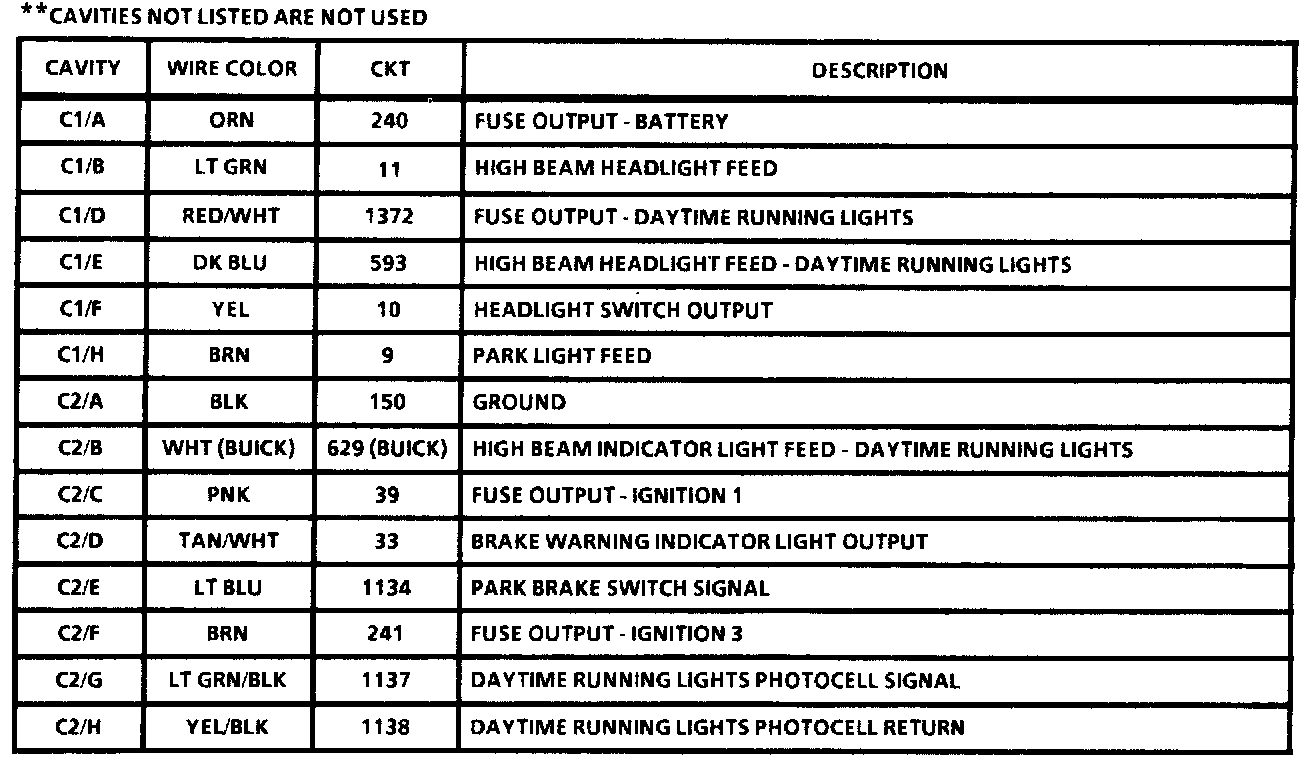

Daytime Running Light (DRL) Module:



Daytime Running Light (DRL) Module:
