Home >> Buick >> 1993 >> Park Avenue Ultra V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications

System Specifications

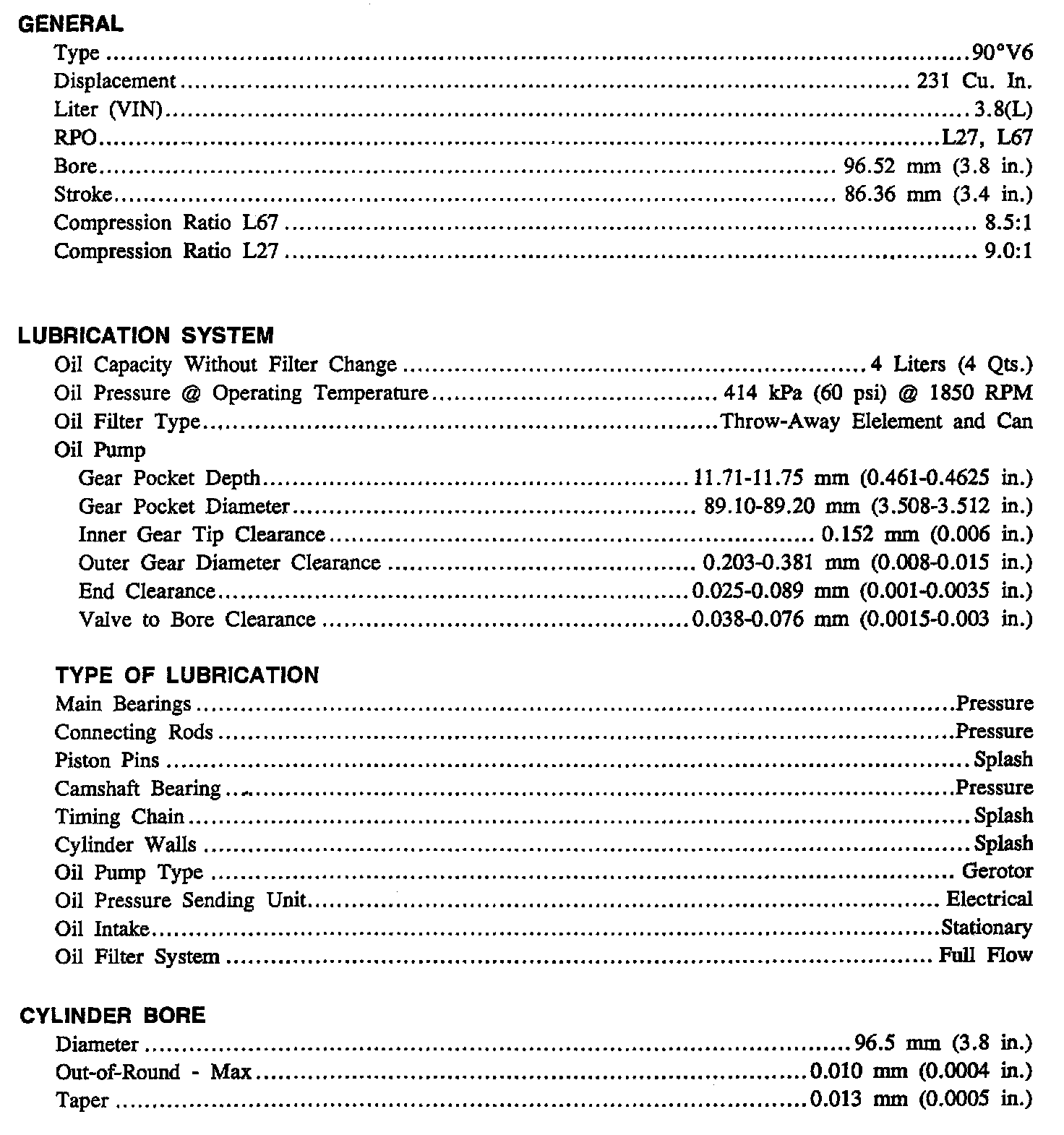

Engine Specifications:

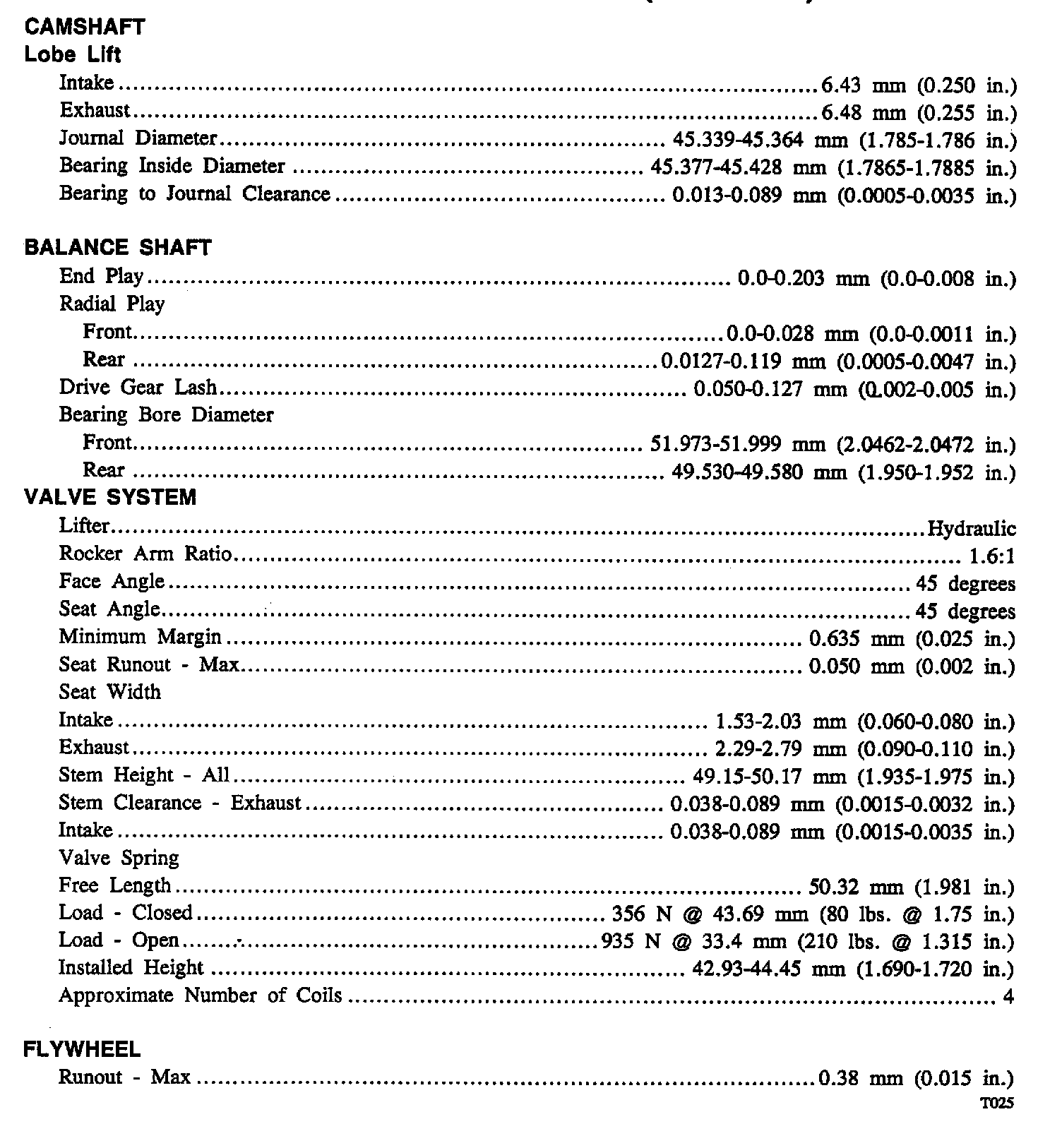

Continued Engine Specifications:

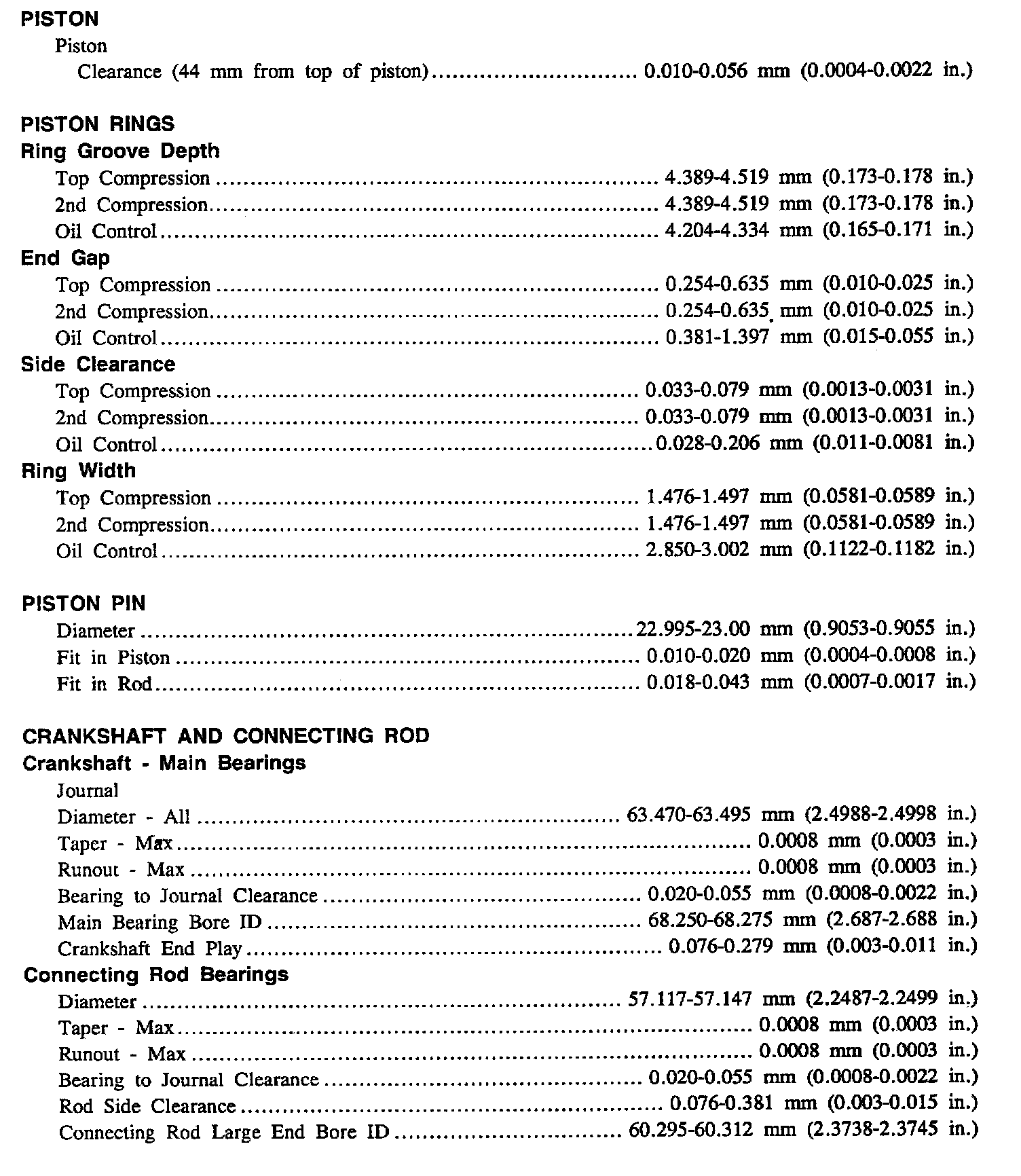

Continued Engine Specifications:

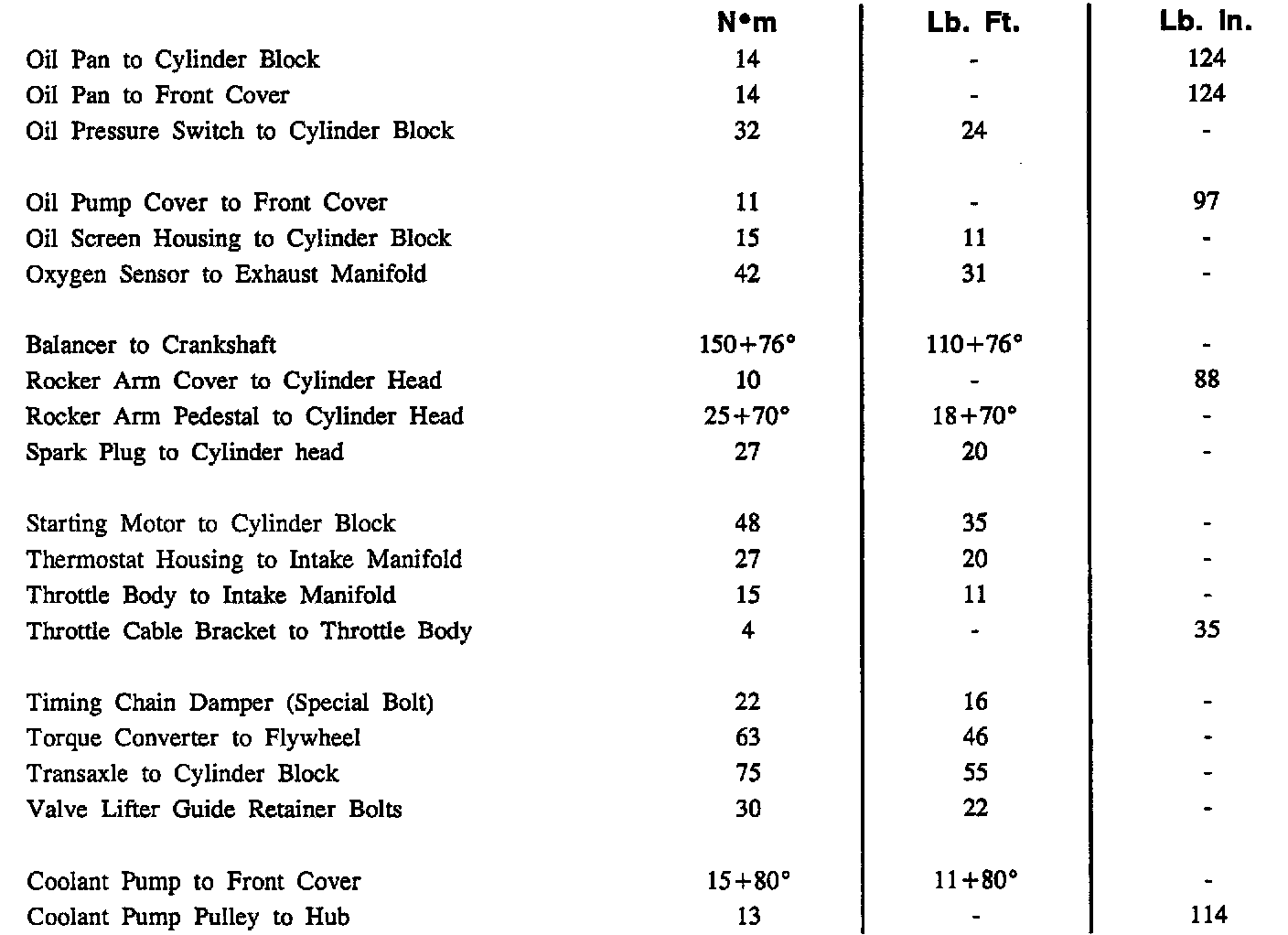

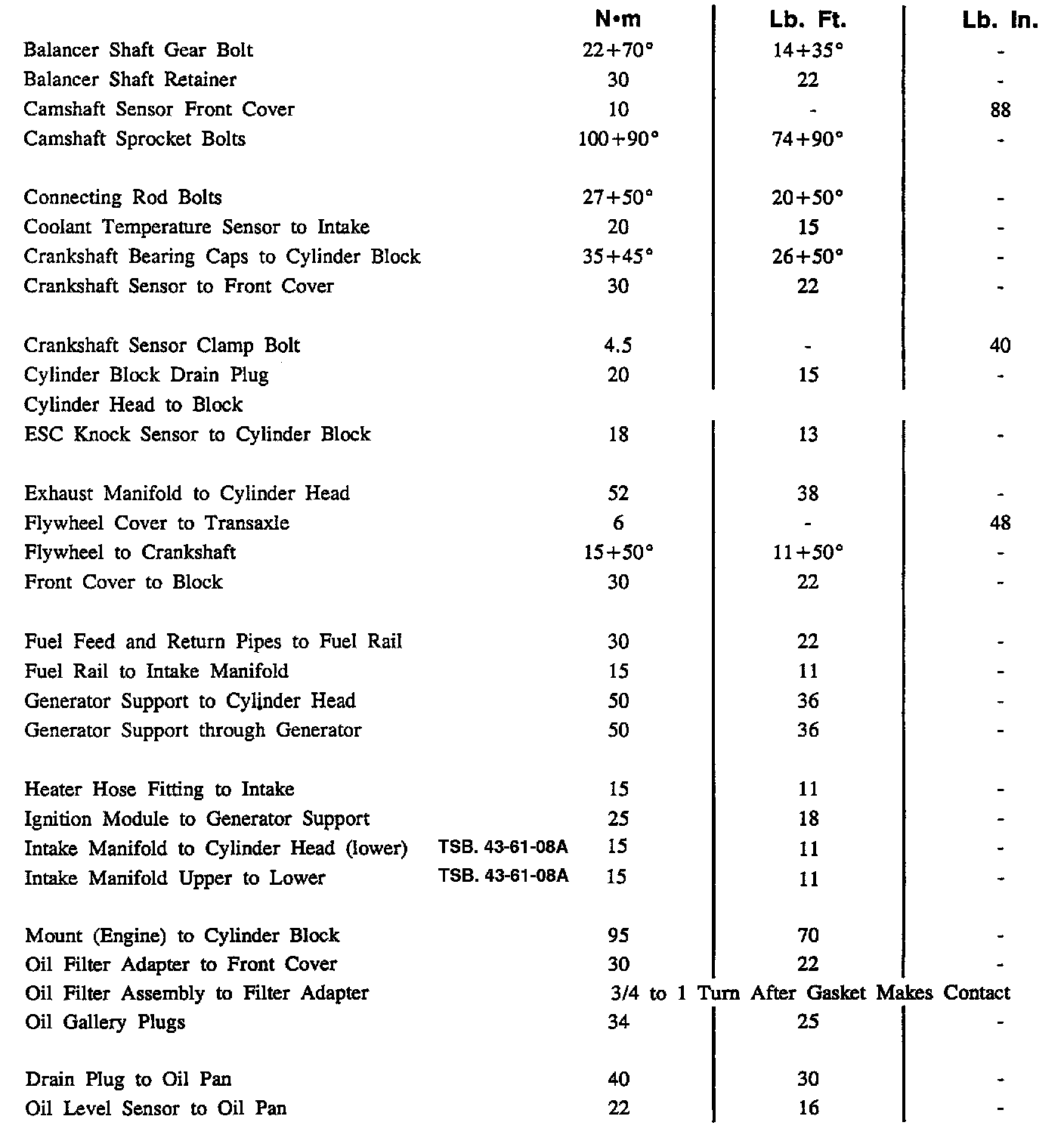

Continued Torque Specifications:






Intake Manifold Sequence (Non-Supercharged):

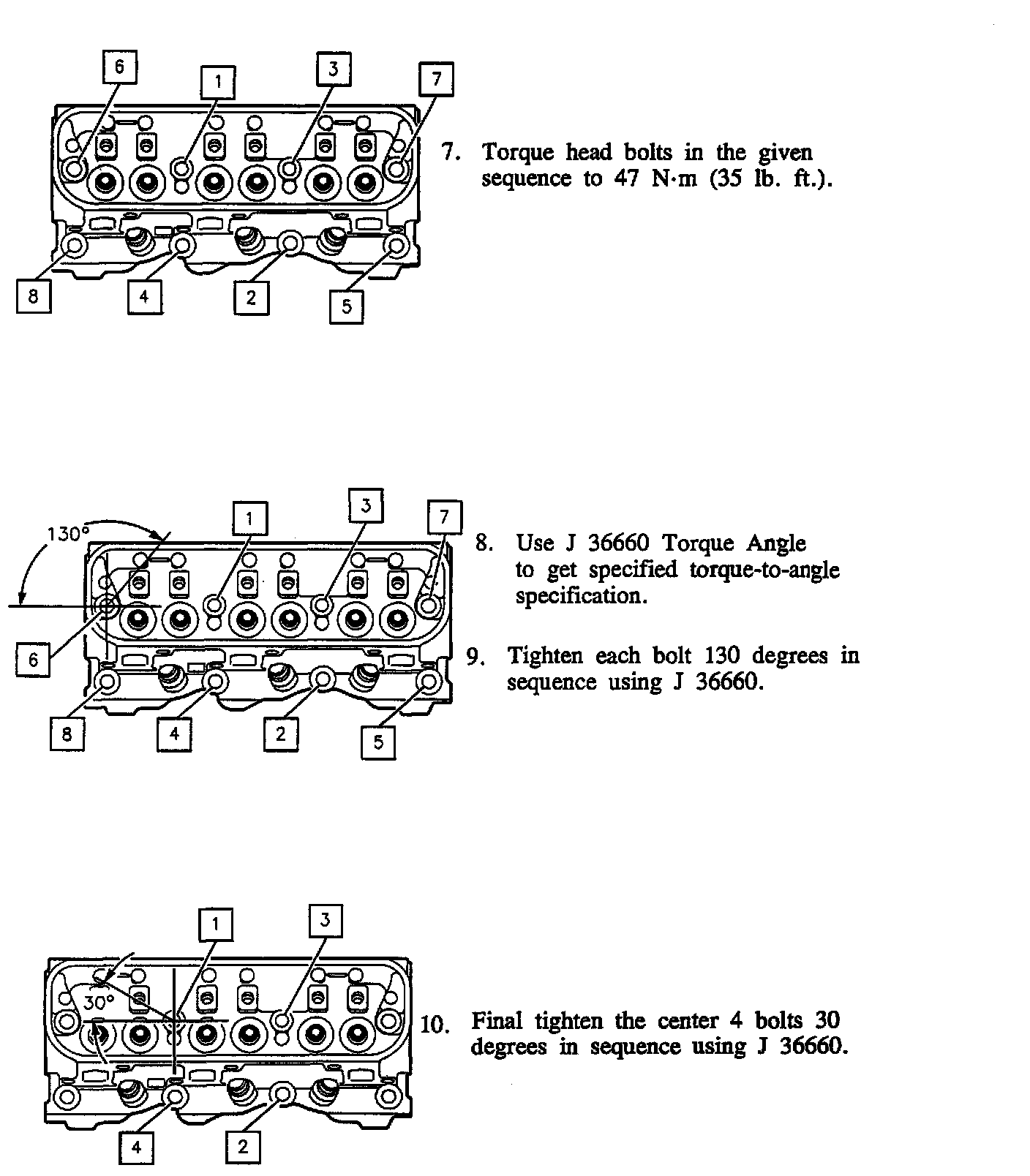

Cylinder Head Sequence:
