Engine Control Module

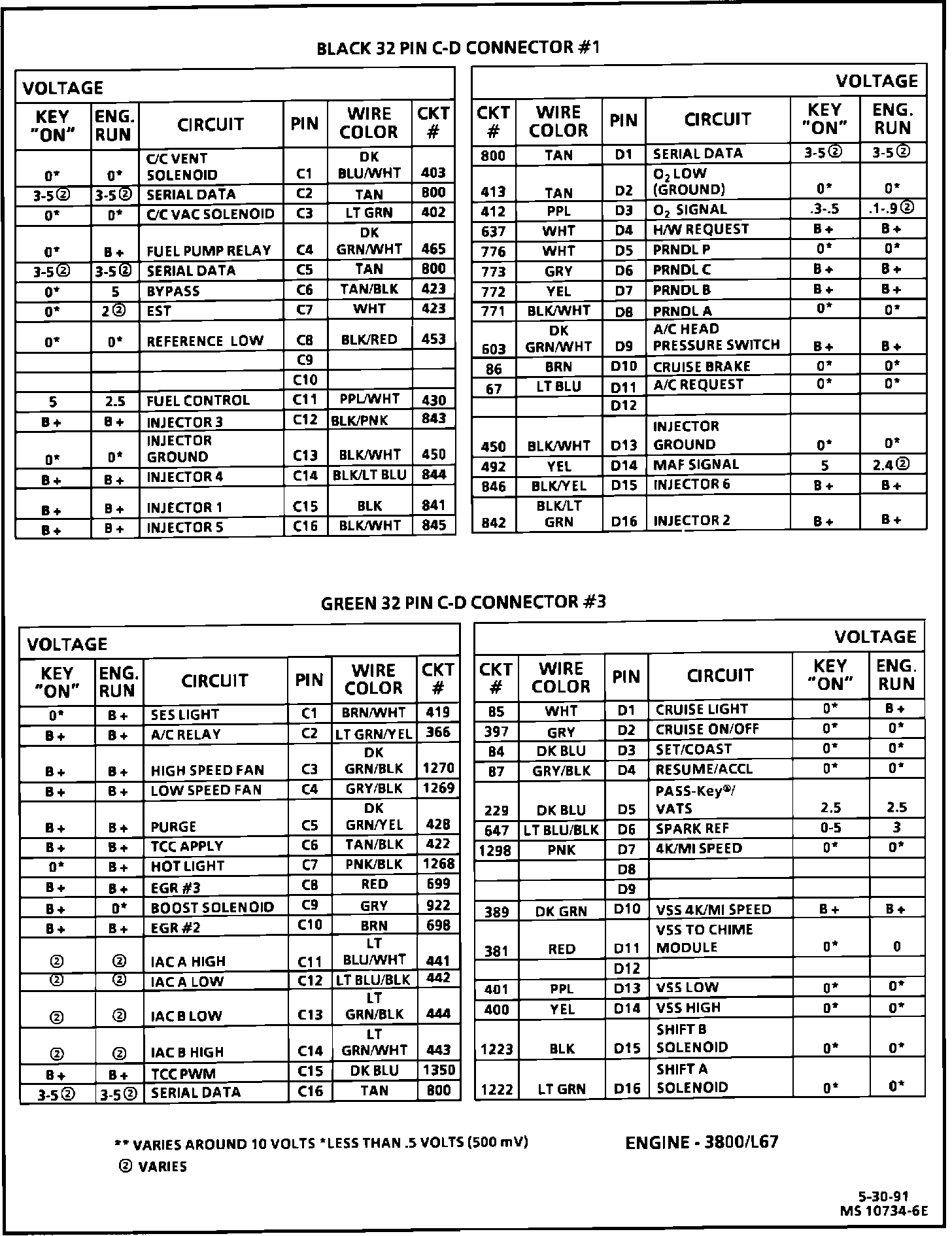

PCM Pin/Voltage Reference Chart (1 Of 2):

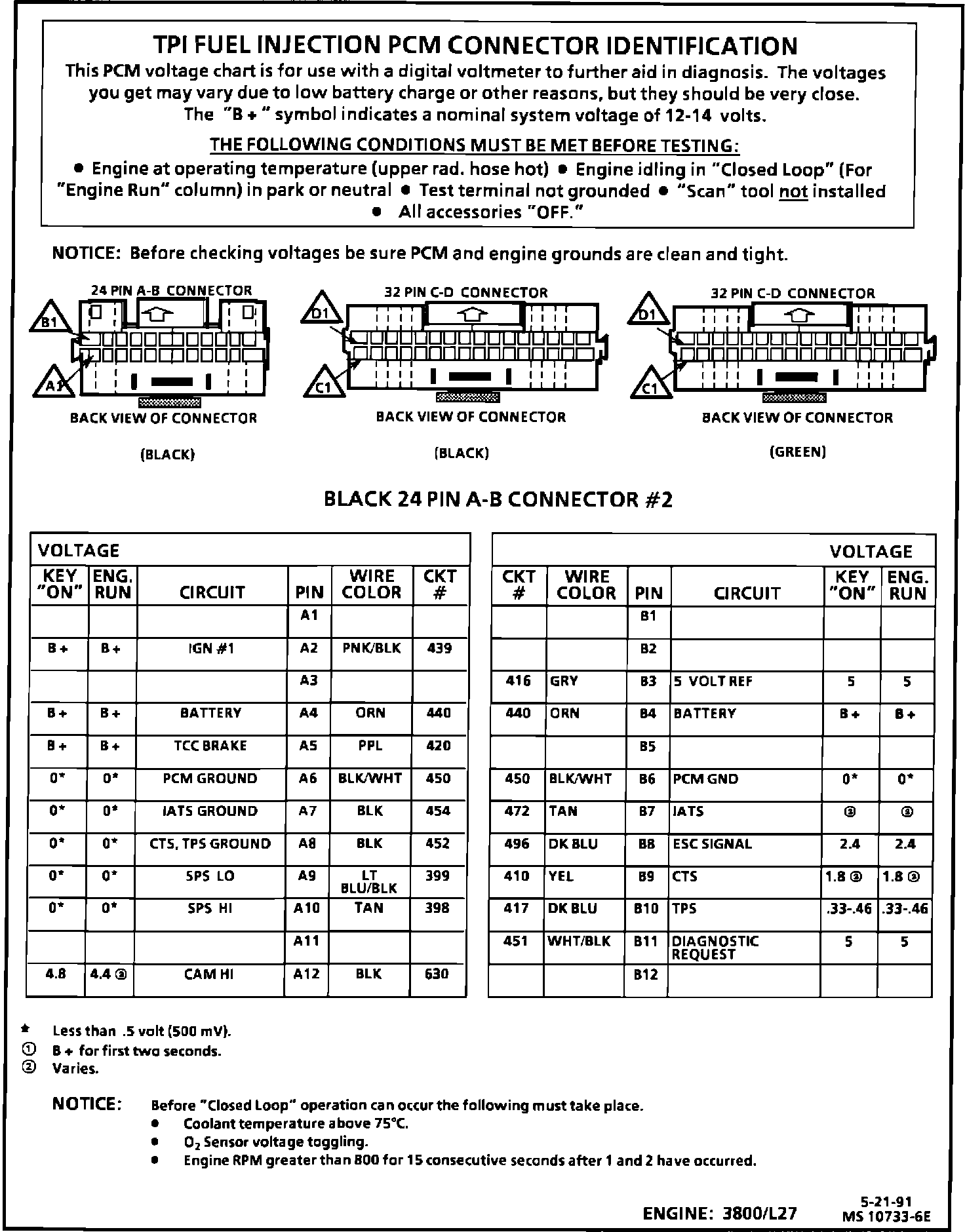

PCM Pin/Voltage Reference Chart (2 Of 2):
