Splicing Copper Wire Using Splice Clips

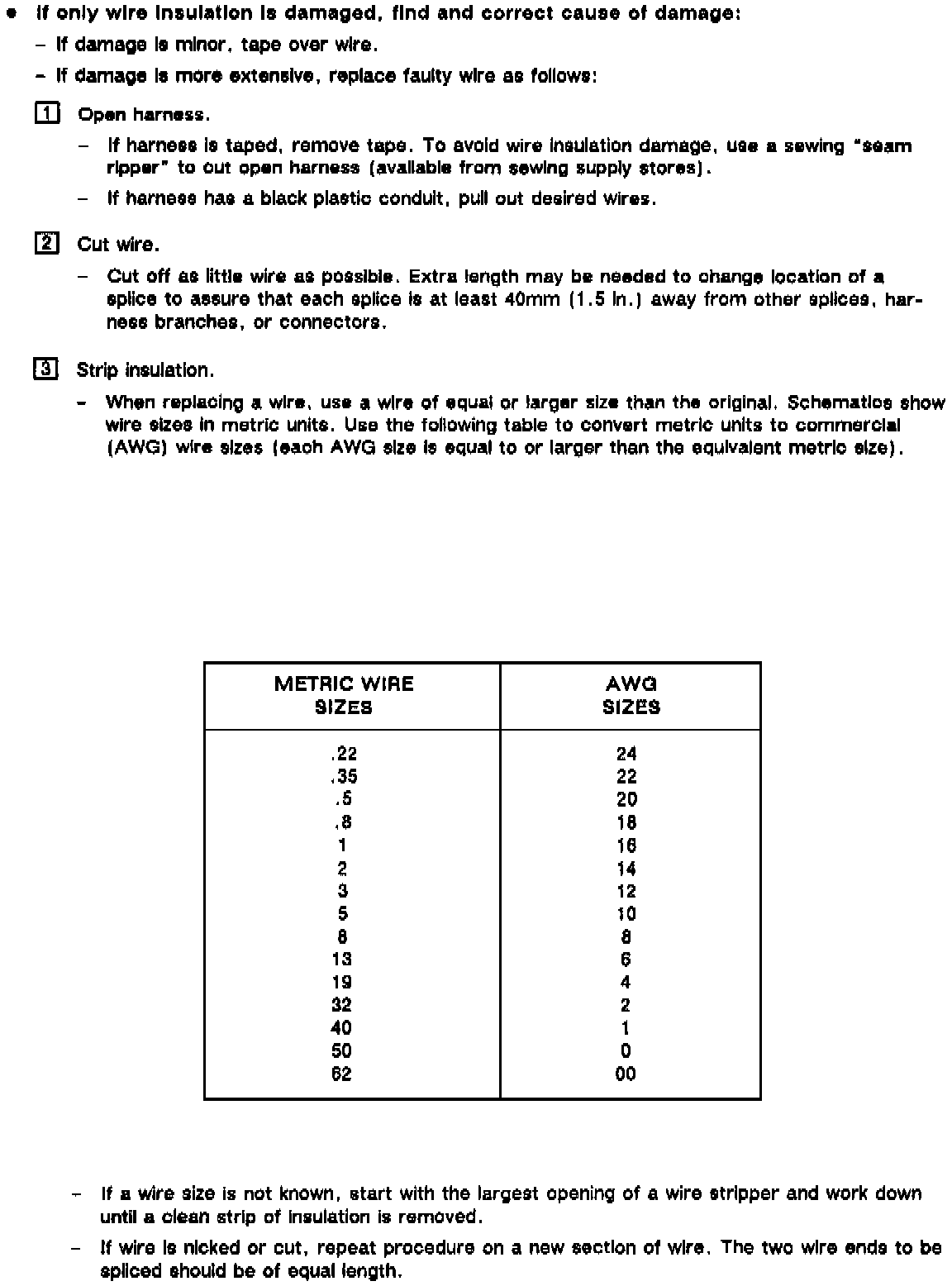

Splicing Copper Wire Using Splice Clips:

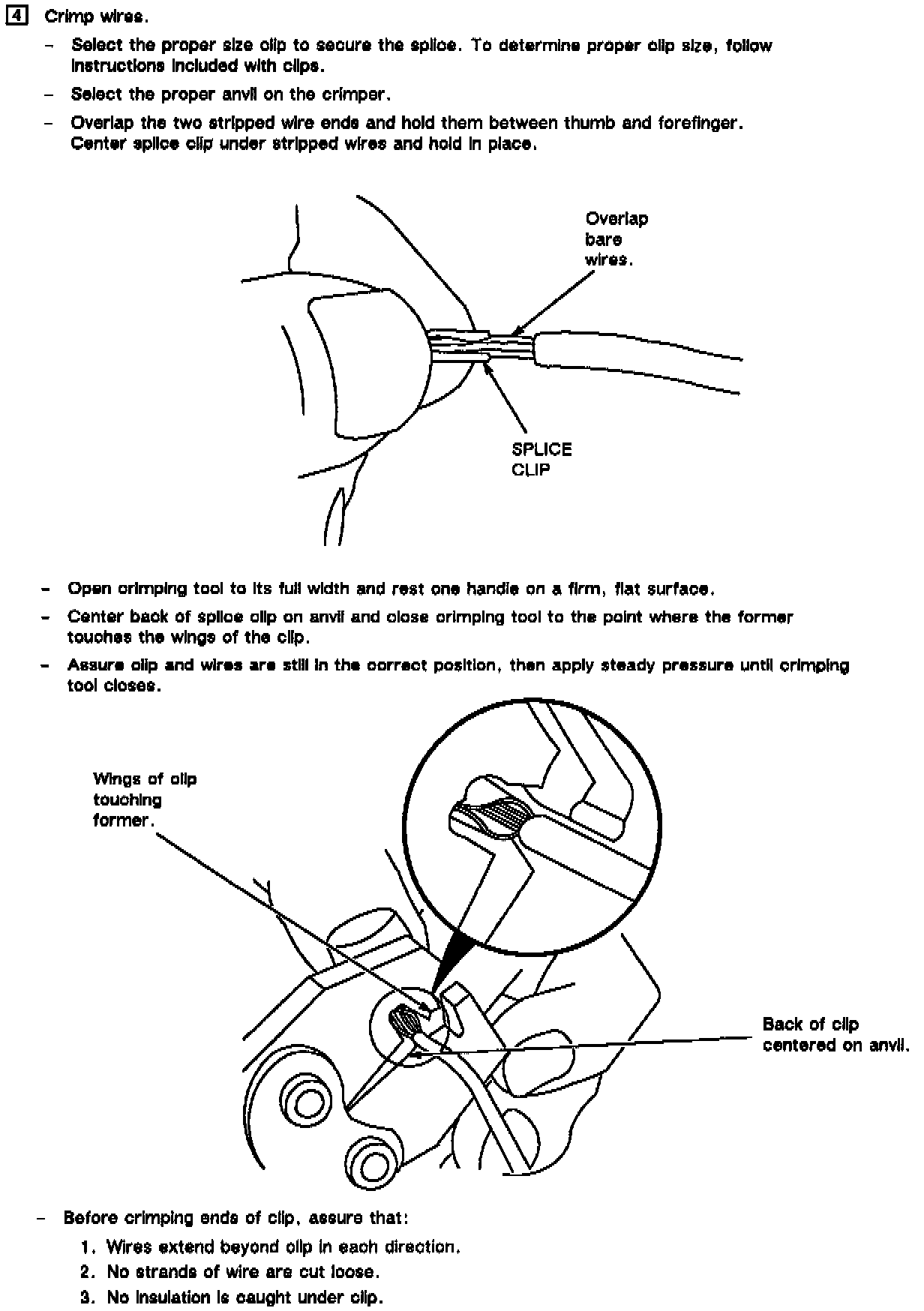

Splicing Copper Wire Using Spice Clips (continued):

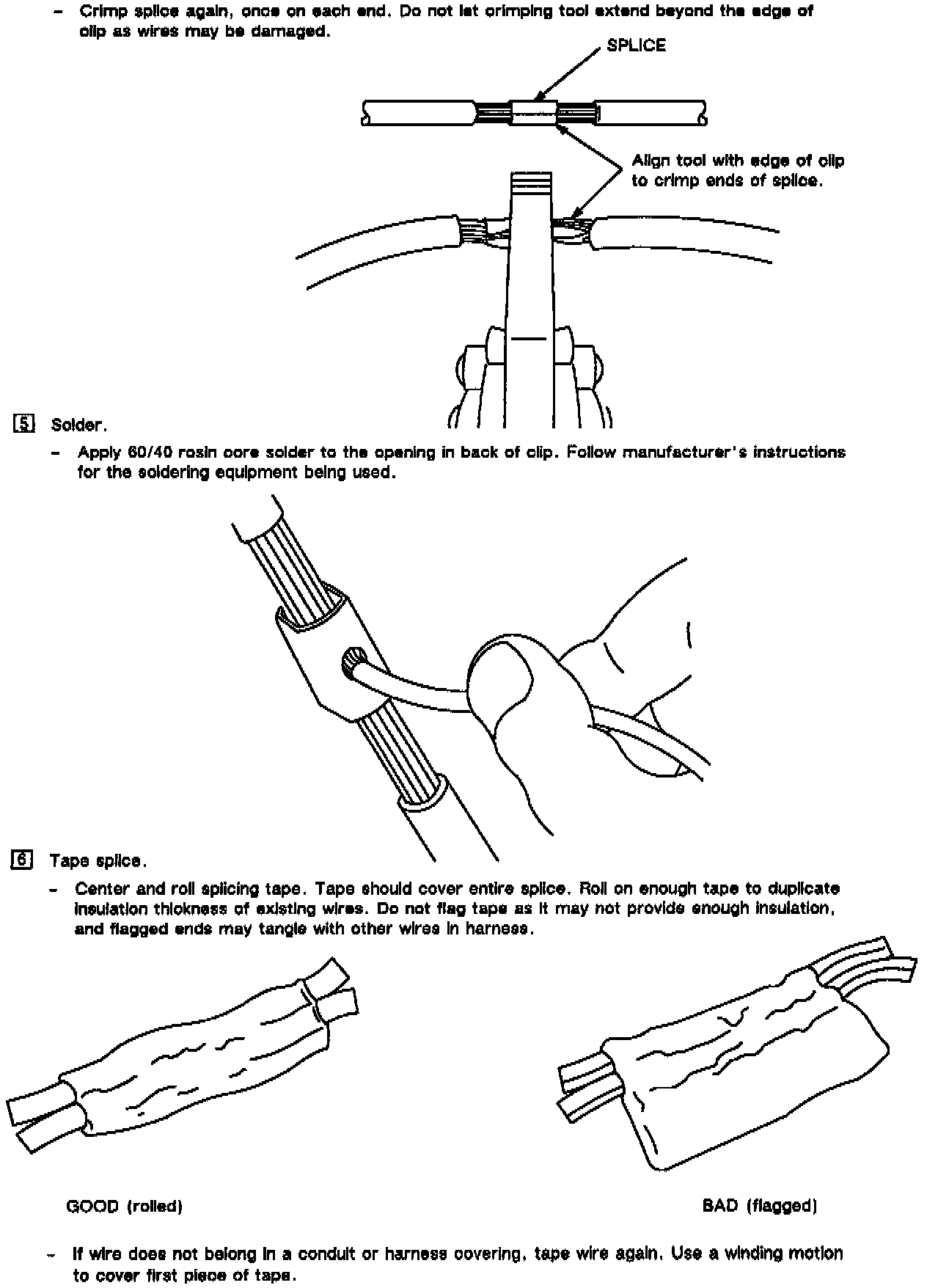

Splicing Copper Wire Using Splice Clips (continued):
