Home >> Buick >> 1993 >> Park Avenue Ultra V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Air Flow Meter/Sensor >> Locations

Air Flow Meter/Sensor: Locations

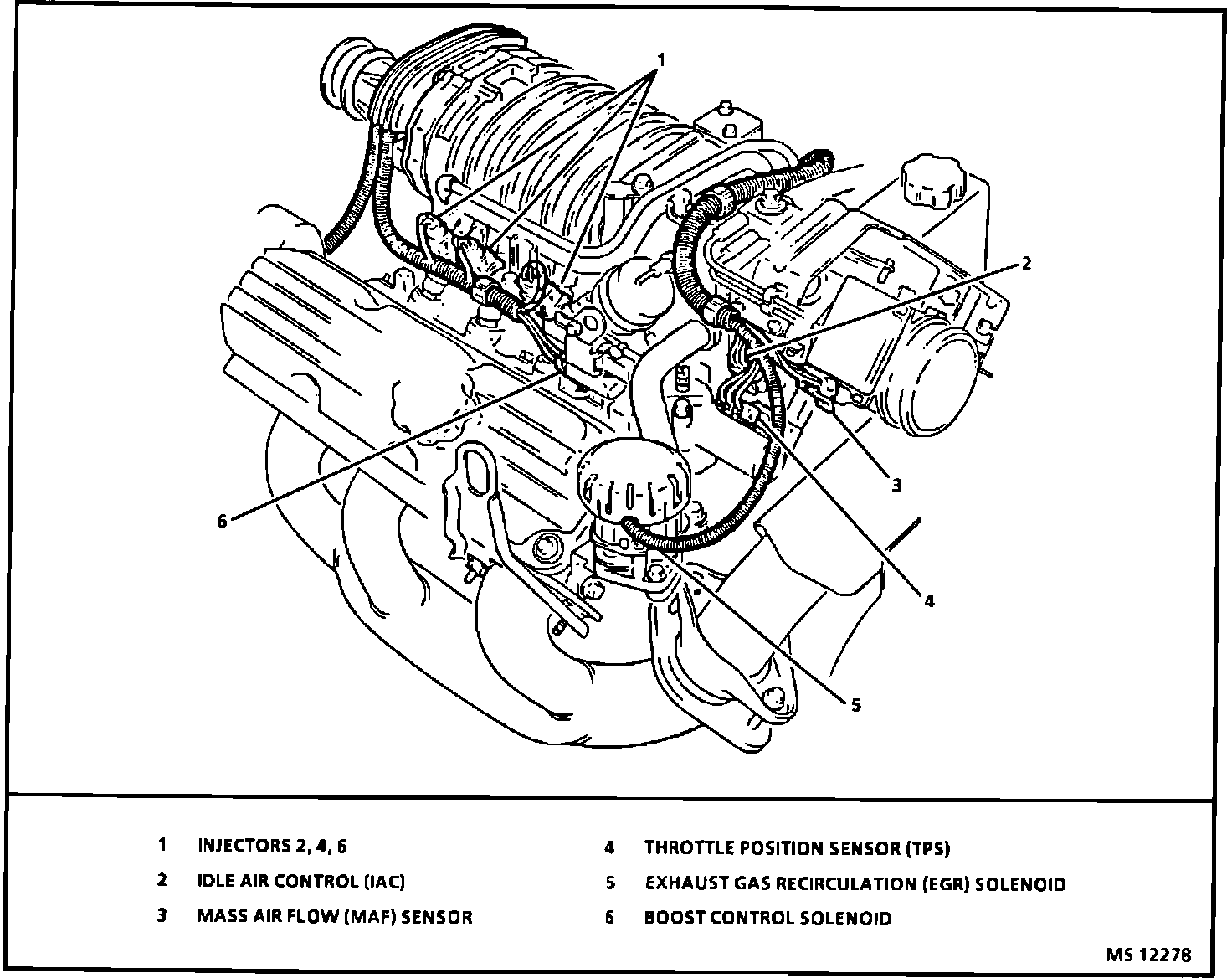

View - Left Front Of Engine:





LEFT FRONT VIEW OF ENGINE
