Home >> Buick >> 1993 >> Century L4-2.2L VIN 4 >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Engine Controls

Engine Controls

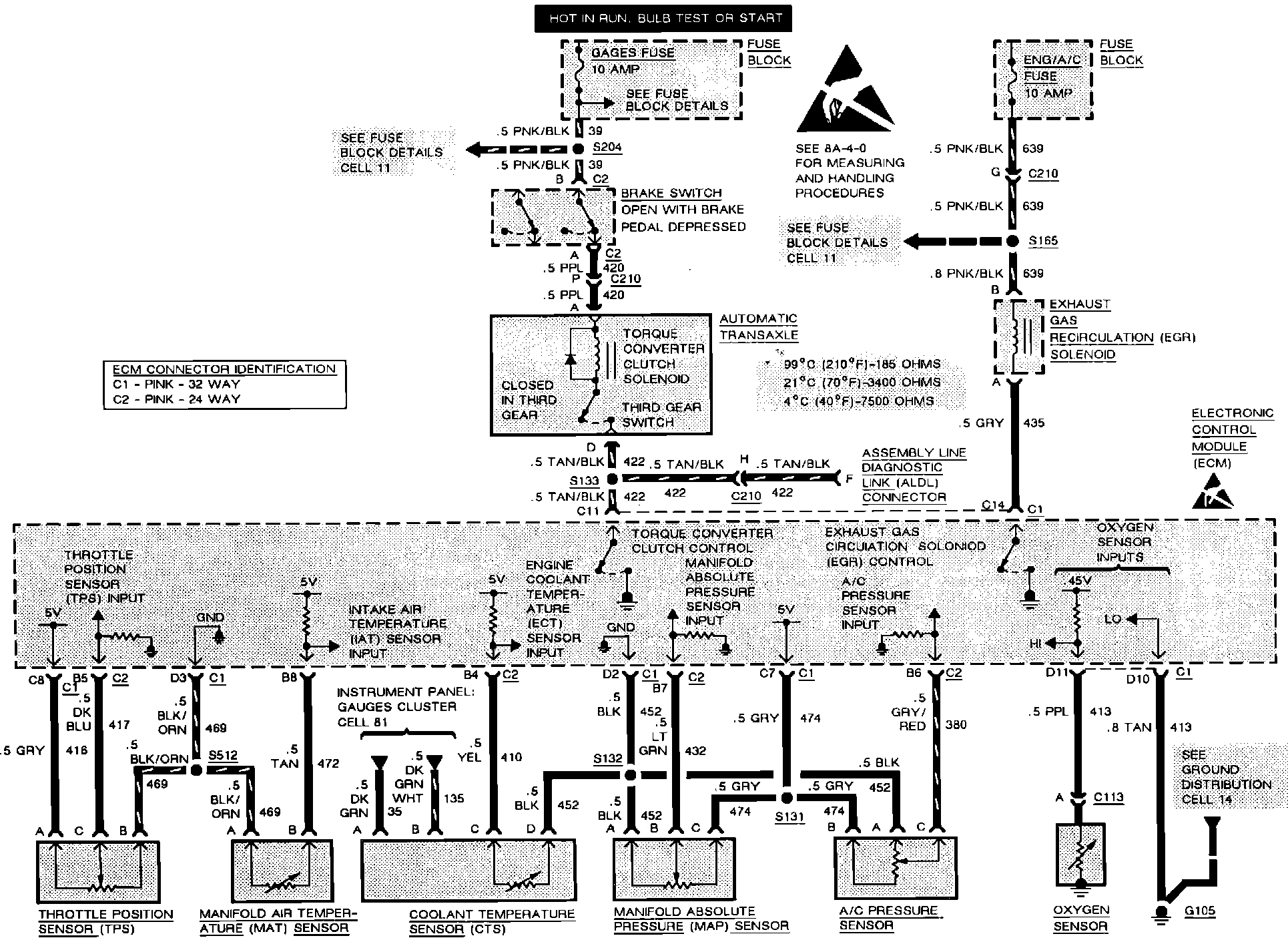

Engine Data Sensors And Automatic Transaxle Wiring Diagram:
