Home >> Buick >> 1993 >> Century L4-2.2L VIN 4 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Transmission Position Sensor/Switch >> Locations

Transmission Position Sensor/Switch: Locations

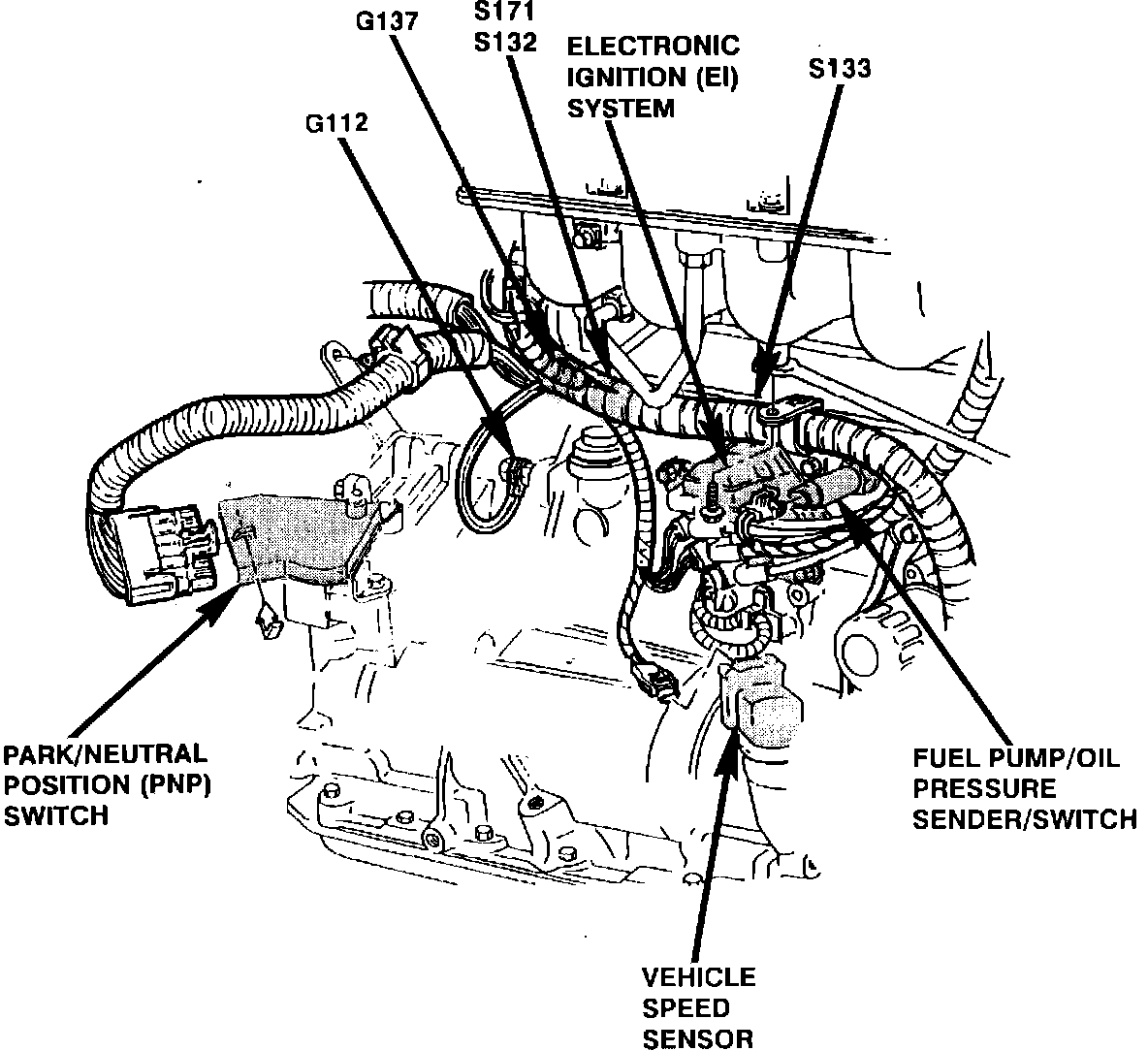

Rear Of Engine:






The Park/Neutral Position Switch is located in the RH rear of engine compartment, on transaxle.
