Direct Ignition System (DIS)

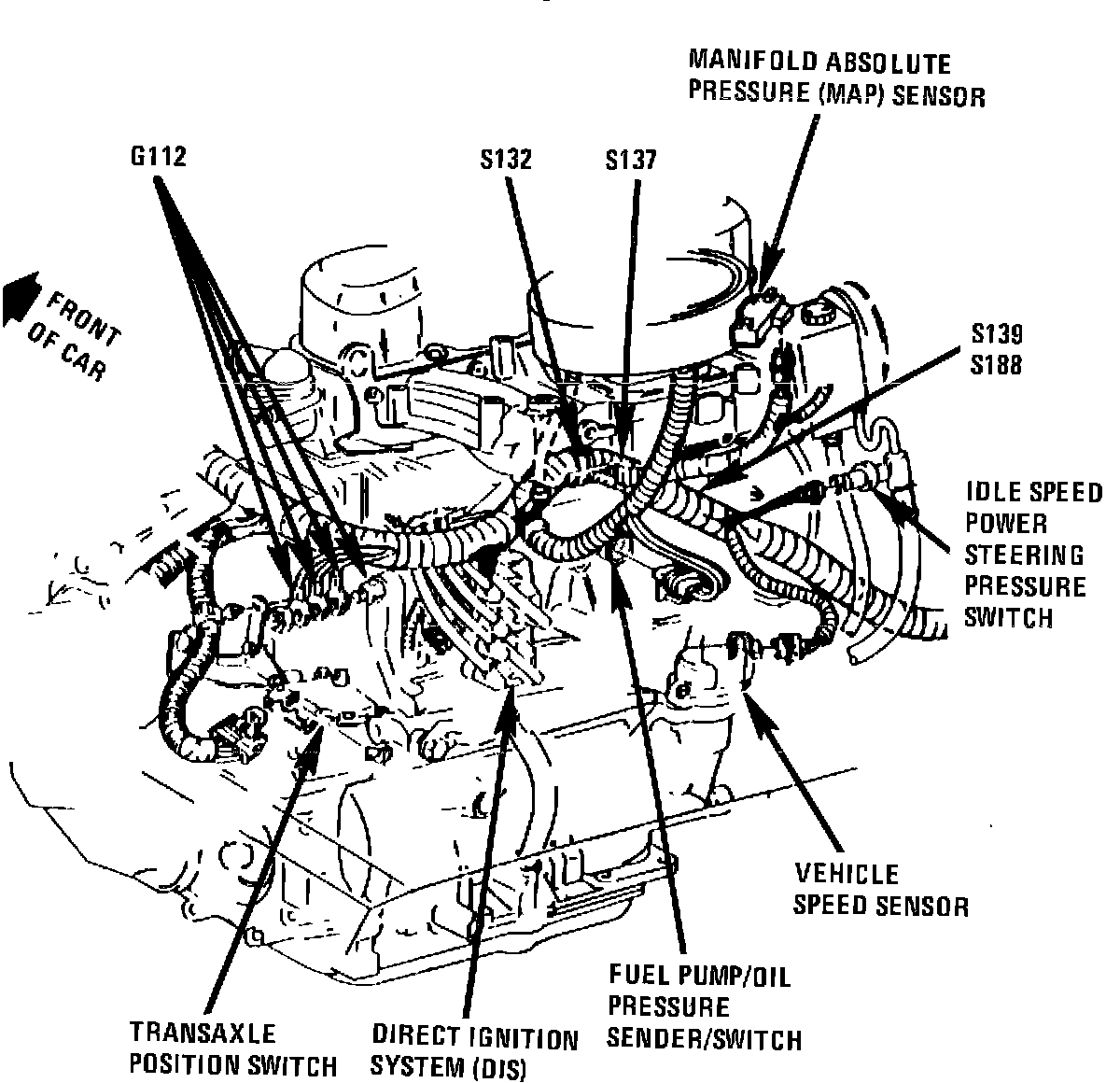

Component Location View Rear of VIN R Engine:





LH rear of engine, above transaxle
