Coolant Temperature Sensor/Switch (For Computer): Locations

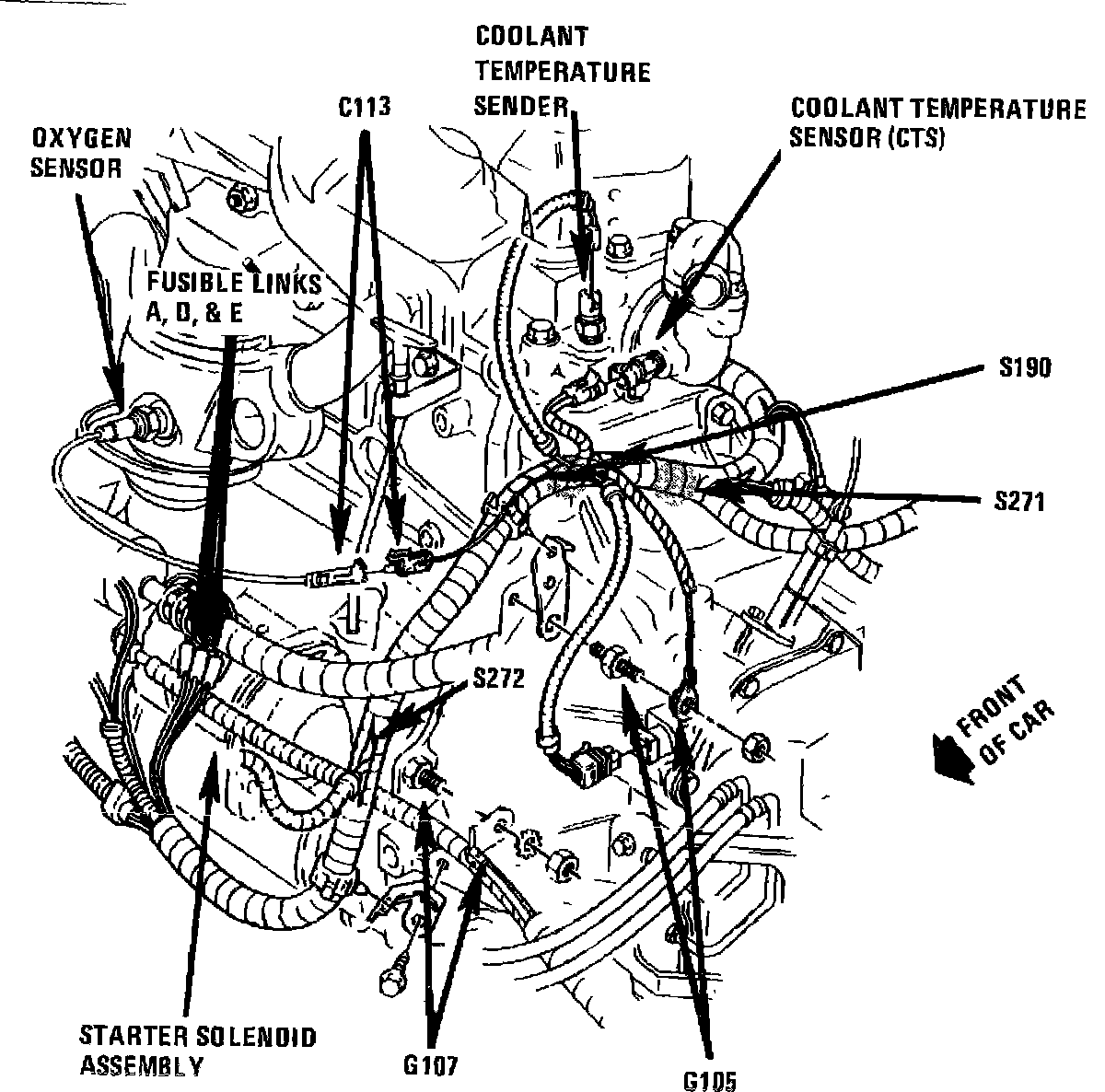

Component Location Views LH Front of VIN R Engine:
The Coolant Temperature Sensor is located on the top LH side of engine, at bottom of coolant outlet.
