Home >> Buick >> 1992 >> Century L4-151 2.5L VIN R TBI >> Repair and Diagnosis >> Diagrams >> Components >> Modules >> Cruise Control Module

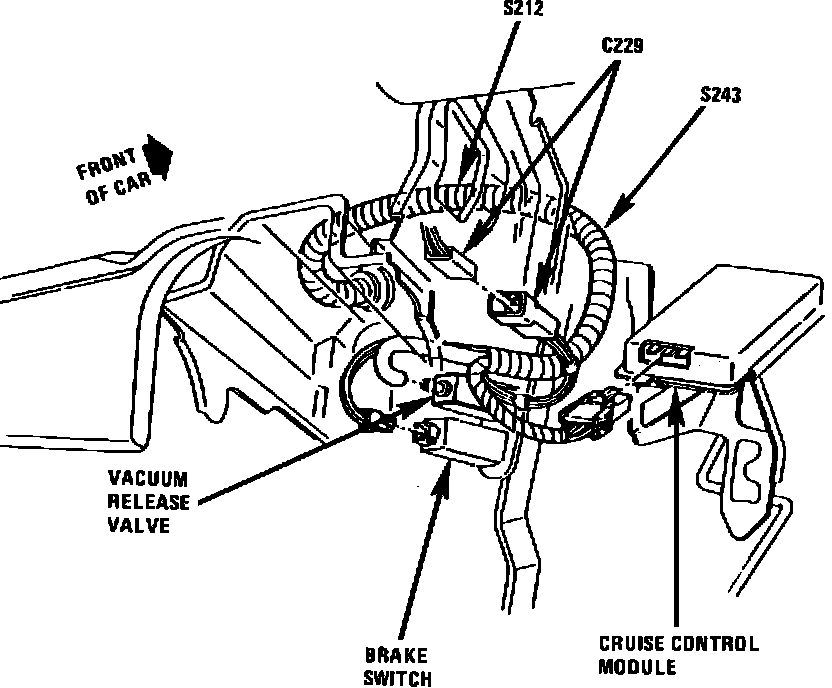

Cruise Control Module

Behind Lower LH Side Of I/P:




Behind LH Side Of I/P, Above Accelerator Pedal
