Home >> Buick >> 1991 >> Reatta V6-231 3.8L VIN L SFI >> Repair and Diagnosis >> Diagrams >> Components >> Modules >> Powertrain Control Module (PCM)

Powertrain Control Module (PCM)

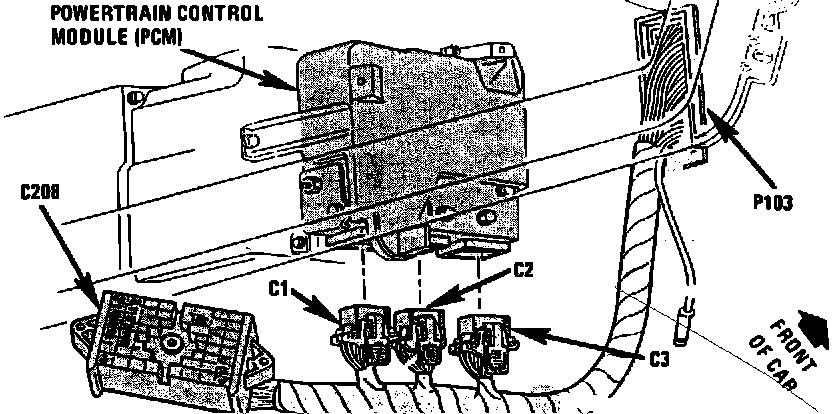

Behind RH Side Of I/P.:

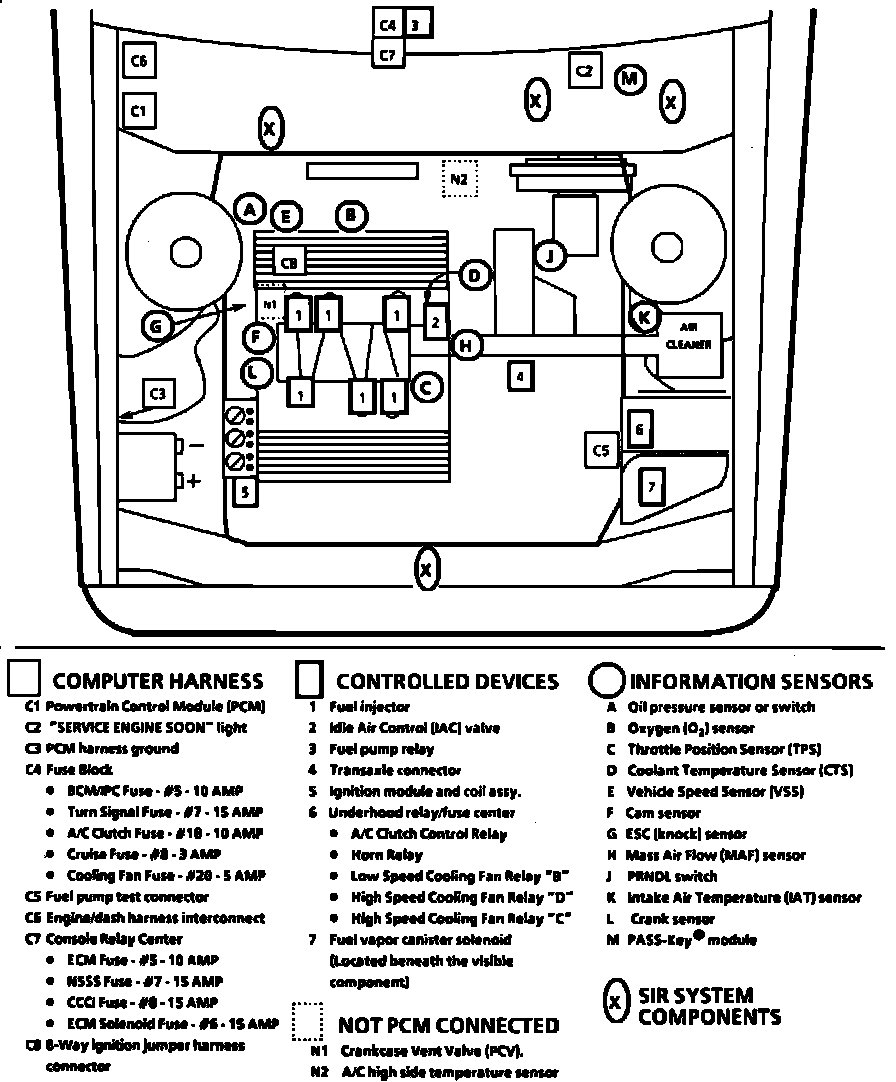

Engine Compartment Component Location.:





Behind RH Side Of I/P, Near Shroud

Applicable to: Reatta/Riviera
