Resistor Module
Resistor Module

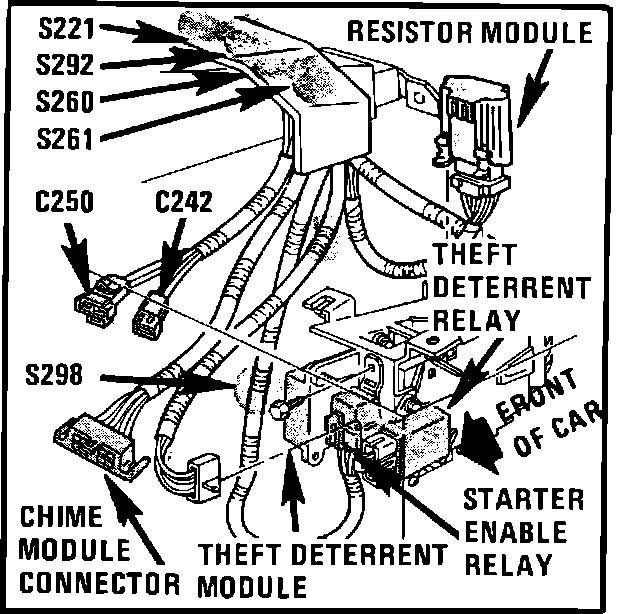

Behind LH Side Of I/P:
Behind LH Side Of I/P, Left Of Steering Column
Applicable to: 1990 Reatta & Riviera
