Engine Specifications

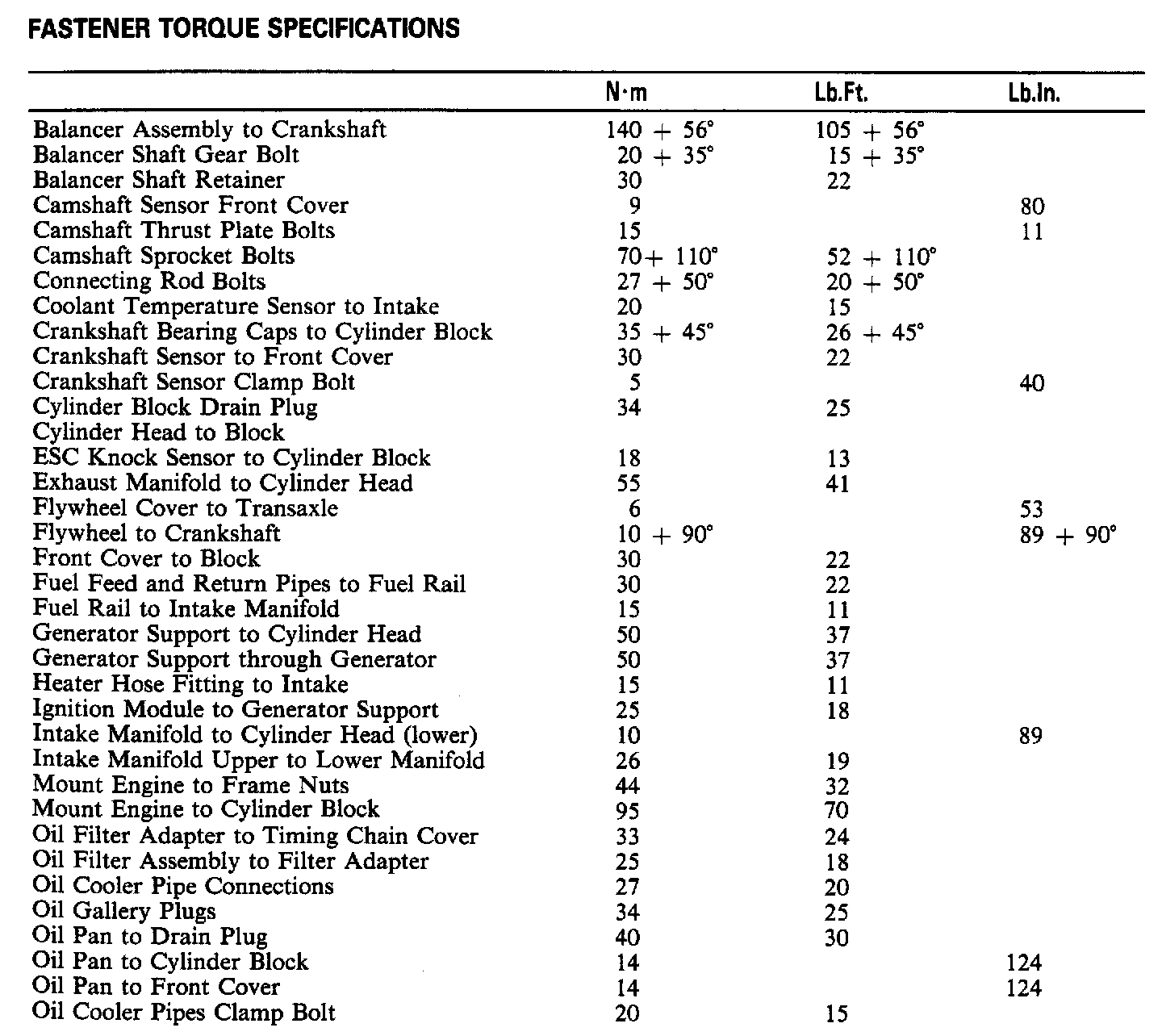

Torque Specifications:

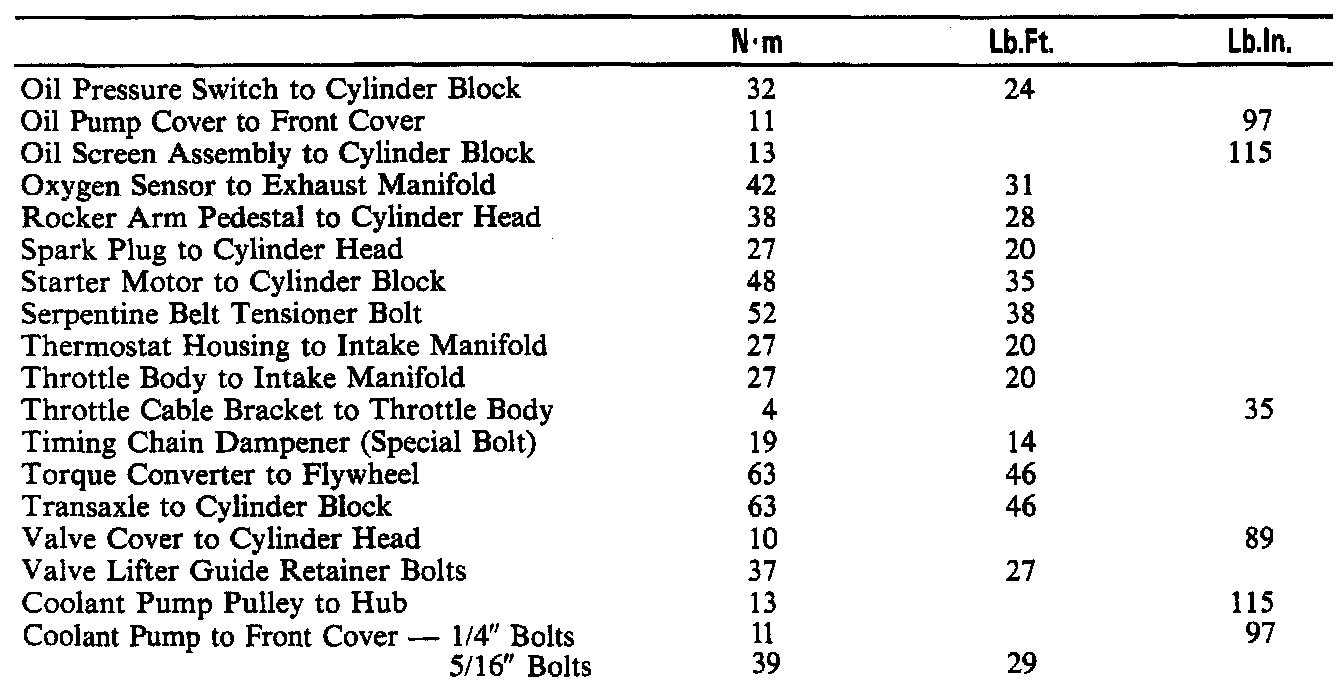

Continued Torque Specifications:





Intake Manifold Sequence:





Cylinder Head Sequence:
