Home >> Buick >> 1990 >> Regal V6-231 3.8L VIN L SFI >> Repair and Diagnosis >> Diagrams >> Components >> Modules >> Passive Restraint Control Module

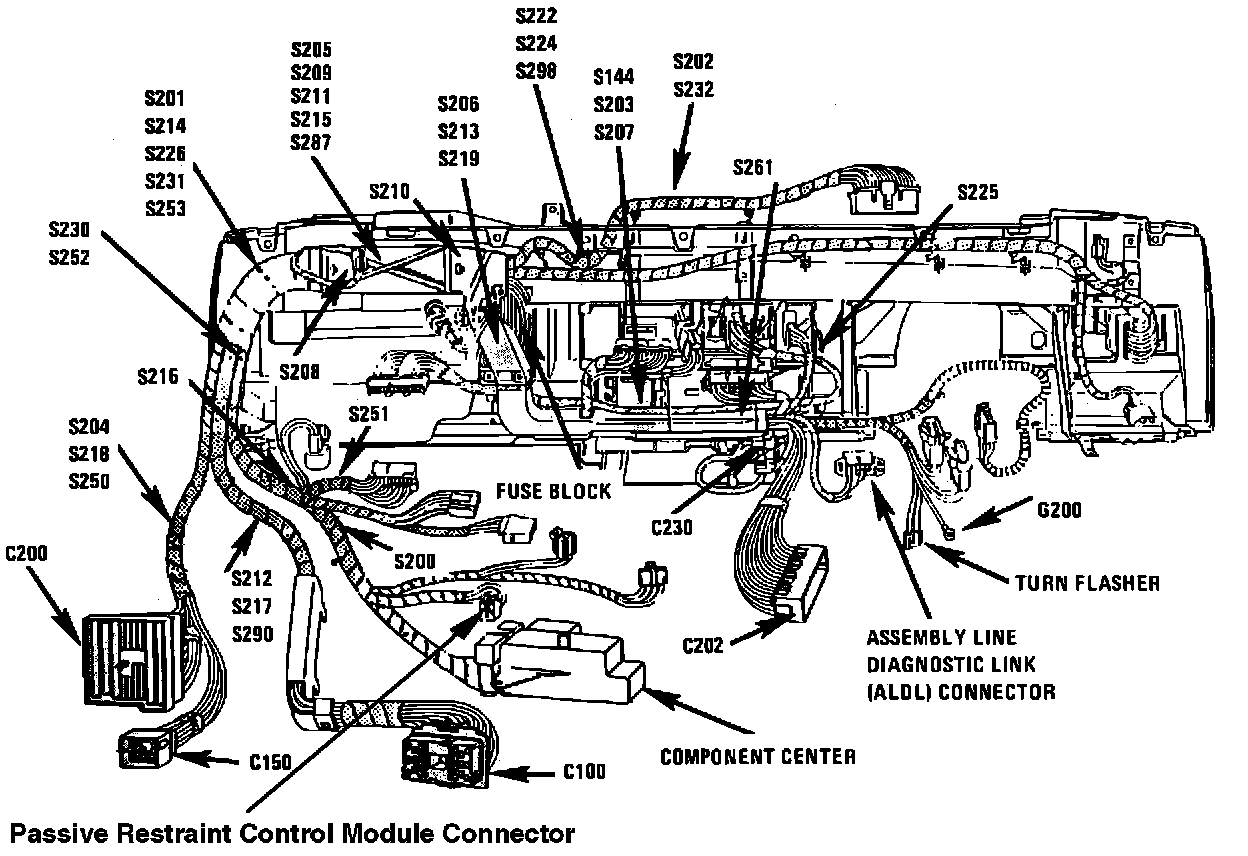

Passive Restraint Control Module






The passive restraint control module is located behind the RH side of instrument panel.
