Home >> Buick >> 1990 >> Electra V6-231 3.8L VIN C SFI >> Repair and Diagnosis >> Diagrams >> Components >> Miscellaneous Components >> Electronic Level Control Compressor

Electronic Level Control Compressor

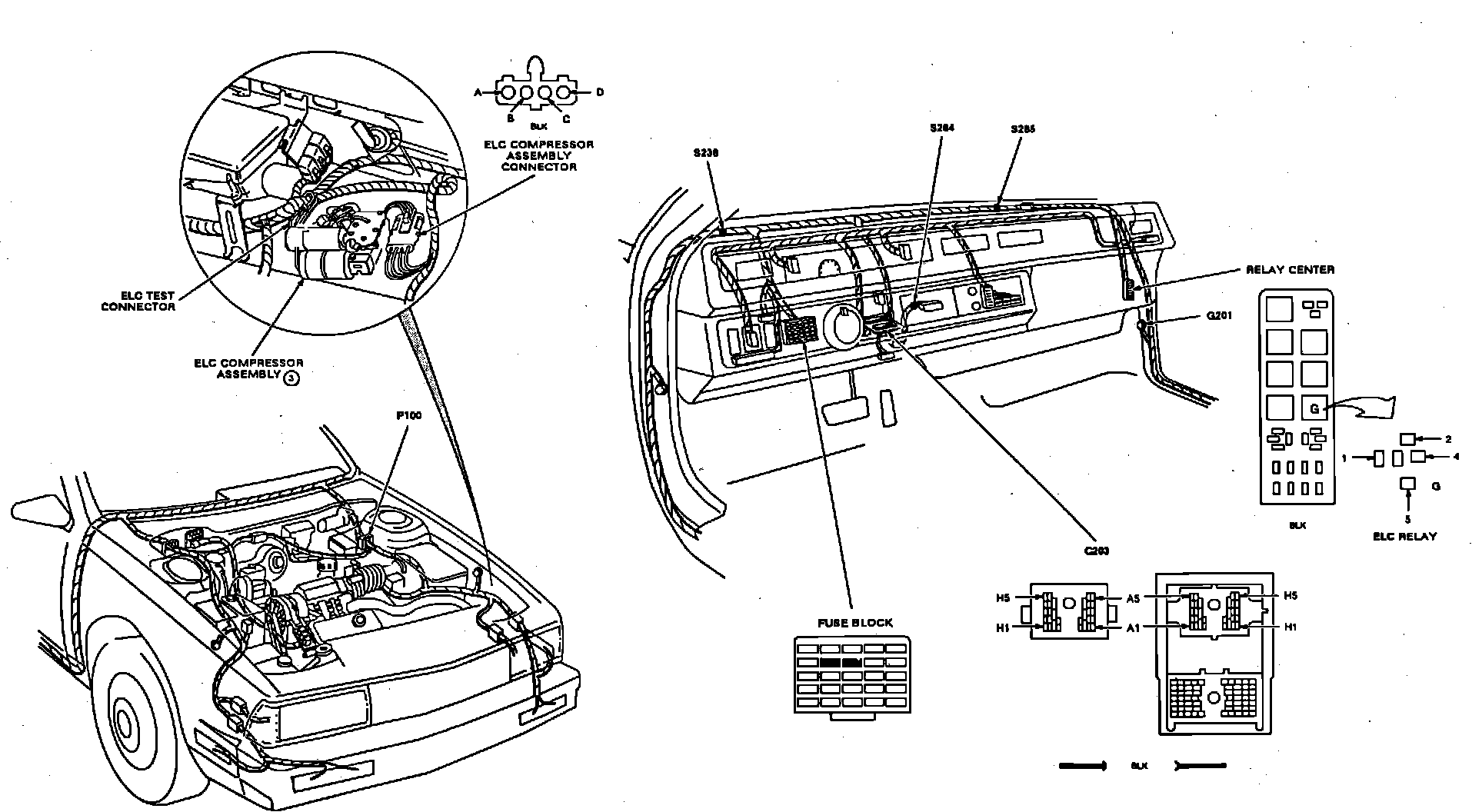

Electronic Level Control Components Location (Engine & Passenger Compartments):




Engine Compartment, Front Of LH Wheelwell
