Compressor Control Relay

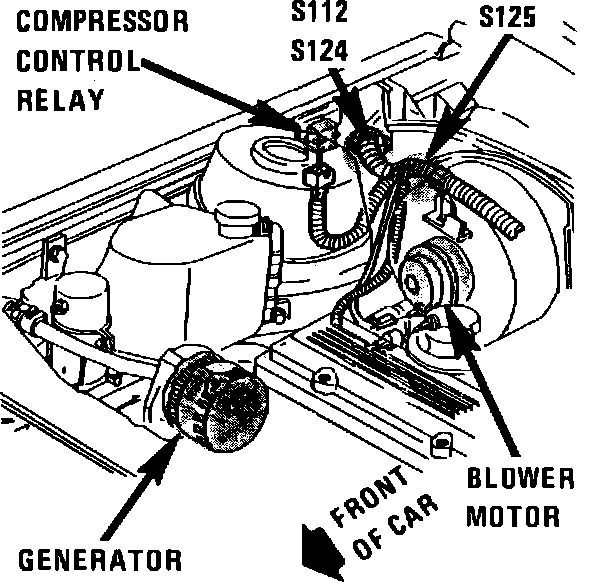

RH Rear Corner Of Engine Compartment.:




RH Rear Side Of Engine Compartment

Applicable to: Skyhawk
