Computer Controlled Coil Ignition Module

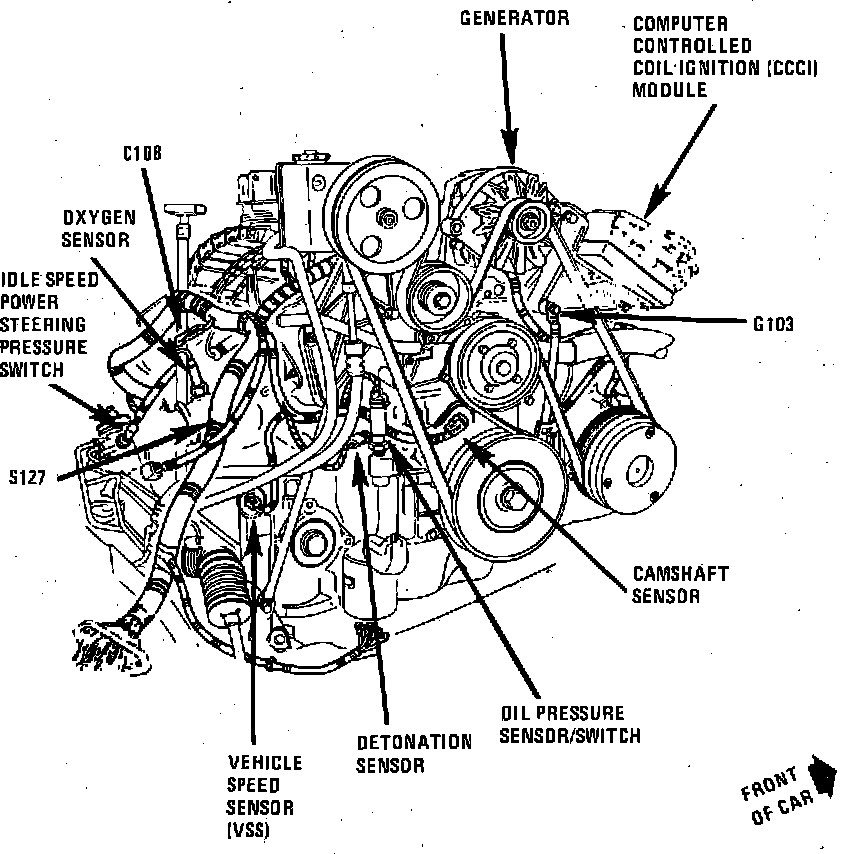

Computer Controlled Coil Ignition Module
RH Front Of Engine.:
On RH Top Of Left Valve Cover
Applicable to: Reatta, Riviera, Toronado & Trofeo
