Home >> Buick >> 1988 >> Reatta V6-231 3.8L VIN C SFI >> Repair and Diagnosis >> Diagrams >> Components >> Miscellaneous Components >> Cathode Ray Tube Controller

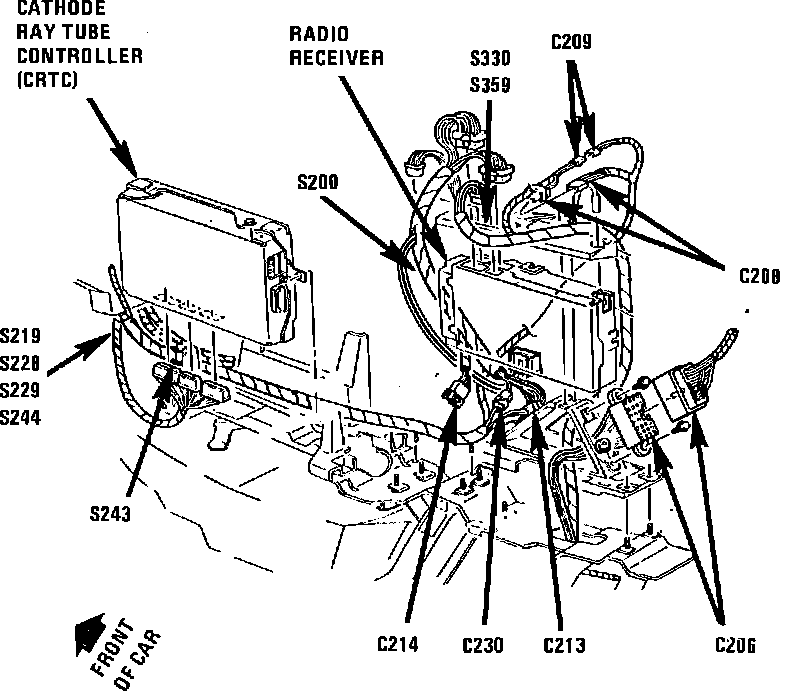

Cathode Ray Tube Controller

In Center Console.:




Behind Front Of Console

Applicable to: Reatta & Riviera
