Home >> Buick >> 1987 >> Regal V6-231 3.8L VIN A 2-bbl >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Specifications >> VIN A (3.8L)

VIN A (3.8L)

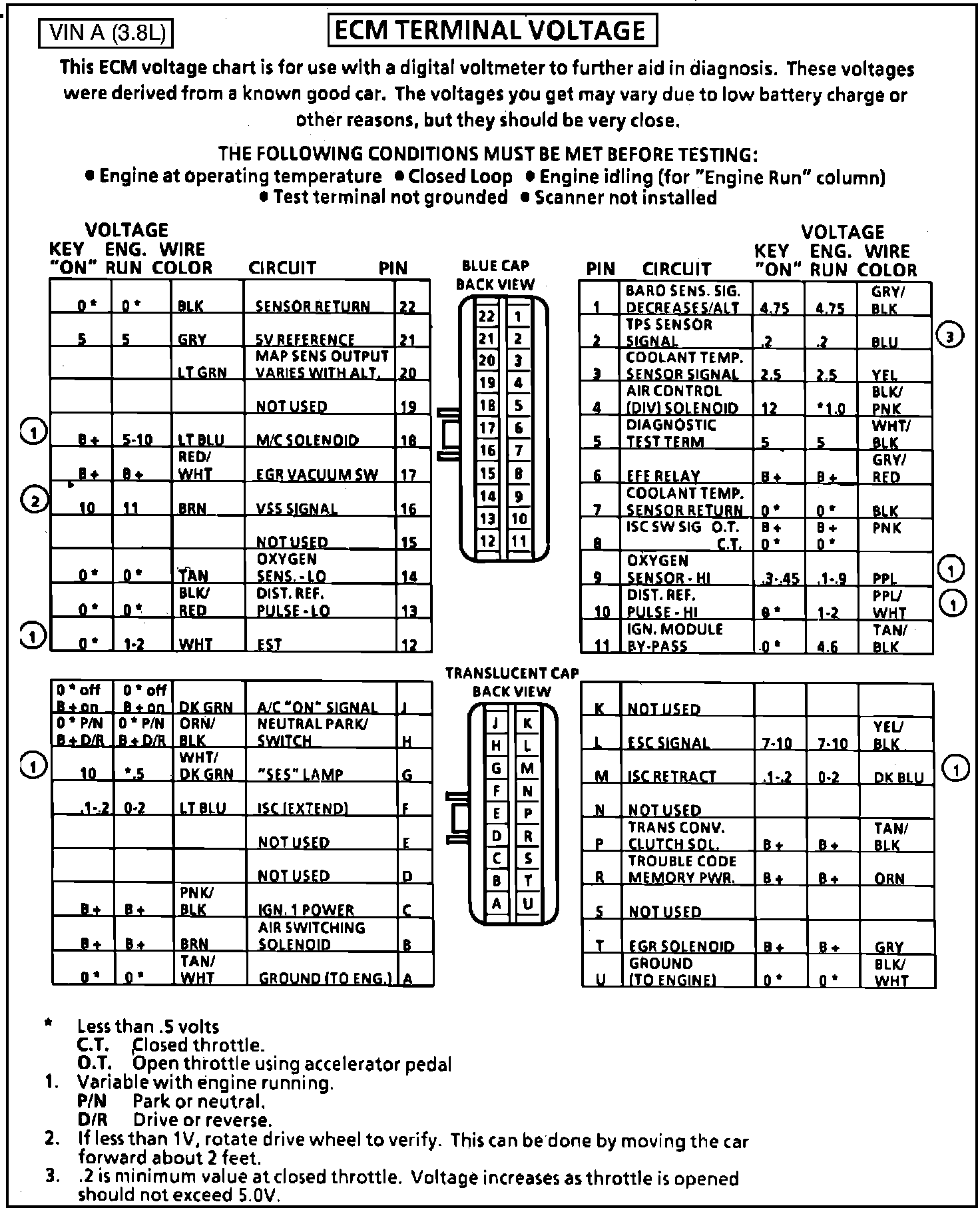

Fig. 038 - ECM Connector Terminal Identification & Voltage Specifications.:
