Engine Specifications

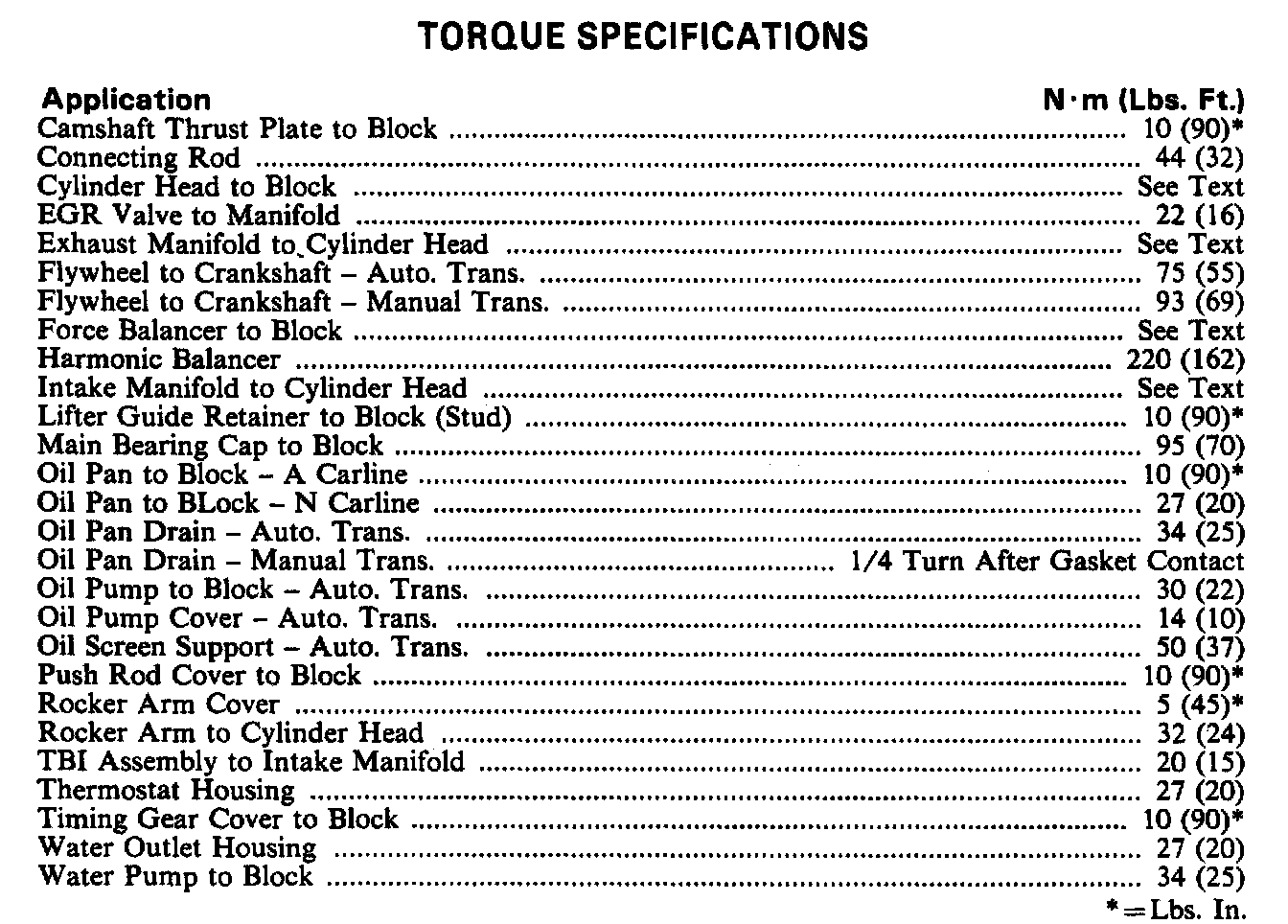

Torque Specifications:

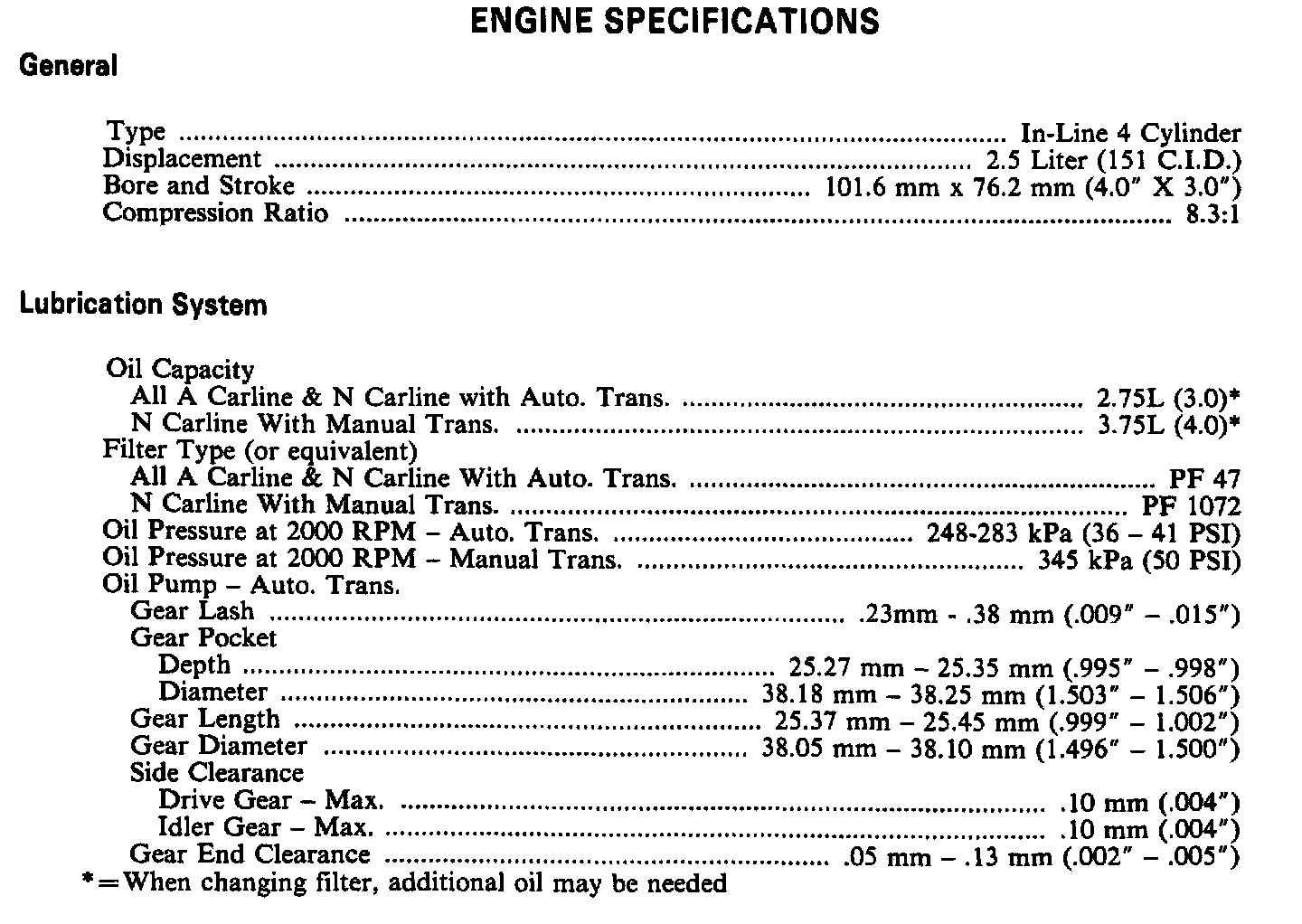

Engine Specifications:

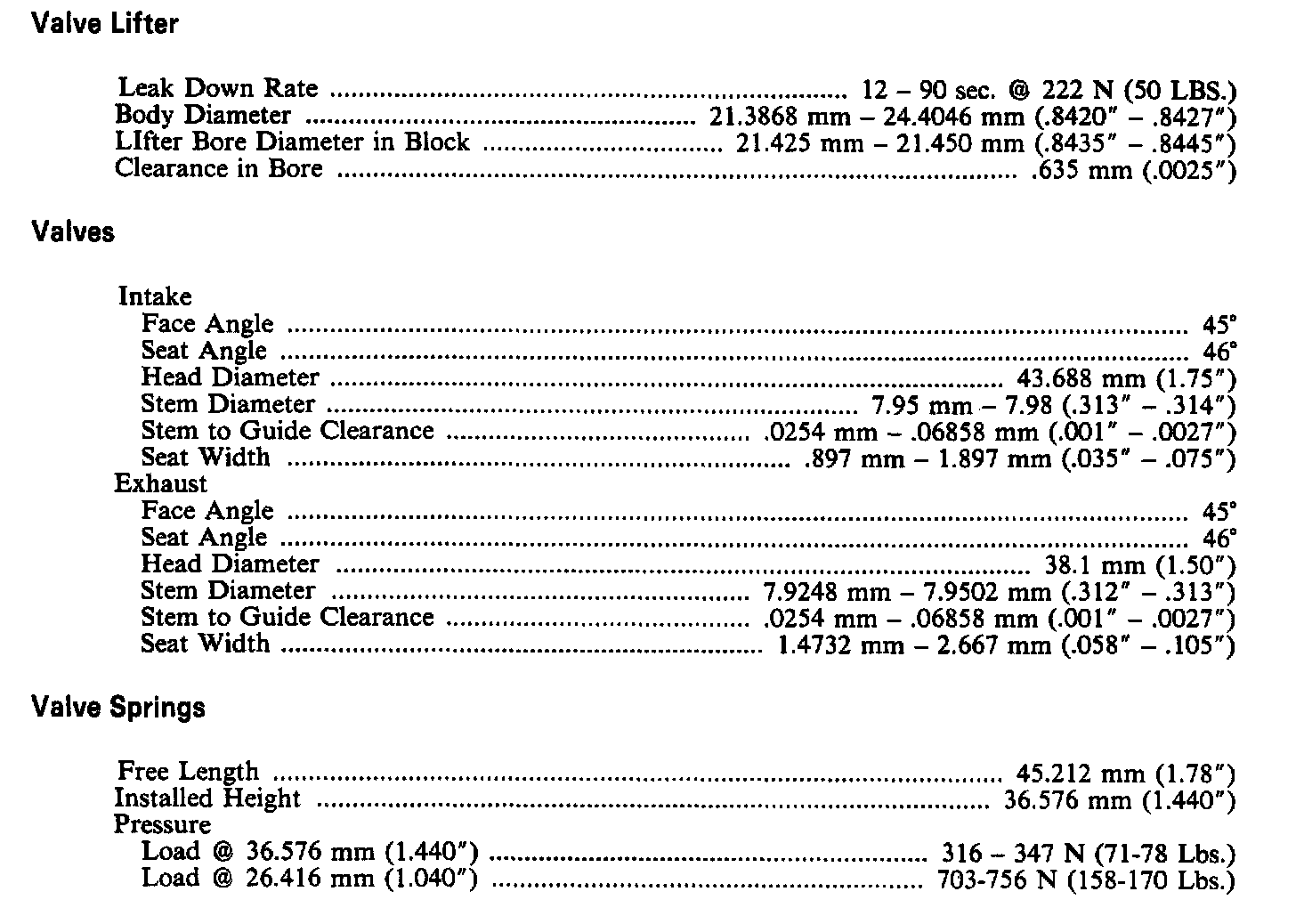

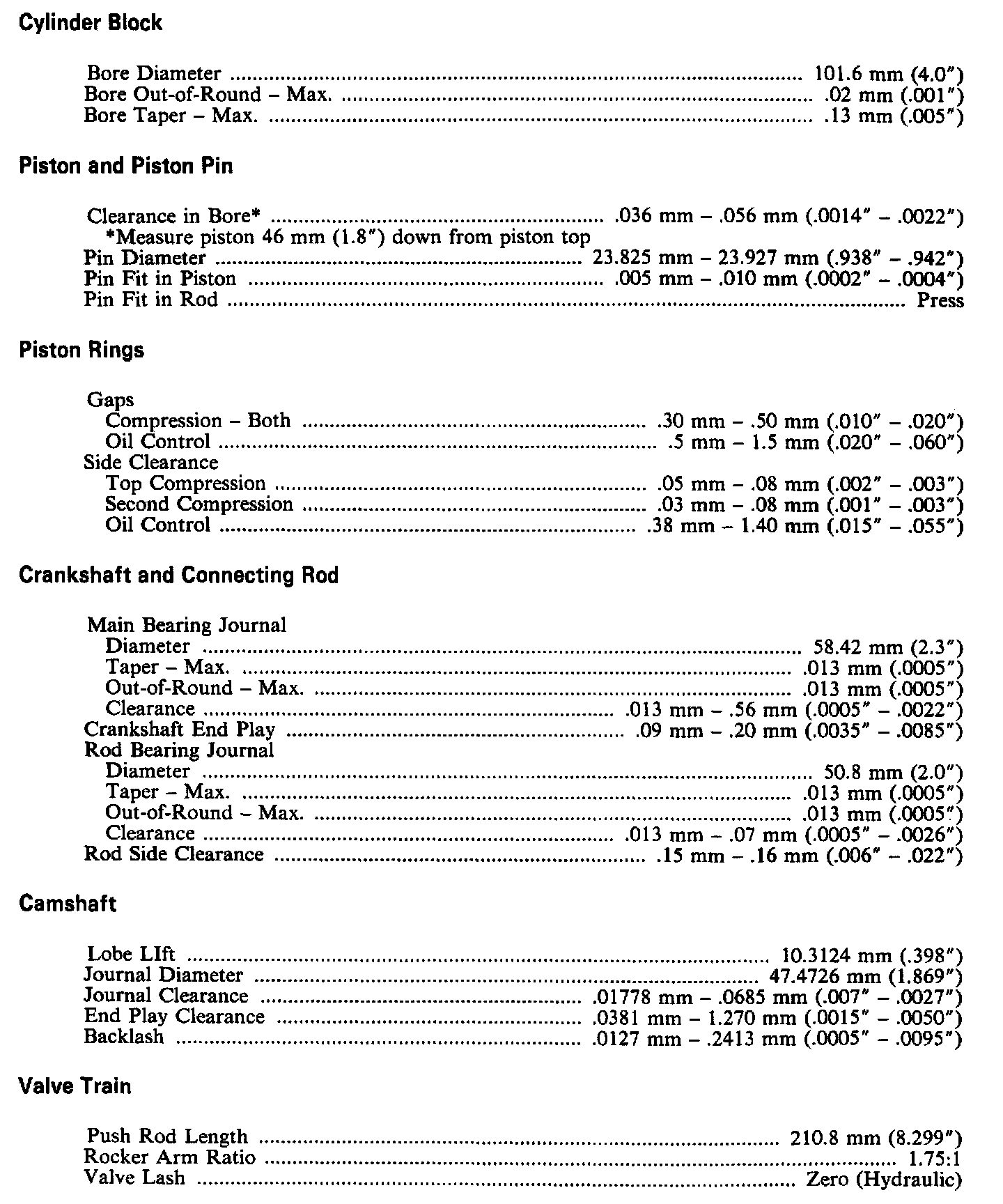

Continued Engine Specifications:




Continued Engine Specifications:

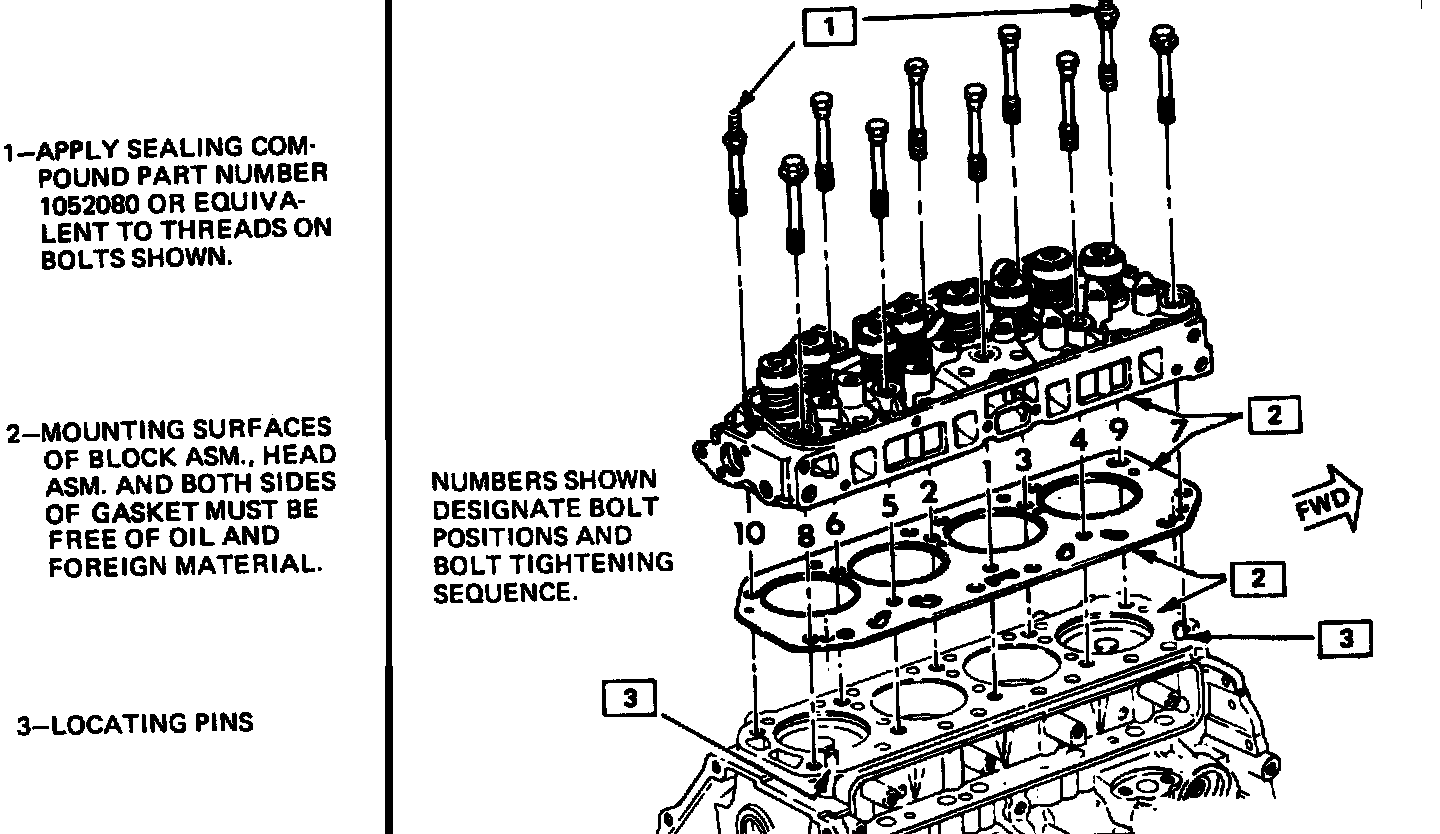

Cylinder Head Sequence:
