Electronic Spark Control Module: Testing and Inspection

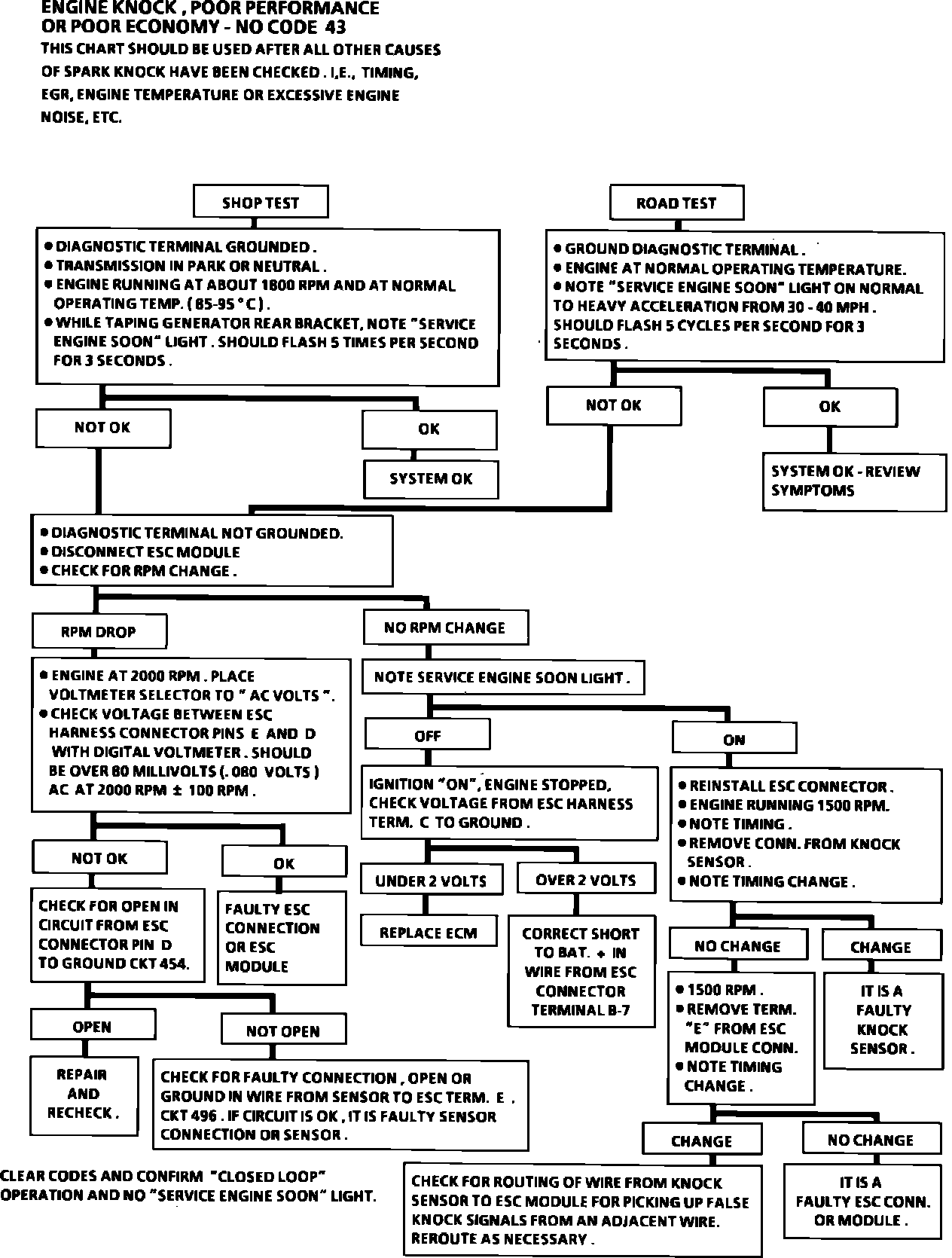

Fig. 6d ESC performance chart (1985-86 4-110/1.8L port injected models):
