Skyhawk L4-112 1.8L Turbo VIN J FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Relays
>>
Compressor Control Relay

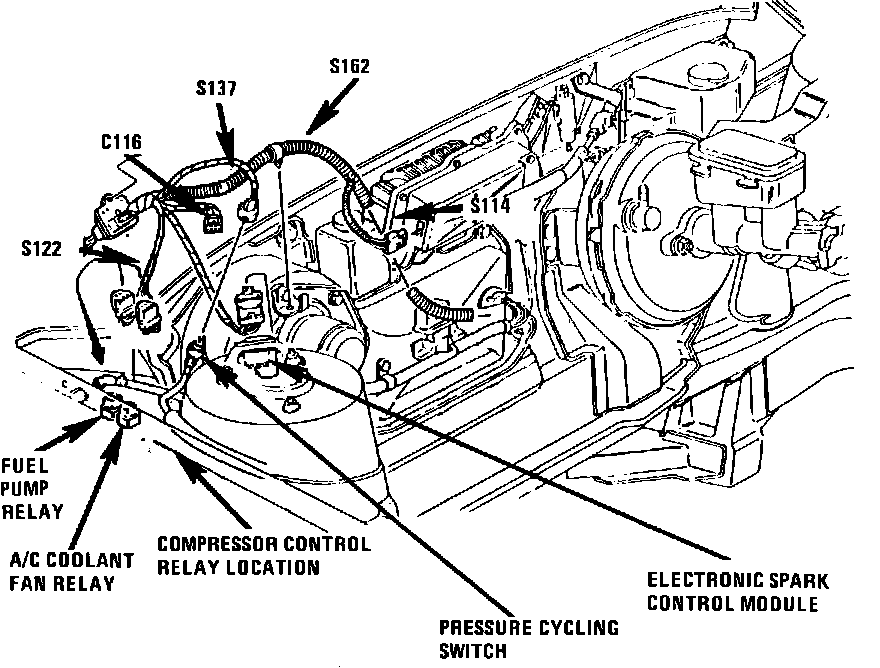

Compressor Control Relay
Front Of Dash.:
Engine Compartment, Behind RH Shock Tower
Applicable to: With 4-110/1.8L, VIN J
