Home >> Buick >> 1985 >> Skyhawk L4-121 2.0L VIN P TBI >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications

System Specifications

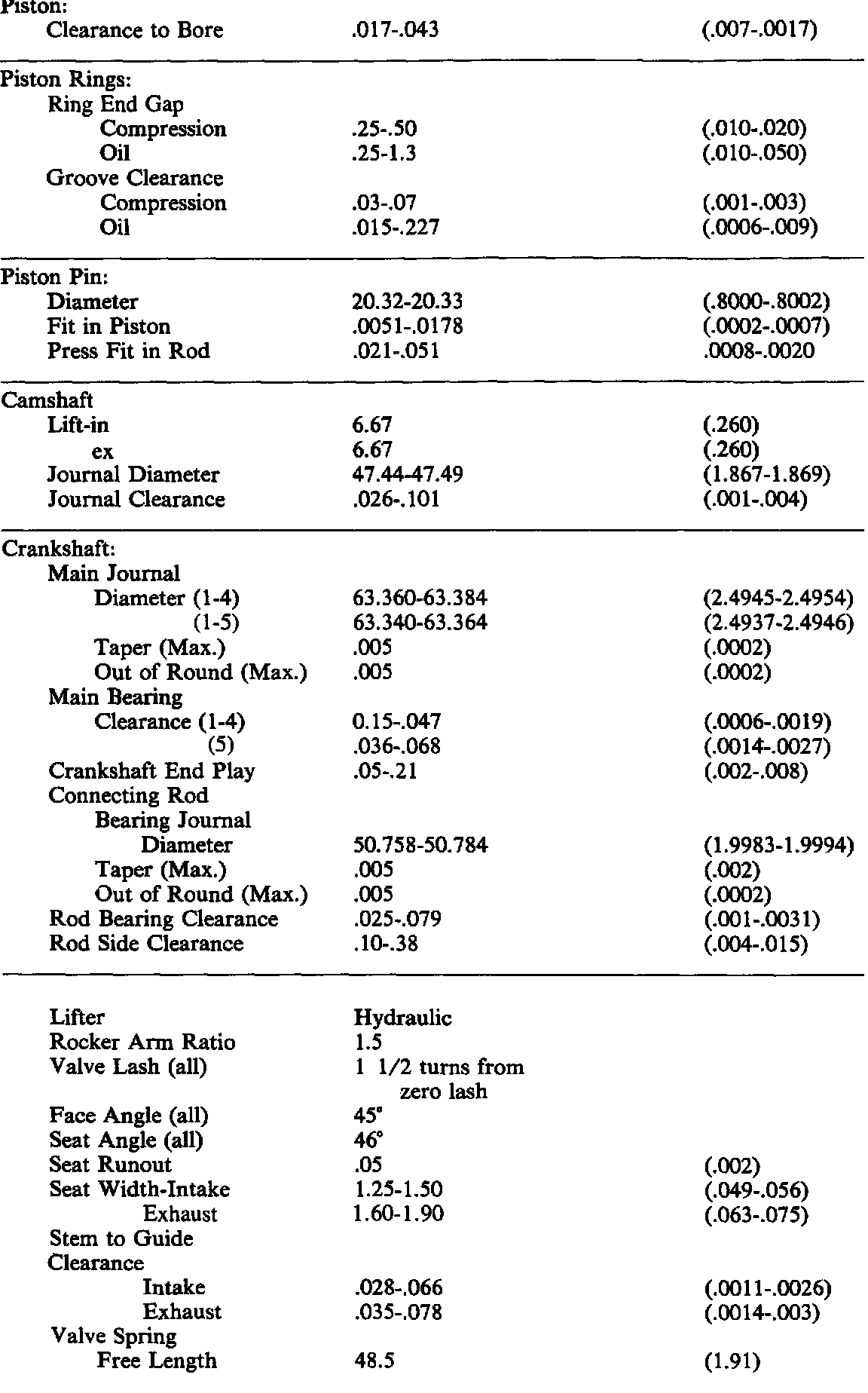

Engine Specifications:

Continued Engine Specifications:

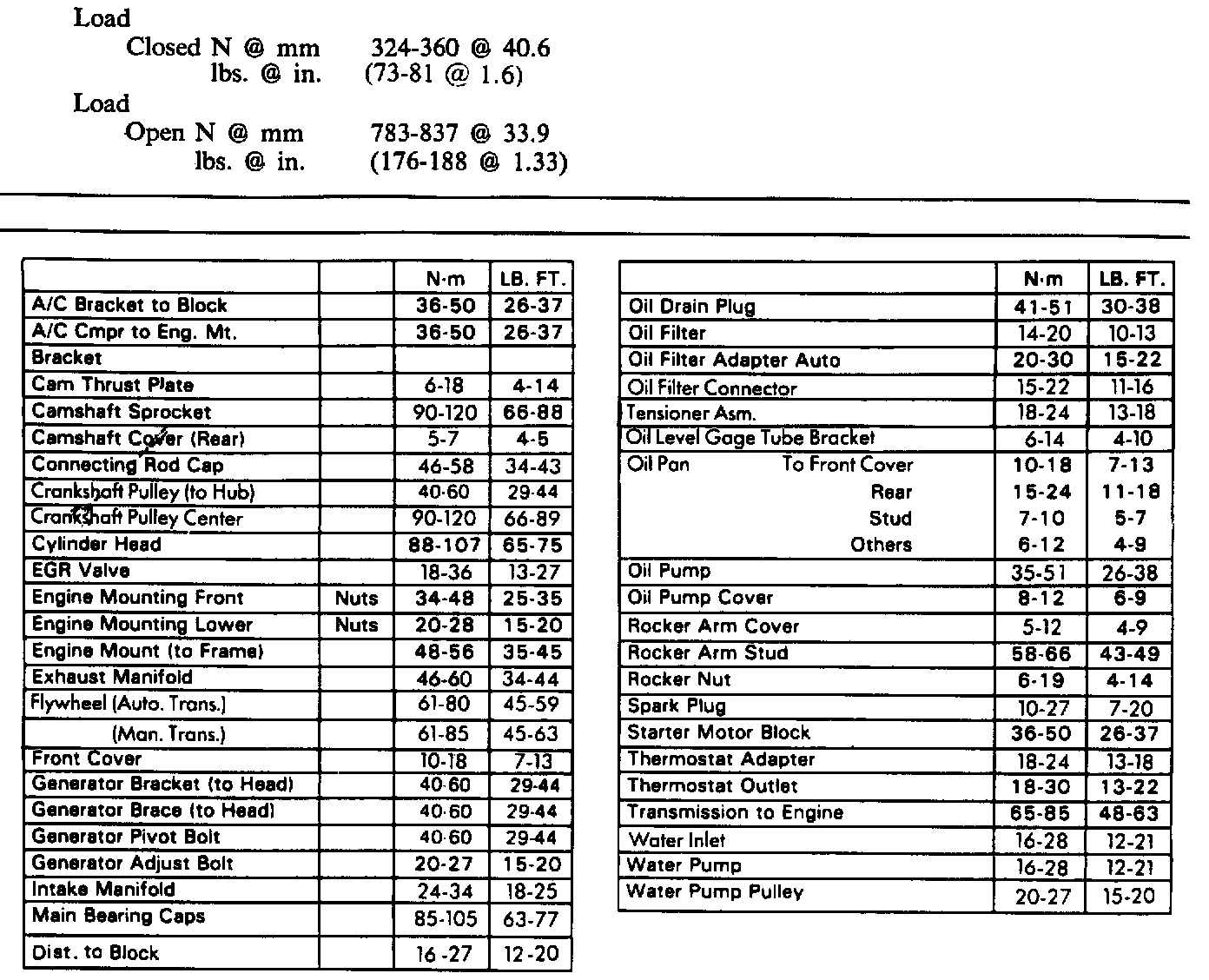

Continued Engine & Torque Specifications:

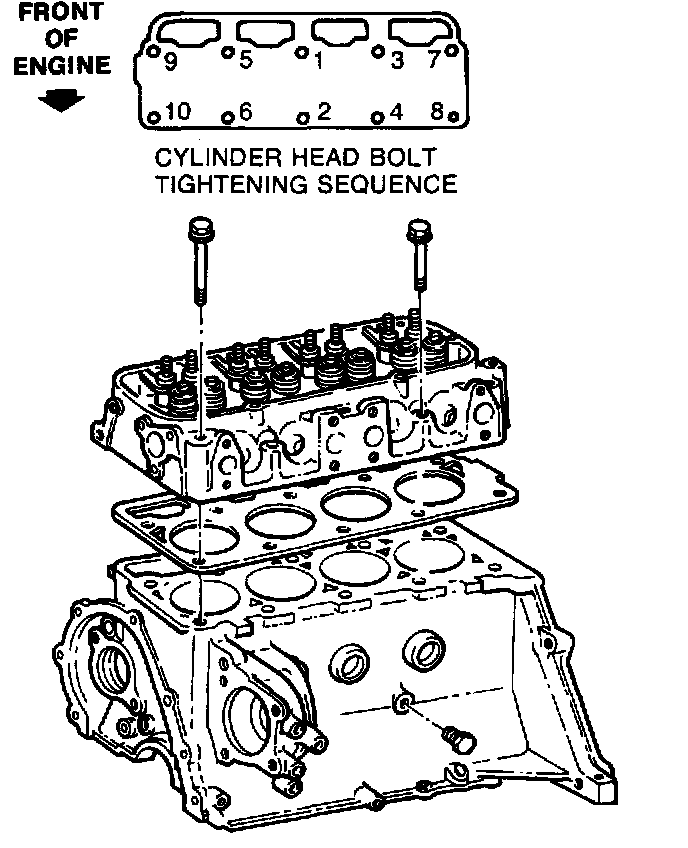

Cylinder Head Sequence:
