Home >> Buick >> 1985 >> Riviera V8-350 5.7L DSL >> Repair and Diagnosis >> Powertrain Management >> Glow Plug System >> Glow Plug Control Switch >> Locations >> Glow Plug Controller

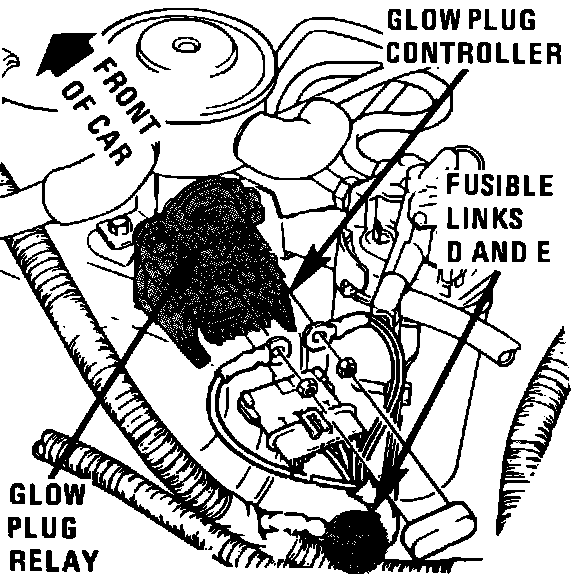

Glow Plug Controller

Top Rear Of Diesel Engine.:




To Right Of LH Valve Cover

Applicable to: Riviera
