Home
>>
Buick
>>
1985
>>
Regal V6-260 4.3L DSL
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Miscellaneous Components
>>
Throttle Servo

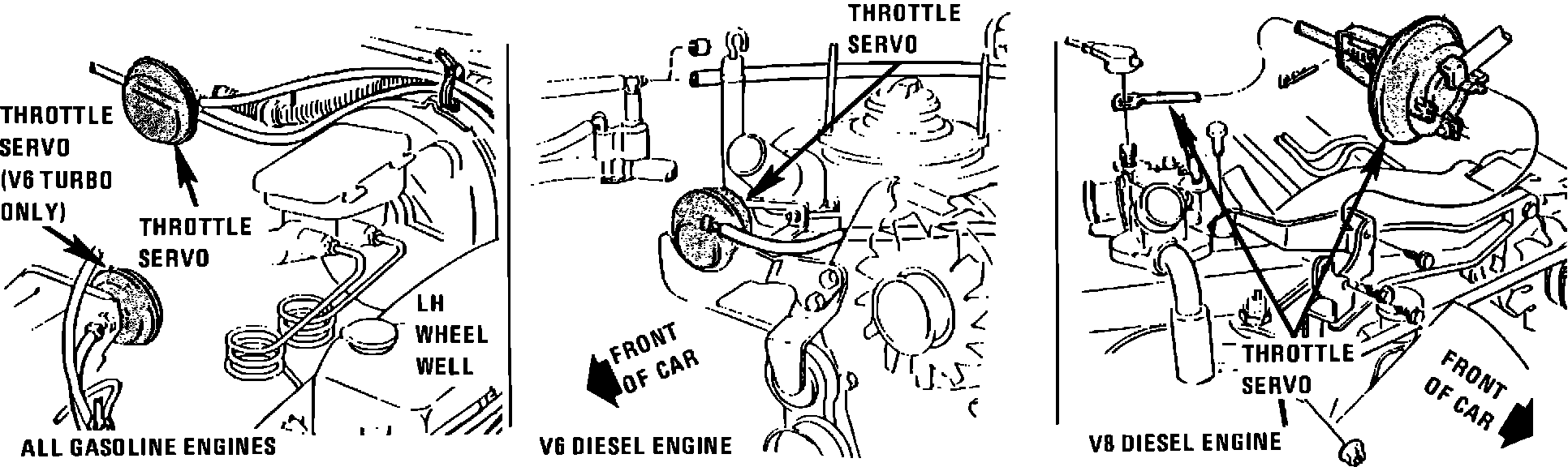

Throttle Servo
Top Of Engine.:
Front Of Engine
Applicable to: 1985 Regal
