Home >> Buick >> 1985 >> Electra V6-260 4.3L DSL >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Coolant Temperature Sensor/Switch (For Computer) >> Locations >> Temperature Switch

Temperature Switch

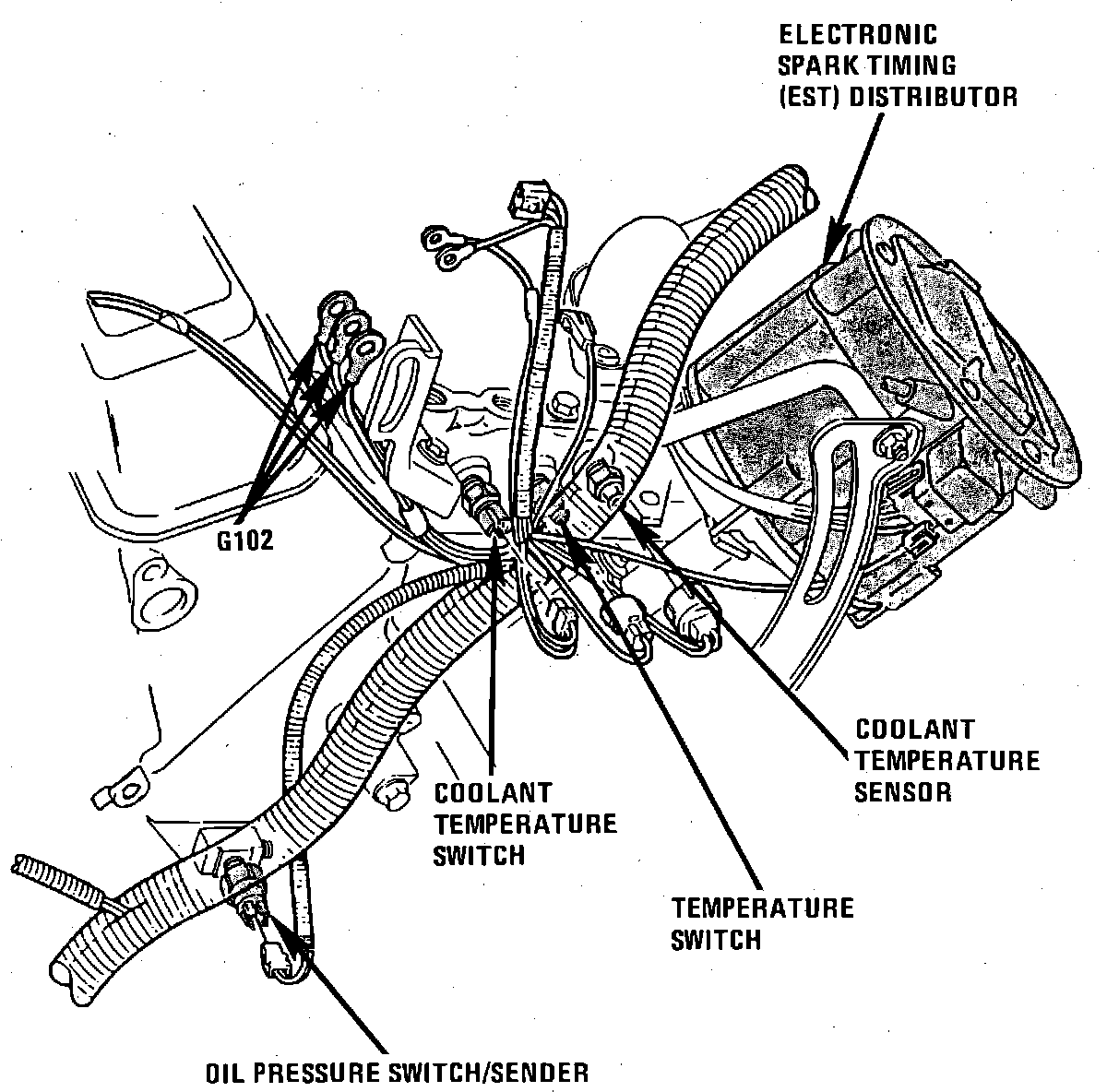

Distributor Location.:




Top RH Of Engine, Behind Distributor

Applicable to: Electra & 98
