Home >> Buick >> 1985 >> Electra V6-260 4.3L DSL >> Repair and Diagnosis >> Diagrams >> Components >> Miscellaneous Components >> Cruise Control Servo

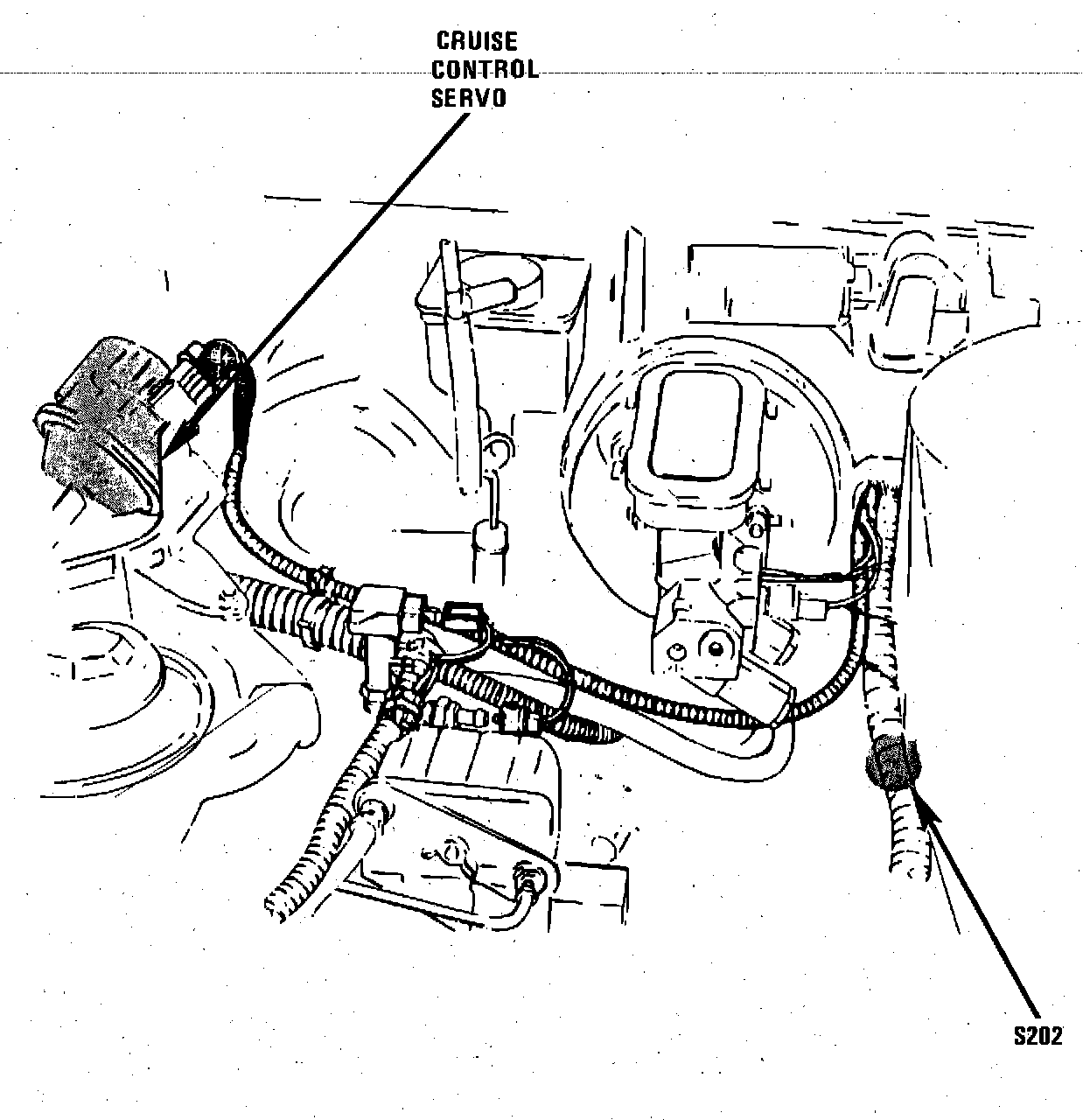

Cruise Control Servo

LH Side Of Diesel Engine Compartment.:




Center Rear Of Engine, Above Valve Cover

Applicable to: Electra
