Home >> Buick >> 1985 >> Century L4-151 2.5L VIN R TBI >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Locations

Computers and Control Systems: Locations

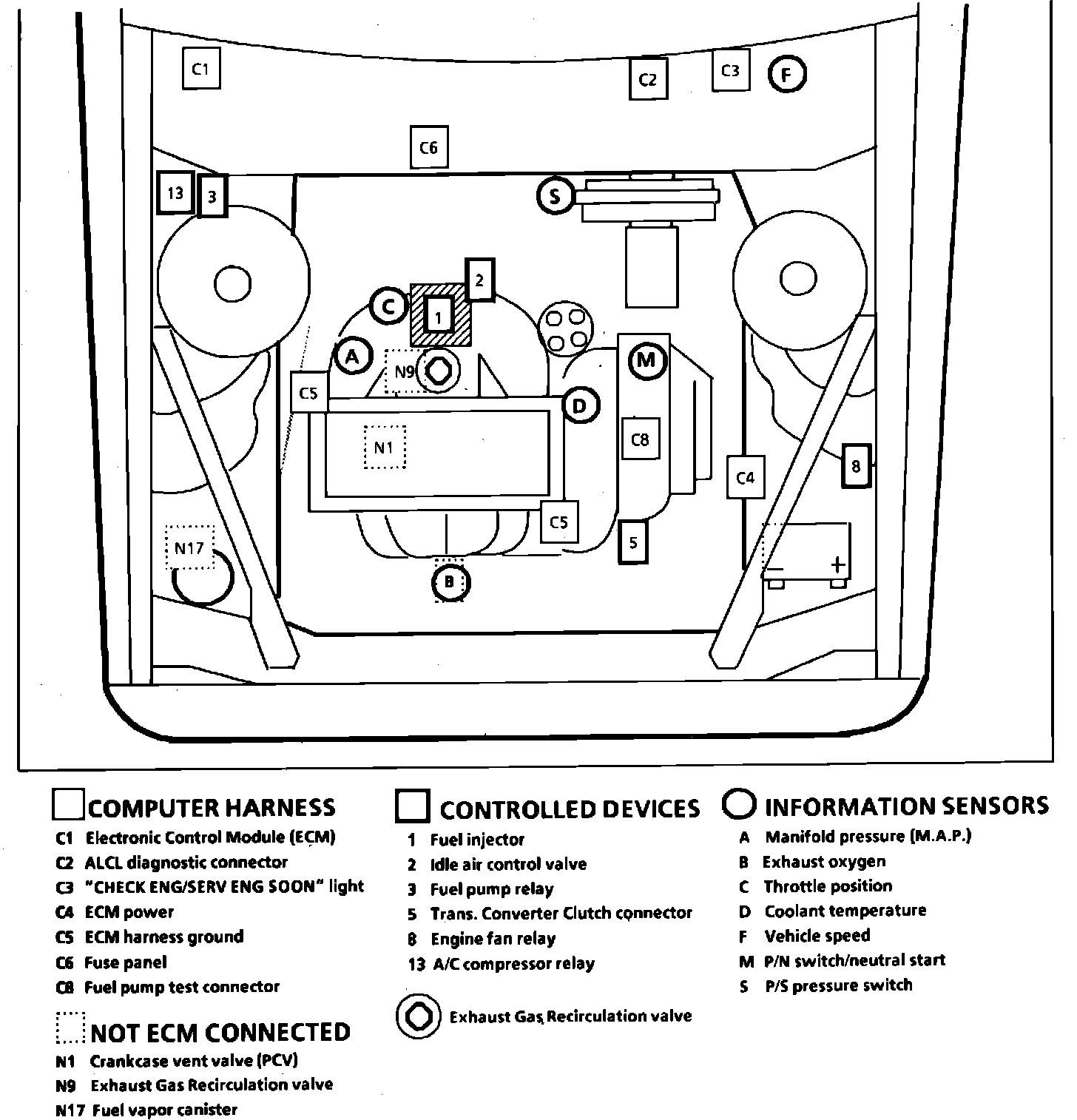

Fig. 15 Emission Component Location. 1985 Celebrity W/4-151/2.5L, TBI:
