Buick
>>
1985
>>
Century L4-151 2.5L VIN R TBI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Knock Sensor
>>
Locations
>>
Electronic Spark Control Module
Electronic Spark Control Module

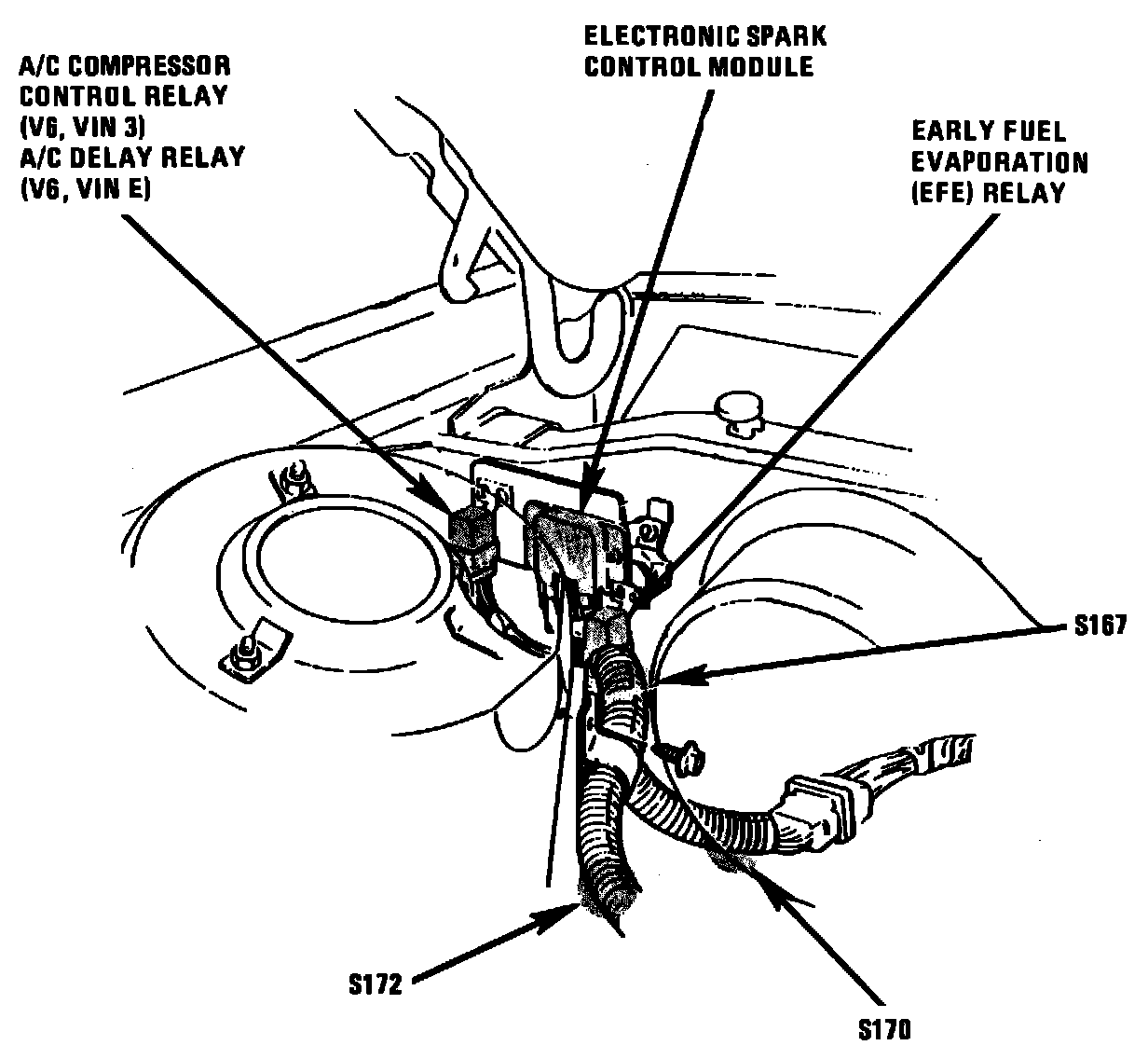

ELECTRONIC SPARK CONTROL MODULE
RH Side Of Engine Cowl.:
The Electronic Spark Control Module is located on the RH side of engine cowl.
