Home >> Buick >> 1983 >> Skylark L4-151 2.5L VIN R TBI >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications

System Specifications

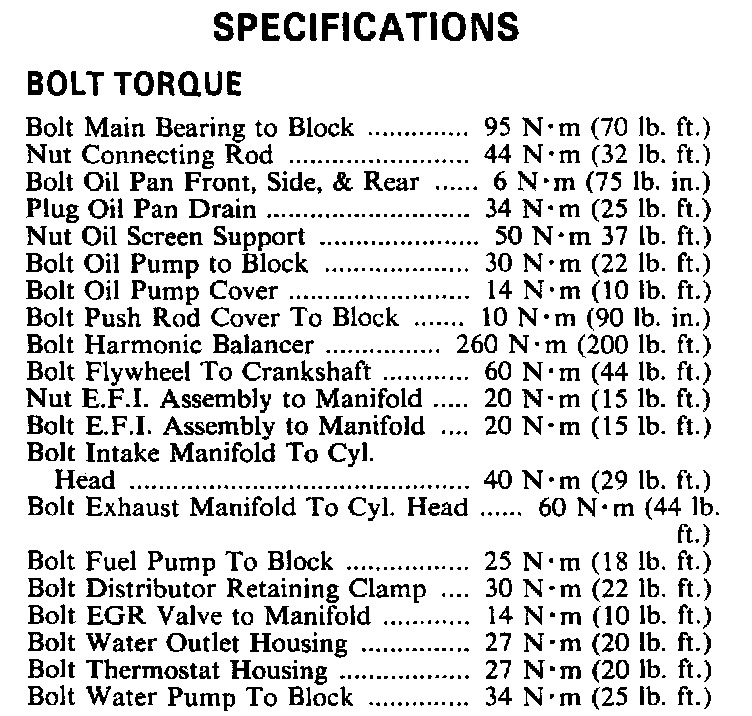

Torque Specifications:

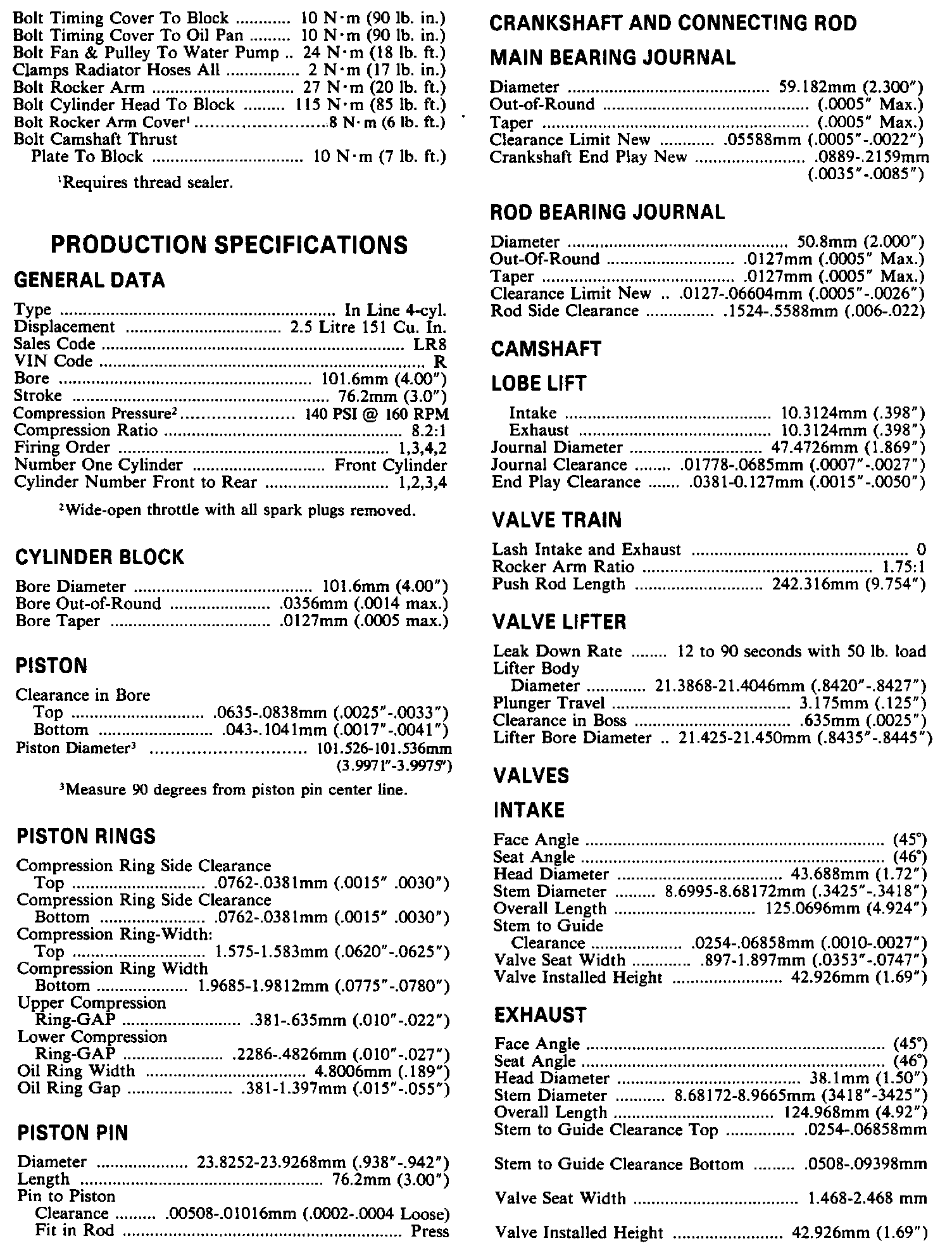

Continue. Torque & General Specifications:

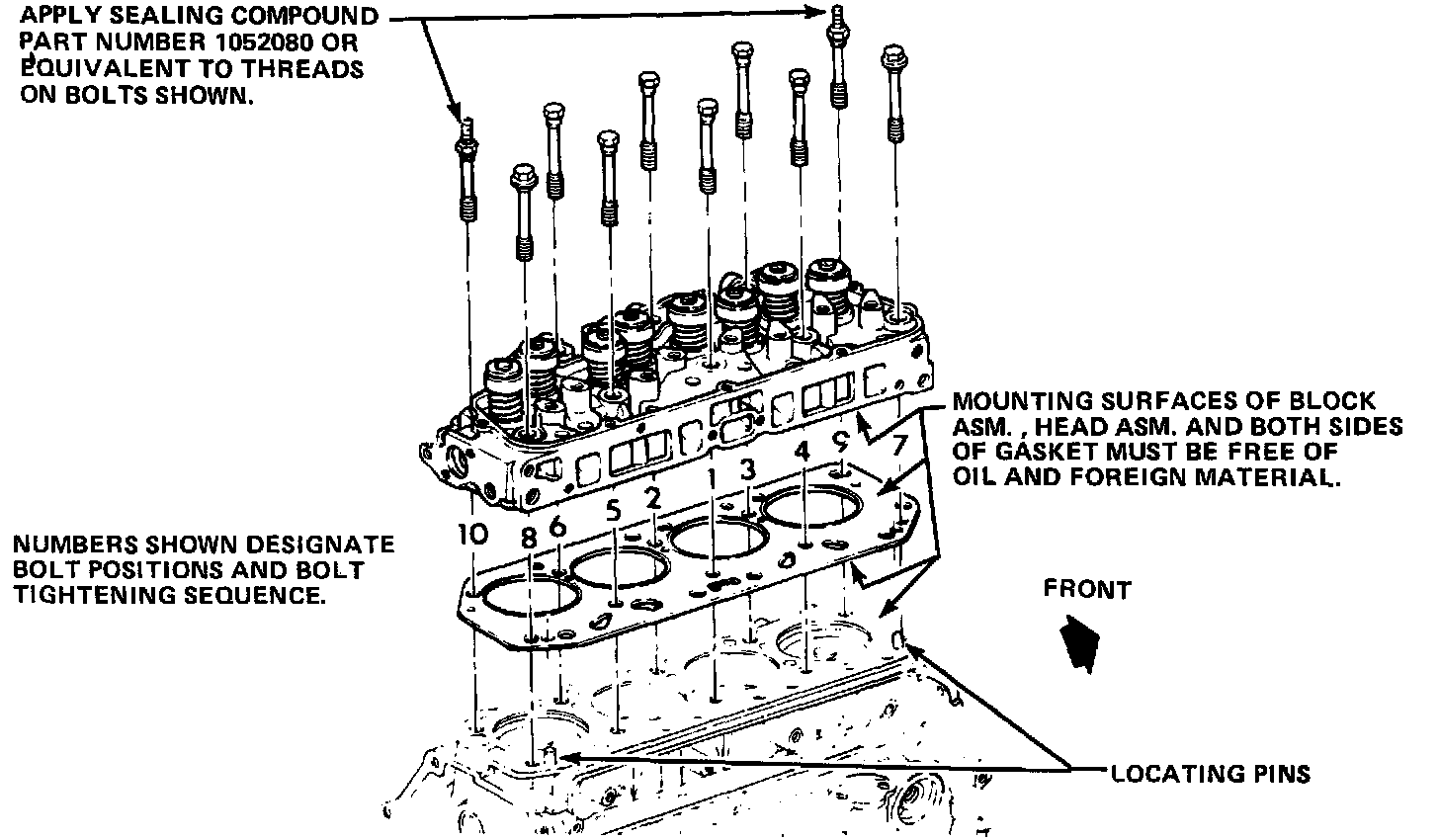

Cylinder Head Sequence:





Intake Manifold Sequence:
