Home >> Buick >> 1982 >> Skylark V6-173 2.8L VIN Z 2-bbl HP >> Repair and Diagnosis >> Diagrams >> Components >> Miscellaneous Components >> Distributor Pulse Input Shield

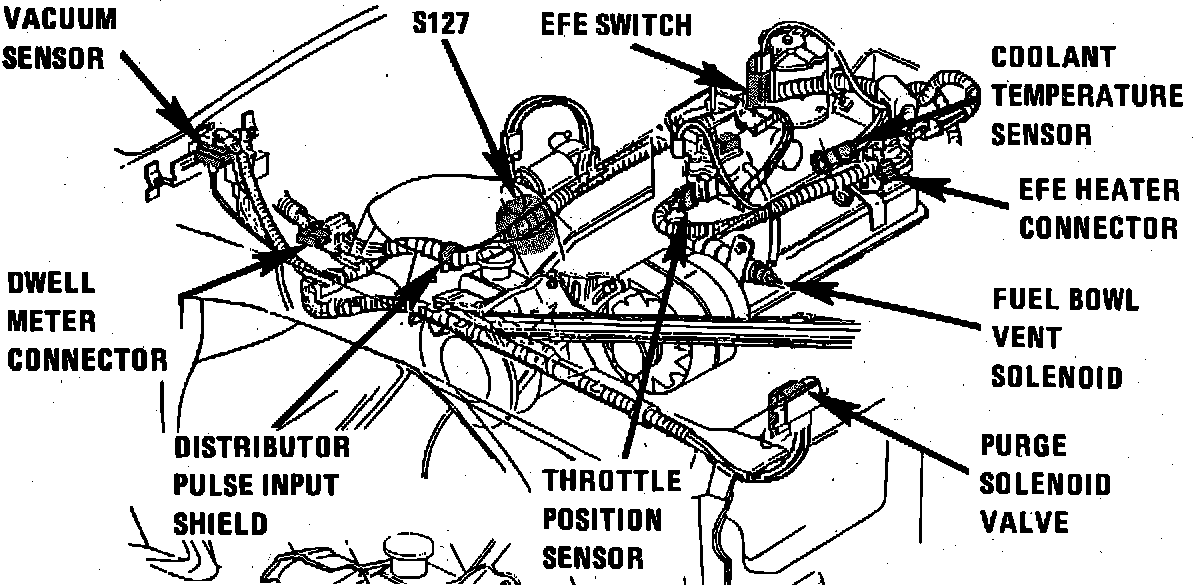

Distributor Pulse Input Shield

Front Of Engine.:




CCC Harness, Between Bulkhead Grommet and Distributor

Applicable to: Skylark w/V6 Engine
