Home >> Buick >> 1982 >> Skyhawk L4-112 1.8L VIN G 2-bbl >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Transmission Position Sensor/Switch >> Testing and Inspection

Transmission Position Sensor/Switch: Testing and Inspection

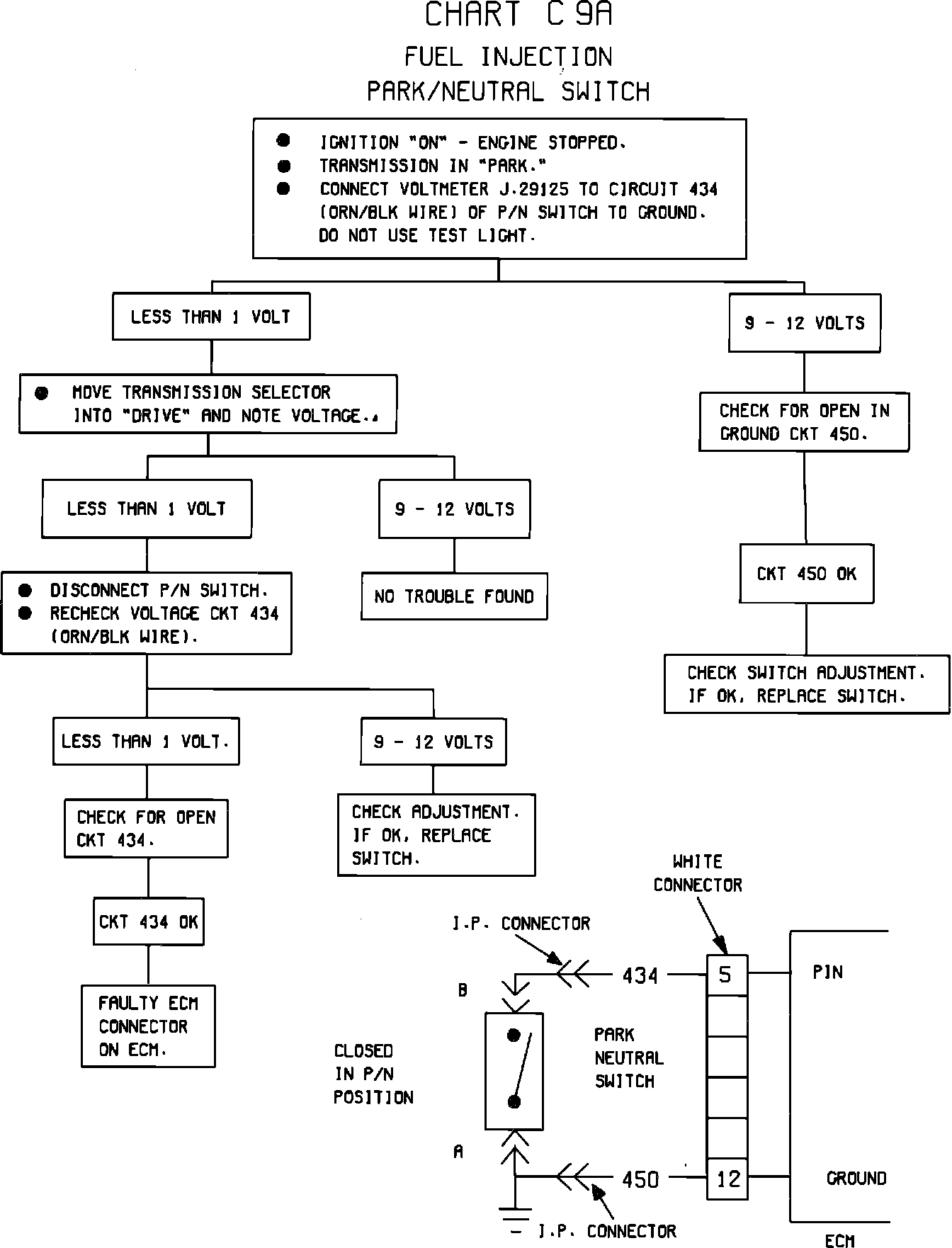

Fig. 36 Chart C-9A Park/Neutral Switch 1982-83:
