Performance Check - EST
Performance Check - EST

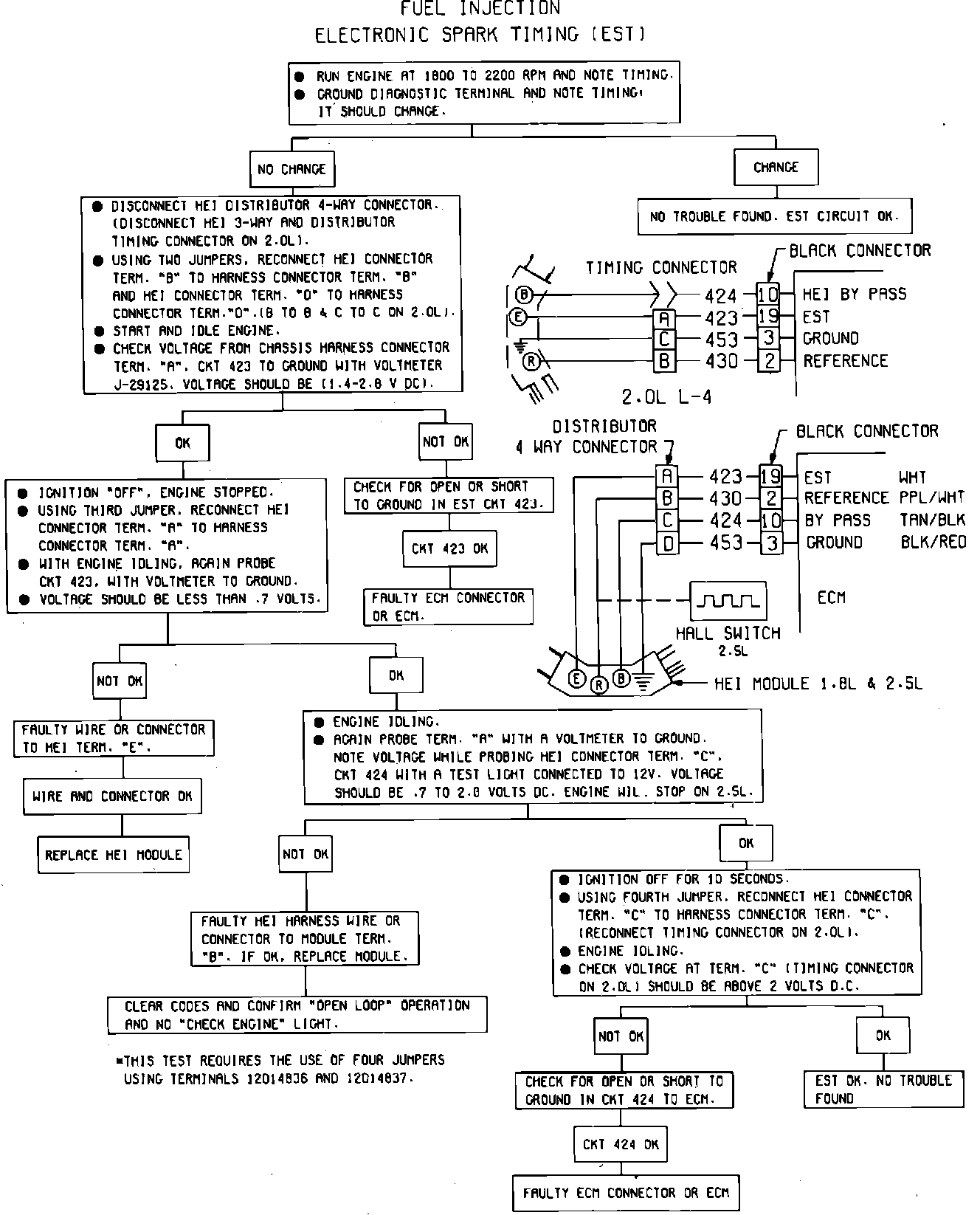

Fig.5b Code 42 chart. 4 cyl models with throttle body fuel Injection (TBI) (use this chart with HEI-EST ignition system diagnostic charts):
